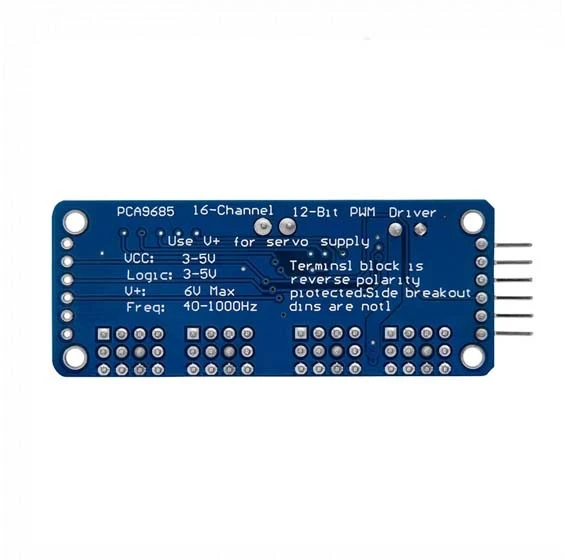

PCA9685 16 channel 12 bit PWM servo driver

• VCC Chip Supply: 3 - 5V DC
• Logic Signal Levels: 3 - 5V DC
• V+ Servo Supply: 6V DC Max
• Frequency: 40 – 1000Hz

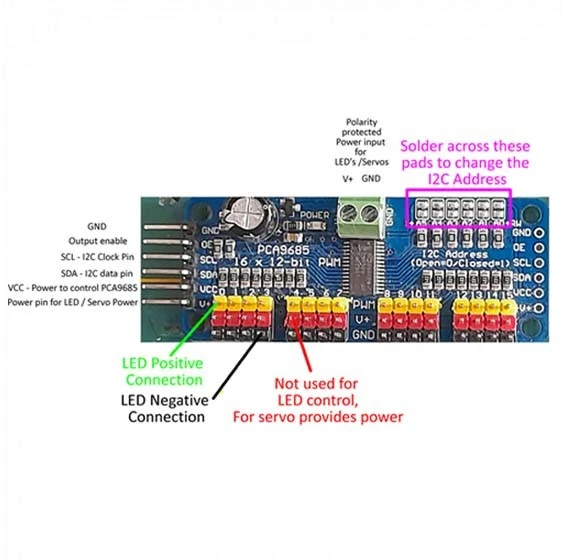

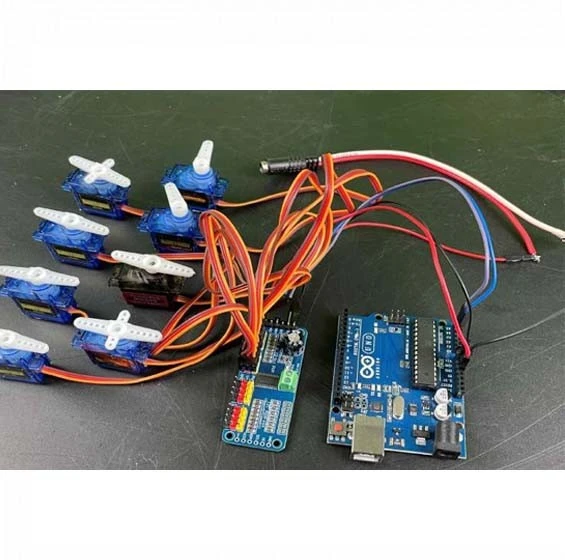

The 16-channel 12-bit PWM/Servo Driver, PCA9685, is an ideal module for precise control of multiple PWM outputs that are commonly used to control servos, LEDs, and other devices in applications such as robotics, automation, lighting, and servo motor control. In this project, we will use most of this module’s channels to control the Servo motors. At the same time, we will interact and learn all processes of controlling, interfacing, and coding this module so that you are well aware of the Unique use of this module.
