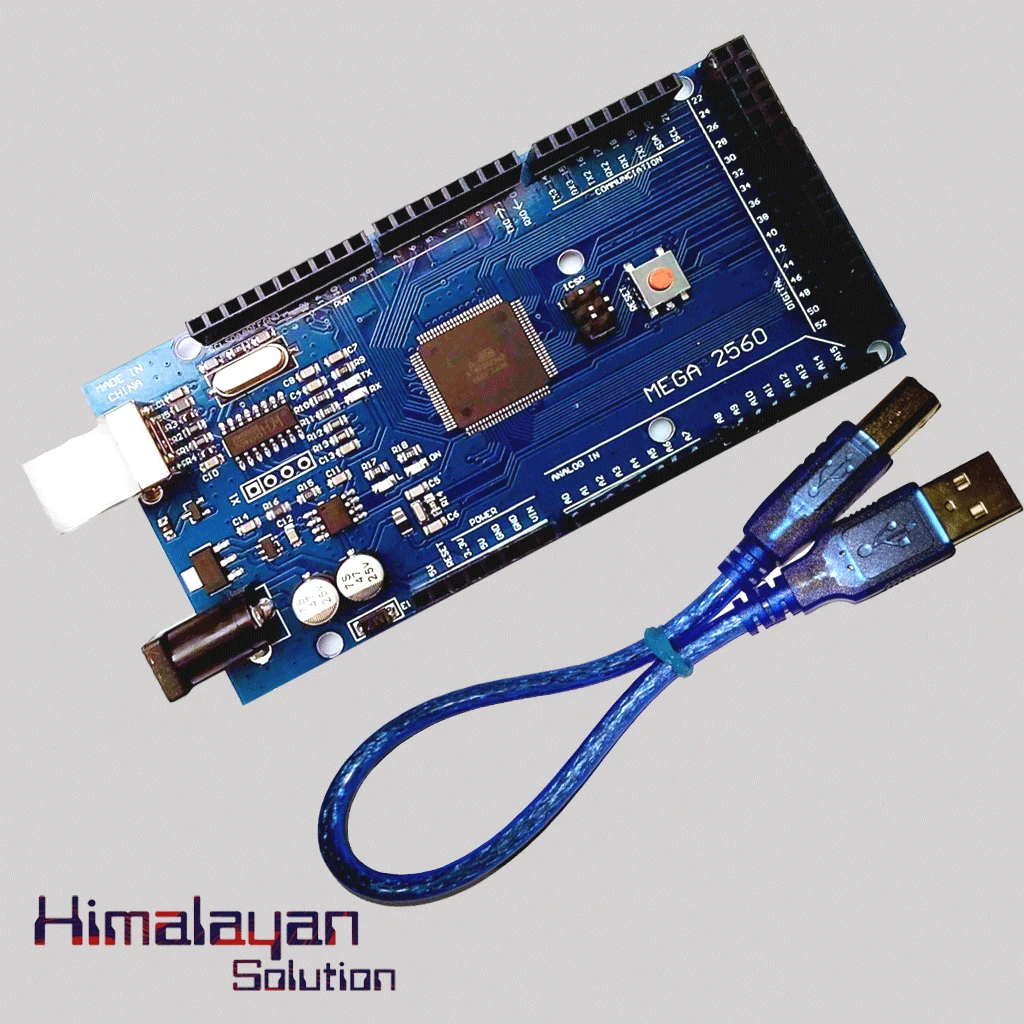

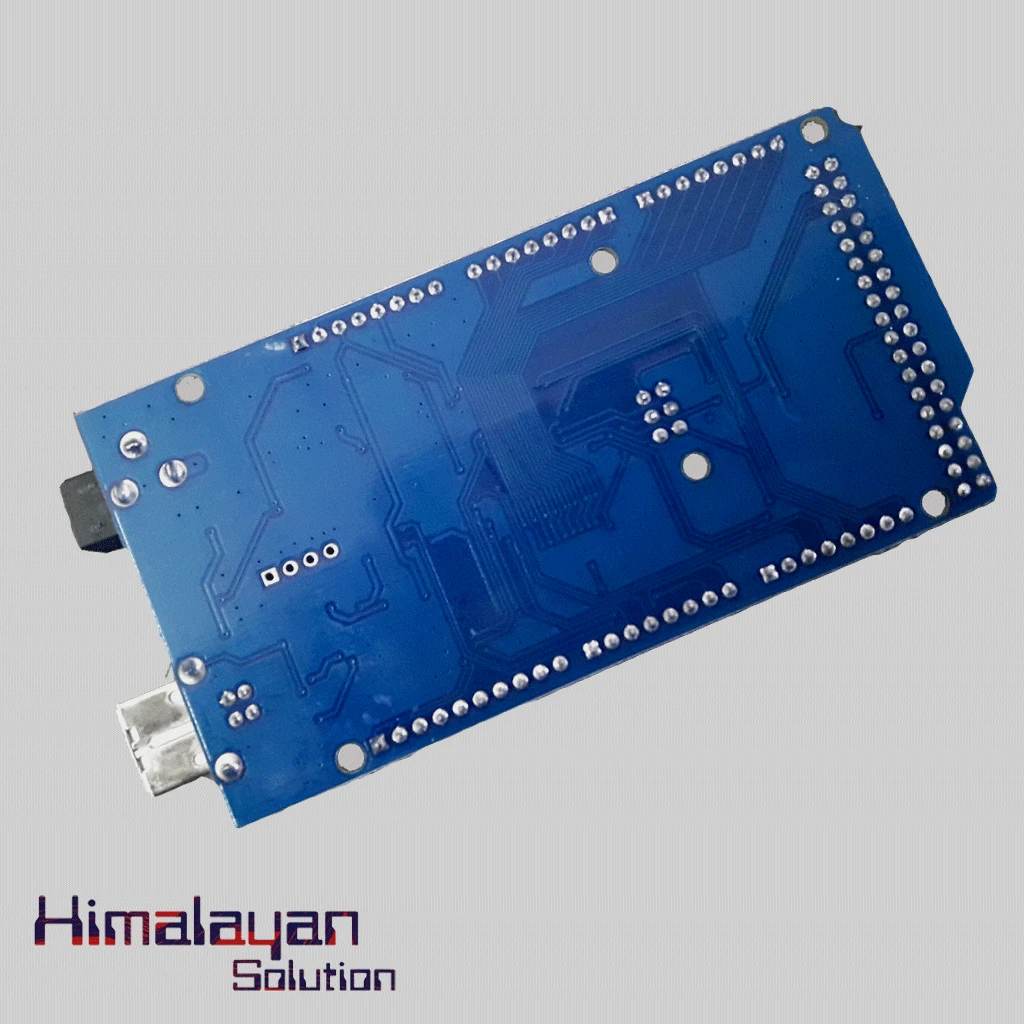

Arduino Mega 2560 Clone

0 /5.0 (0 reviews)
SKU HS011( Mega2560 microcontroller 84715090)

"The Arduino Mega 2560  is a open-source physical computing microcontroller board based on the ATmega2560. It includes  54 digital input/output pins where  14 can be used as PWM outputs , 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header,. Ard...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

"The Arduino Mega 2560  is a open-source physical computing microcontroller board based on the ATmega2560. It includes  54 digital input/output pins where  14 can be used as PWM outputs , 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header,. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP)The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.
The Mega 2560 R3 has an automatic reset software and  also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin.. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins. The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).
"


Specifications

13
Microcontroller
ATmega2560
Operating Voltage
5V
Input Voltage (Recommended)
7-12 V
Input Voltage (Limit)
6-20 V
Digital I/O Pins
54
Analog Input Pins
16
DC Current Per I/O Pin
20 mA
DC Current for 3.3V Pin
50 mA
Flash Memory
256 KB
SRAM
8 KB
EEPROM
4 KB
Clock Speed
16 MHz
LED Buit-in
13
