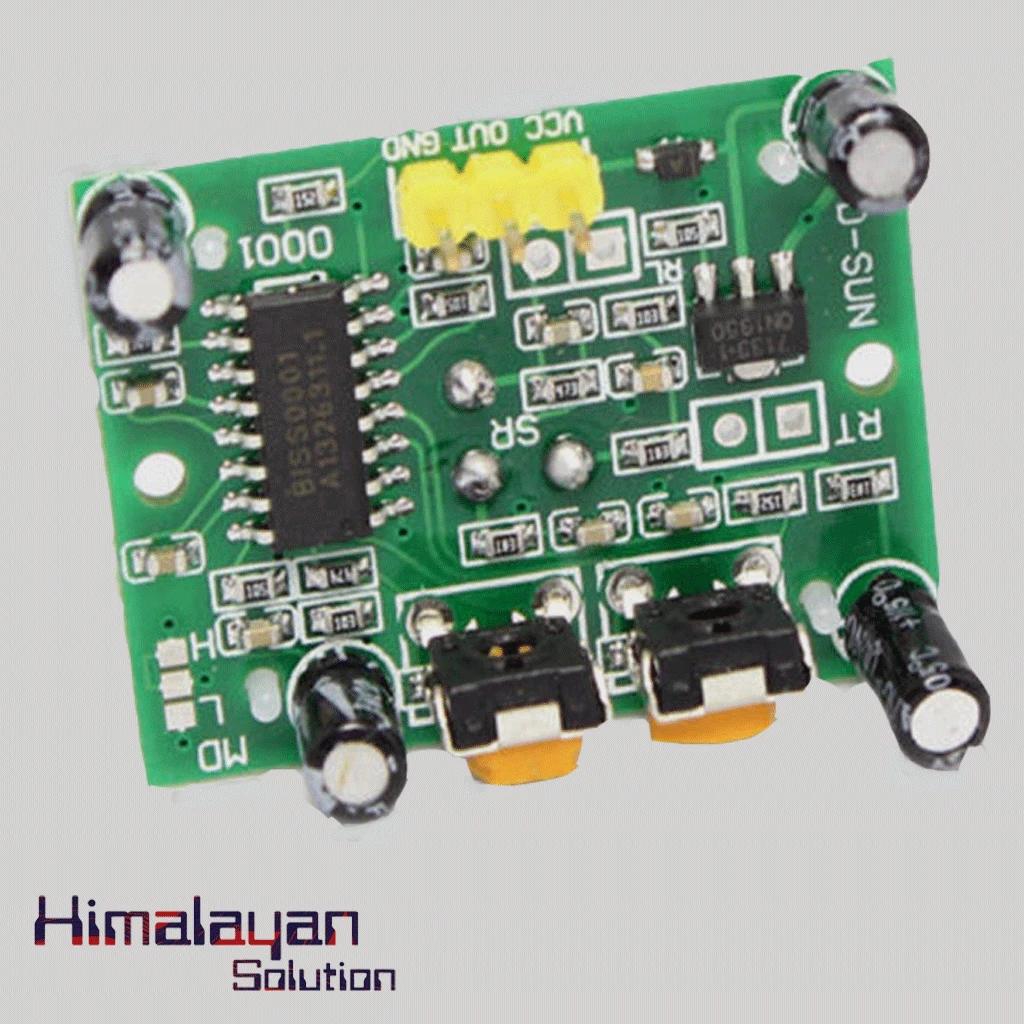

PIR Motion Sensor Detector Module HC SR501

0 /5.0 (0 reviews)
SKU HC-SR501( Hc SR501 pir sensor 90318000)

 Features : Infrared Sensor with Control Circuit Board The Sensitivity and Holding Time are adjustable. Blockade time: 2.5s (Default) Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M) Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Red...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

 Features :

  1. Infrared Sensor with Control Circuit Board
  2. The Sensitivity and Holding Time are adjustable.
  3. Blockade time: 2.5s (Default)
  4. Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
  5. Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).

Package Includes :

1 x PIR Motion Sensor Detector Module HC SR501

Specifications

11
Color
White + Green
Operating Voltage Range
DC 4.5-20V
Quiescent Current
<50Ua
Level Output
High 3.3 V /Low 0V
Delay Time
0.5-200S (Adjustable)
Block Time
&nbsp;2.5S (Default)
Operation Temperature
&nbsp;-15-+70 Degrees
Lens Size Sensor
23mm (Default)
Detection Angle&nbsp;
Approximately 120 Degrees
Range
Adjustable, up to 7m
SIze
&nbsp;32 mm X 24 mm
