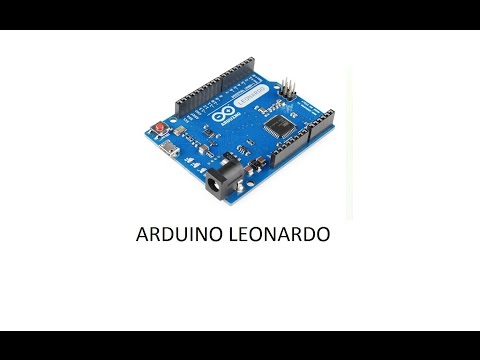

Arduino Leonardo

0 /5.0 (0 reviews)
SKU 23.20

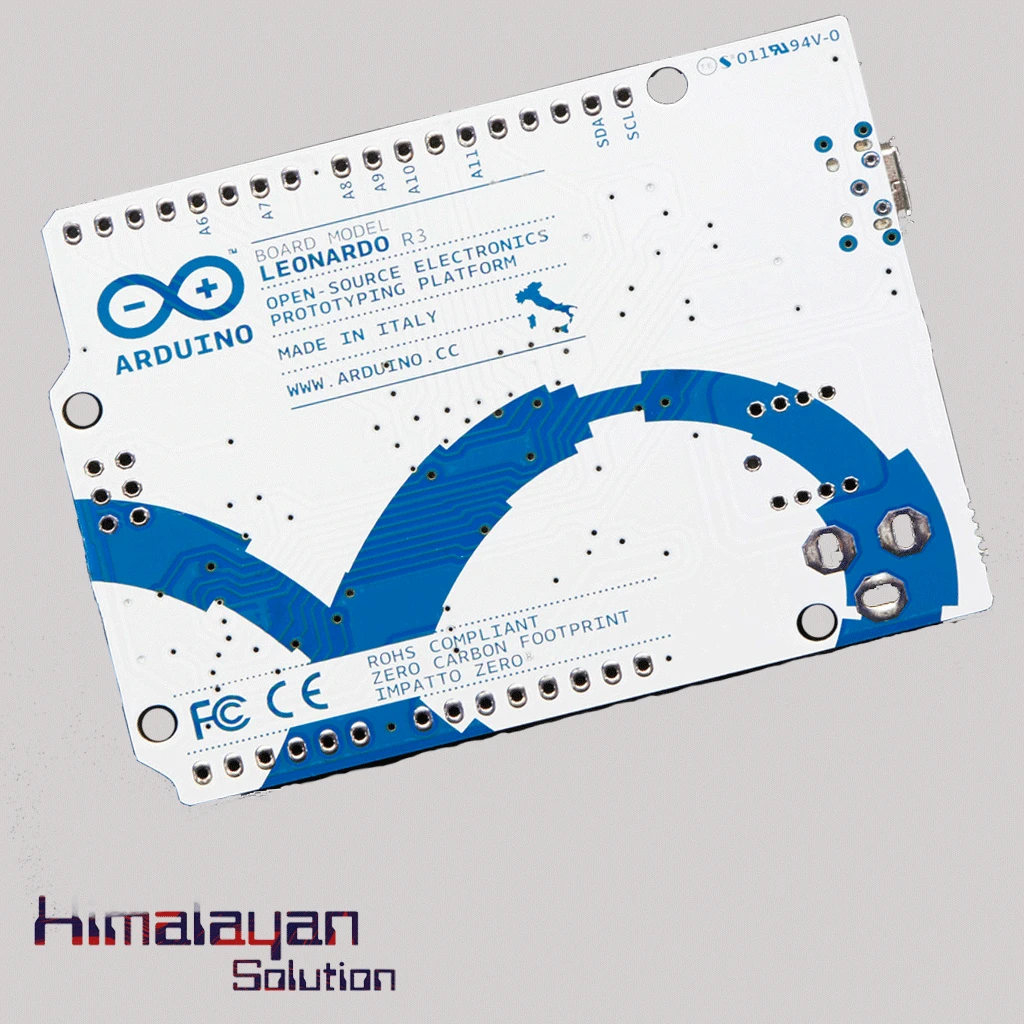

The Arduino Leonardo is a microcontroller board based on the ATmega32u4 that includes  20 digital input/output pins  where  7 can be used as PWM outputs and 12 as analog inputs , a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button.  We can simply connect it to a compute...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Arduino Leonardo is a microcontroller board based on the ATmega32u4 that includes  20 digital input/output pins  where  7 can be used as PWM outputs and 12 as analog inputs , a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button.  We can simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to operate . The Leonardo has built-in USB communication that eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard.   The drivers are  automatically installed plugging with an USB cable to the   PC. The software  can be found  in the official site .

Specifications

16
Microcontroller
ATmega32u4
Operating Voltage
5V
Input Voltage (Recommended)
7-12V
Input Voltage (Limits)
6-20V
Digital I/O Pins
20
PWM Channels
7
Analog Input Channels
12
DC Current Per I/O Pin
40 mA
DC Current for 3.3V Pin
50 mA
Flash Memory
32 KB (ATmega32u4)
SRAM
2.5 KB (ATmega32u4)
EEPROM
1 KB (ATmega32u4)
Clock Speed
16 MHz
Length
68.6 mm
Width
53.3 mm
Weight
20 g
