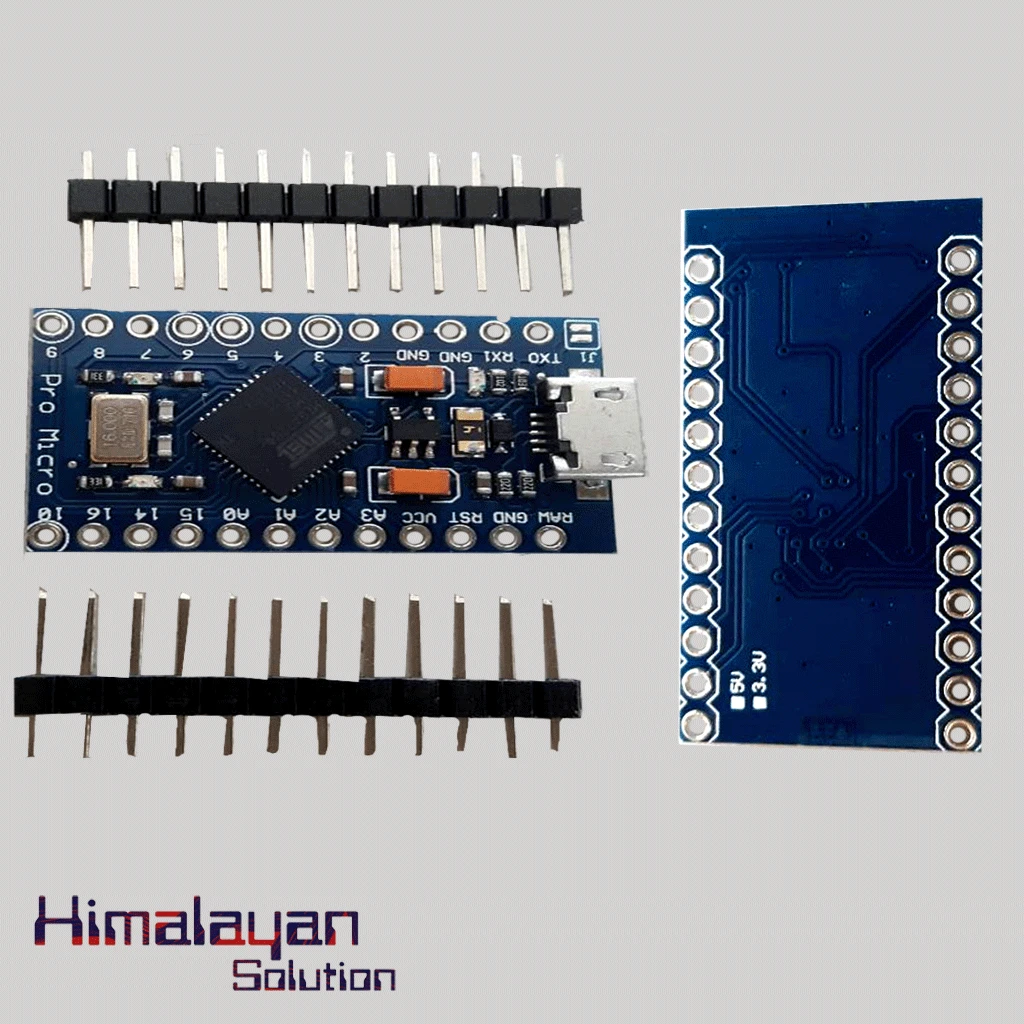

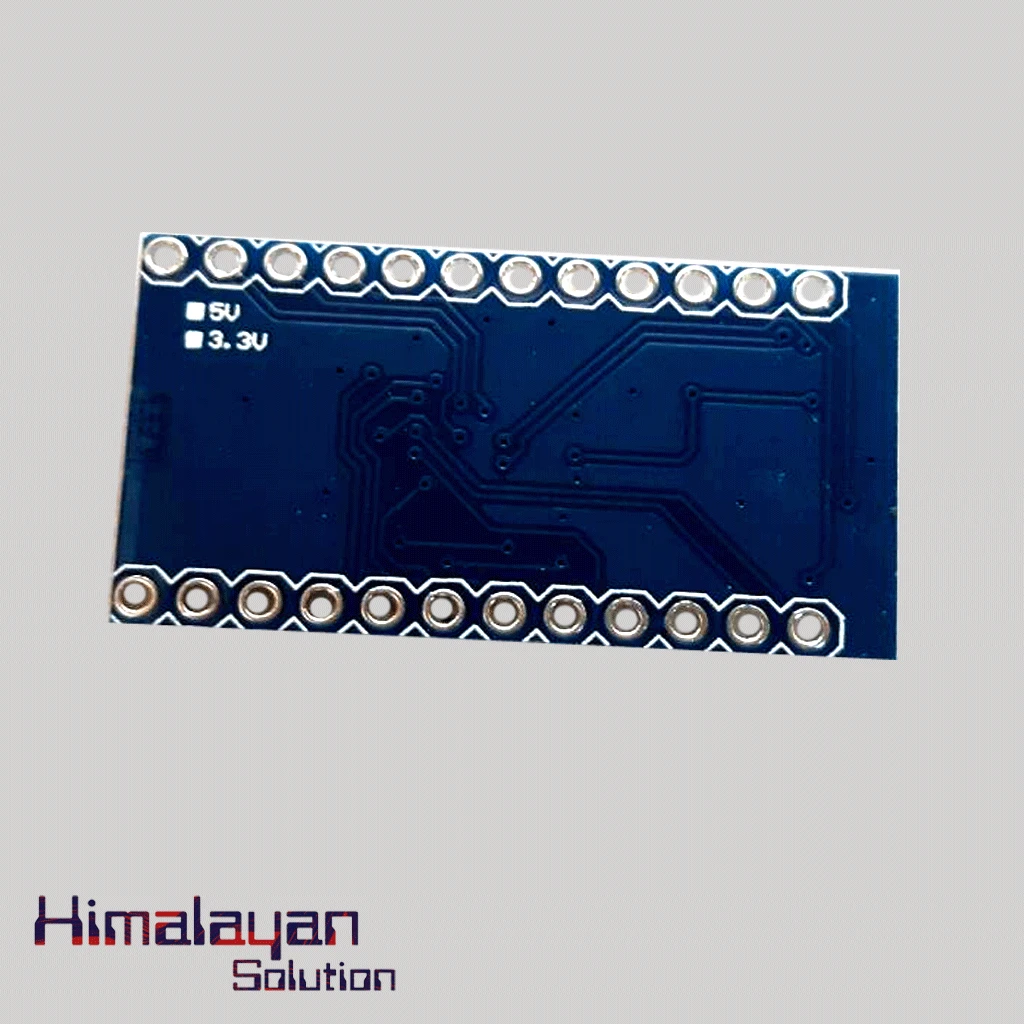

Arduino Pro Micro

0 /5.0 (0 reviews)
SKU HS029

Arduino Pro Micro Usb is an ATmega32U4 board  running at 5V/16MHz. It is the smallest Arduino –Compatible board. It has high speed PWM with programmable and resolution from 2-11bits.it is Supported under Arduino IDE v1.0.1. it can accept voltage up to 12VDC. It has USB connectivity on-board and on board power and statu...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

Arduino Pro Micro Usb is an ATmega32U4 board  running at 5V/16MHz. It is the smallest Arduino –Compatible board. It has high speed PWM with programmable and resolution from 2-11bits.it is Supported under Arduino IDE v1.0.1. it can accept voltage up to 12VDC. It has USB connectivity on-board and on board power and status LEDs.

Specifications

13
Microcontroller
ATMEGA32U4
RAW
  4V-16V
VCC
  3.3V at 500 mA
Digital I/O Pins
12
Analog Input Pins
4
Maximum Current for Chip
200mA
Maximum Current Per Pin
40mA
Flash Program Memory
32kB
EEPROM
  1kB
ADC
10-bit
PWM
8bit
Clock Speed
16MHz
Size
1.3×0.7″
