Servo Motor 35KG

0 /5.0 (0 reviews)
SKU 40

designed for robotics, RC vehicles, mechanical arms, and automation projects requiring strong torque and precision control. With a torque capacity of up to 35 kg·cm at 7.4V, this servo provides powerful movement suitable for heavy loads and demanding applications. Equipped with high-quality metal gears and dual ball be...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

designed for robotics, RC vehicles, mechanical arms, and automation projects requiring strong torque and precision control. With a torque capacity of up to 35 kg·cm at 7.4V, this servo provides powerful movement suitable for heavy loads and demanding applications.

Equipped with high-quality metal gears and dual ball bearings, it ensures durability, stability, and long service life. The servo operates on a wide voltage range (6V – 8.4V) and features digital control circuitry, which improves response time, holding power, and positioning accuracy compared to analog servos.

30 kg·cm @ 6.0V

35 kg·cm @ 7.4V


Operating Voltage: 6.0V – 8.4V (supports 2S LiPo battery)

Operating Speed:

0.16 sec/60° @ 6.0V

0.13 sec/60° @ 7.4V


Motor Type: Coreless digital motor

Gear Material: Full metal gears (high strength, wear-resistant)

Bearing: Dual ball bearings

Signal Type: PWM (Pulse Width Modulation)

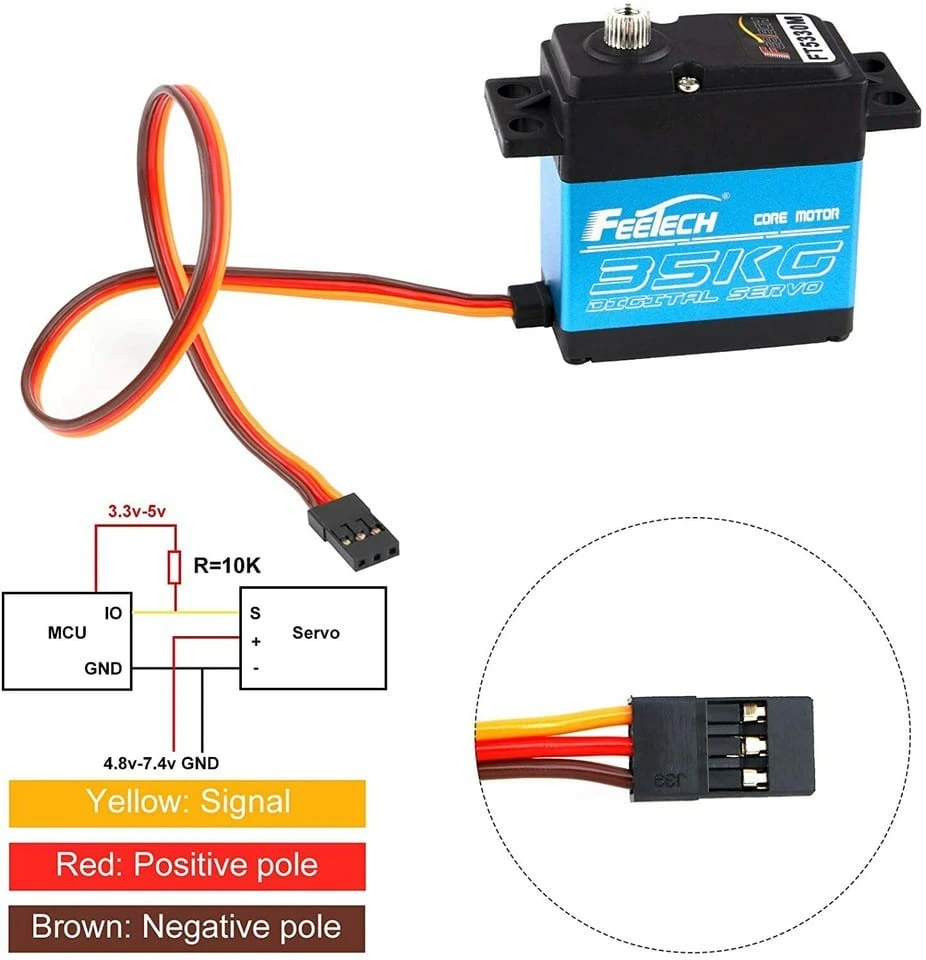

Connector: Standard 3-pin (PWM signal, VCC, GND)

Case Material: CNC aluminum alloy for better heat dissipation
