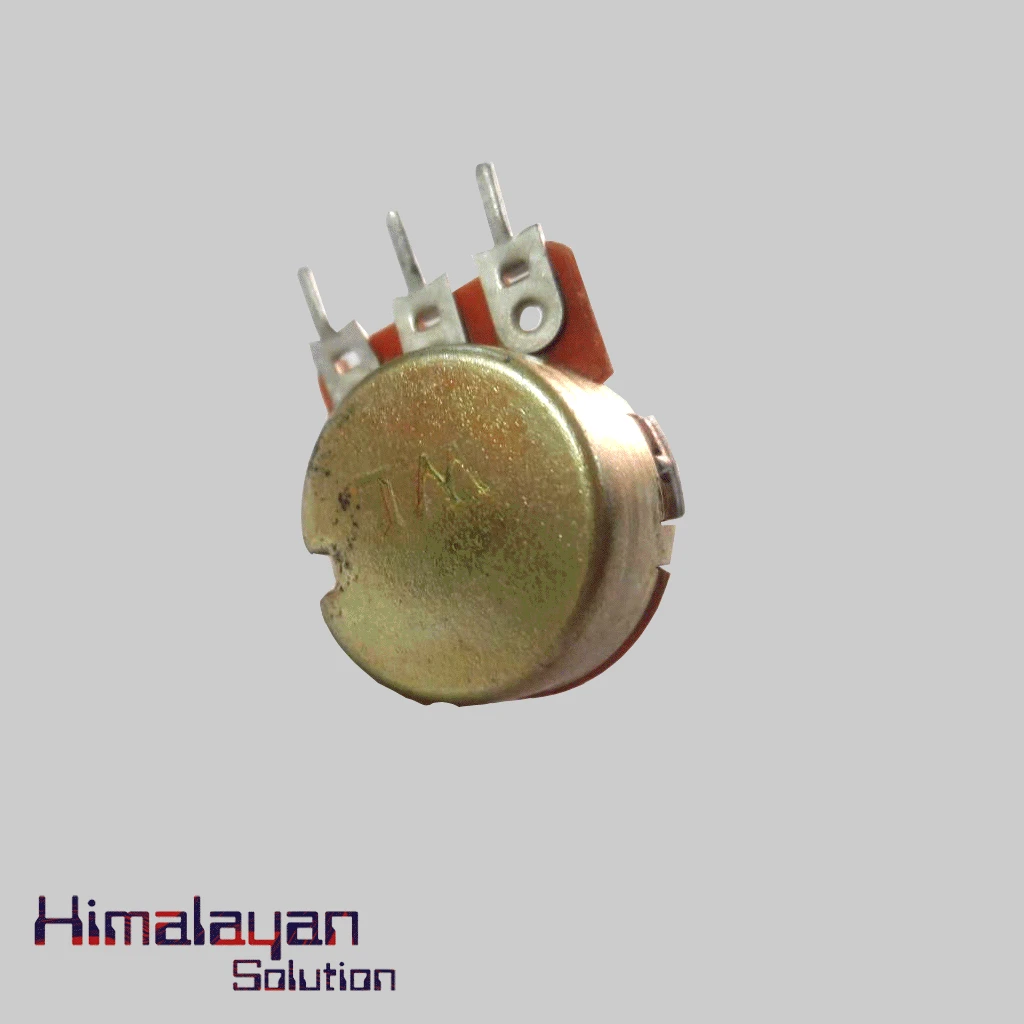

10K Potentiometer

0 /5.0 (0 reviews)
SKU HS411

10k potentiometer is a three terminal resistor with a sliding or rotating contact. It is standard type potentiometer with Knurled Shaft. The shaft has metal construction.  It can also be used as variable resistor or rheostat when only two terminals are use. This module is mostly used to control electrical devices such...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

10k potentiometer is a three terminal resistor with a sliding or rotating contact. It is standard type potentiometer with Knurled Shaft. The shaft has metal construction.  It can also be used as variable resistor or rheostat when only two terminals are use. This module is mostly used to control electrical devices such as volume controls on audio equipment’s and many more.

  1. Resistance: 10k Ω.
  2. Tolerance: 20%.
  3. Shaft Length: 15mm.

Specifications

15
Value
10K
Potentiometer Potential
500 Ohm~1M Ohm (+-20%)
Rotational life Of The Potentiometer
10000 Cycles
 Rotational Life For Joystick
100000 Cycles Min
Rated Power
1A at AC/DC 125V
Switch Circuit
S.P.S.T
Potentiometer Sliding Noise
Less than 100mV.
Insulation Voltage
More Than 100M Ohm At DC500V
Withstand Voltage
1 Minute At AC 500V
Rotational Travel
300 °
Static Stop Strength
90 oz-in
Rotational Torque
0.5 to 1.25 oz-in
Shaft Diameter
5.5mm
Arrow Shaft Length
10mm
Arrow Mounting Hole
7.5mm
