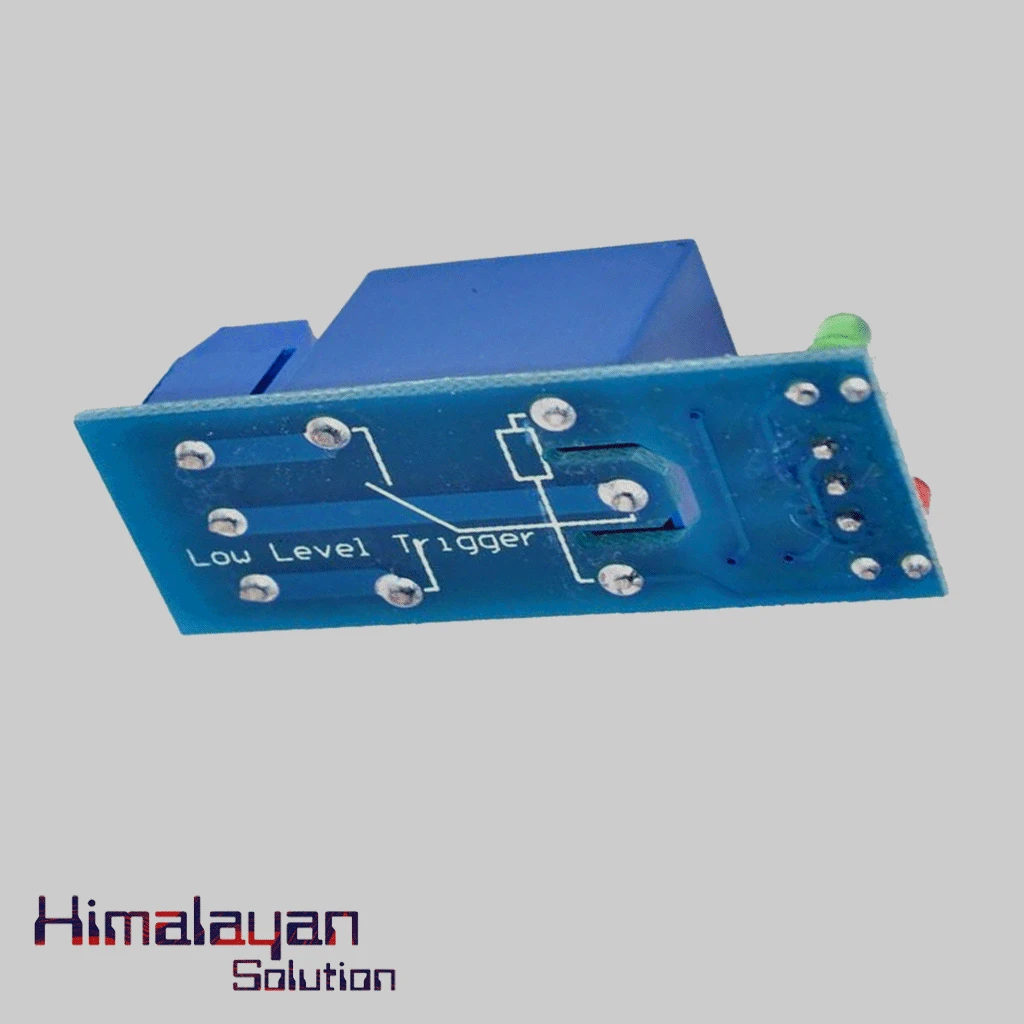

Single Channel Relay Module Compatible With Arduino

0 /5.0 (0 reviews)
SKU HS052( 85364900 Relay module Set)

Features 5V relay can be used as a microcontroller development board module can be used as a home appliance control 5 V-5v TTL control signals control DC or AC signal can control the 220V AC load the increase in transistor drive a relay coil, control pins high impedance the control pins with pull-down circuit, prevent...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

Features

  • 5V relay can be used as a microcontroller development board module can be used as a home appliance control
  • 5 V-5v TTL control signals
  • control DC or AC signal can control the 220V AC load
  • the increase in transistor drive a relay coil, control pins high impedance
  • the control pins with pull-down circuit, prevent floating relay malfunction
  • high quality, pin colors (black, yellow) were shipped
  • blue KF301 terminal control measure and easy to wire
  • 4 positioning screw hole diameter 3mm center hole spacing of 20mm x 40mm
  • compact circuit board

Package Includes:

  • 1 x 5V 10A 1 Channel Relay Module compatible with Arduino

The module is triggered, high trigger current less than 5mA, part of the 51 single-chip IO port output capability is weak, pull or increase the drive capability of the circuit.

Specifications

7
Operating Voltage
5 V
Max. Switching Voltage
250VAC/30VDC
Max. Switching Current
10A
Trigger Current
5mA
No of Channel
1
Weight
15g
Size
17 x 43 x 18 mm
