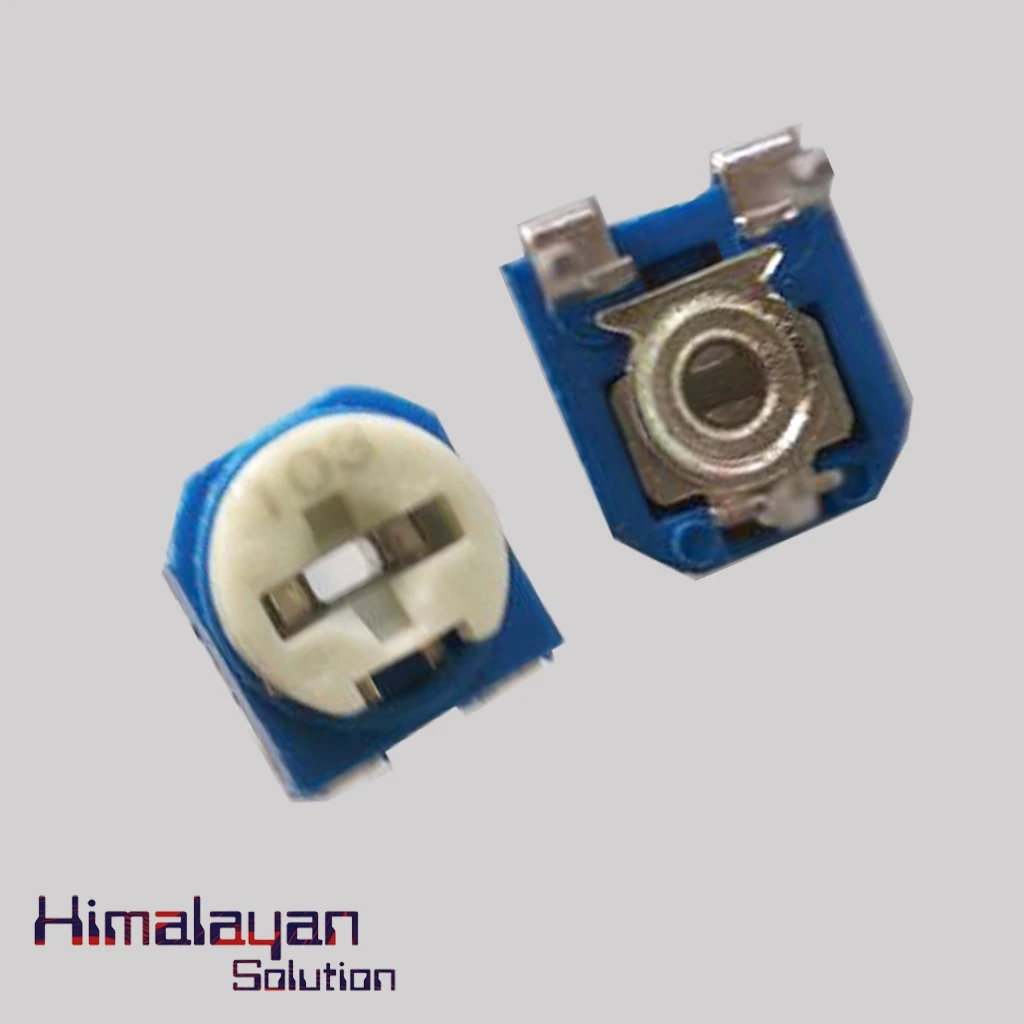

10K Preset

0 /5.0 (0 reviews)
SKU HS201

Preset 10k ω (ohm) variable resistor are the device used in electronics where adjustment must be made during manufacturing or servicing which can be adjusted from minimum to maximum value within a single turn which consist of three terminal pins and provides fixed value of resistance that block or resist the flow of el...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

Preset 10k ω (ohm) variable resistor are the device used in electronics where adjustment must be made during manufacturing or servicing which can be adjusted from minimum to maximum value within a single turn which consist of three terminal pins and provides fixed value of resistance that block or resist the flow of electrical current around the circuit are used to control electrical device such as volume controls and audio equipment.

Specifications

11
Track Resistance
10Kohm
No. of Turns
1
Resistance Tolerance
± 10%
Temperature Coefficient
± 100ppm/°C
Potentiometer Mounting
Through Hole
Adjustment Type
Top
Contact Resistance Variation
+ -0.01
Full Power Rating Temperature
85°C
Lead Diameter
0.5mm
Operating Temperature Range
-55°C to +125°C
Resistor Element Material
Variable Rotary Cermet
