The WH148 Single Link 15mm Potentiometer Kit includes 18 rotary potentiometers with resistance values ranging from 1KΩ to 1MΩ (2 pieces of each). Featuring a power rating of 200 mW, a maximum voltage of 200 V, and a temperature range of -10°C to +100°C, these potentiometers are ideal for DIY electronics, audio equipment, and tuning applications. The kit also comes with knobs, nuts, gaskets, and a plastic storage box for easy organization. Constructed from durable metal and carbon film, they provide smooth and reliable operation.

The WH148 Single Link 15mm Potentiometer Kit is a versatile and durable assortment, ideal for use in a range of DIY electronics and tuning applications. Here's a quick summary of its key features and components:

Key Specifications:

• Power Rating: 200 mW (0.2 W)
• Maximum Voltage: 200 V
• Resistance Tolerance: ±20%
• Temperature Range: -10°C to +100°C
• Base Diameter: 16.5 mm
• Base Depth: 8.5 mm
• Shaft Diameter: 6 mm
• Shaft Length: 16 mm (including threaded portion)
• Thread Length: Approx. 6 mm
• Pin Pitch: 5 mm (standard through-hole or solder)
• Adjustment Type: Top adjustment with rotary motion
• Shaft Type: Knurled for better grip

Potentiometer Values Included:

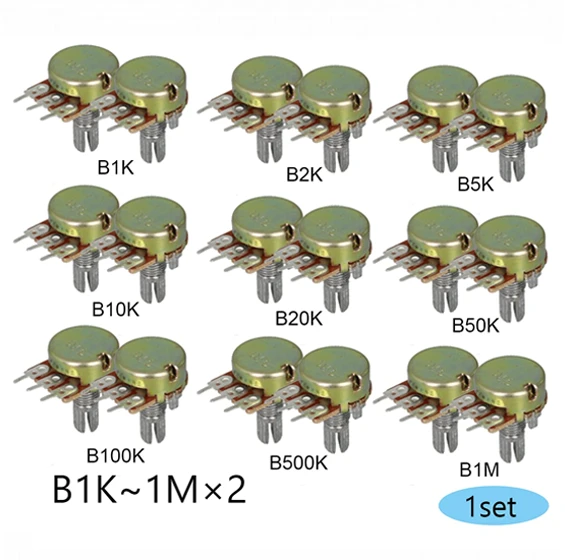

• 1KΩ, 2KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ, 500KΩ, 1MΩ (2 pieces of each)

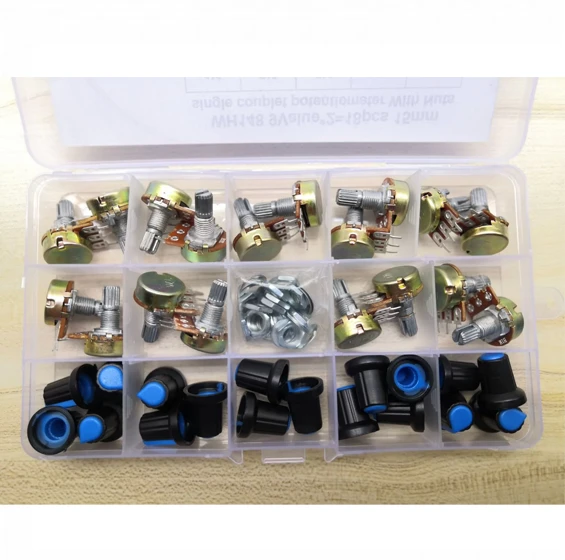

Packaging and Accessories:

• Knobs: 18 pieces (one for each potentiometer)
• Nuts and Gaskets: 18 each, for proper mounting
• Package Dimensions: 3.9 x 3.43 x 1.1 inches
• Package Weight: 4.44 ounces

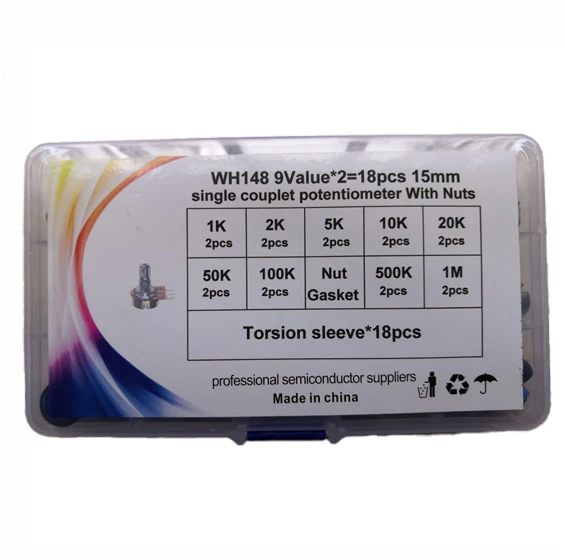

• Storage: Includes a plastic storage box for organization

Construction:

• Material: Metal and carbon film, ensuring wear resistance and durability
• Application: Suitable for volume control, fan control, and other DIY projects, often used in radios, audio equipment, and tape recorders.

Benefits:

• Durability: High-quality construction ensures smooth operation for long-lasting performance.
• Compact Design: Ideal for small electronics, with a wide temperature range and high voltage tolerance.
• Variety of Resistance Values: Perfect for experimentation and fine-tuning in various electronics projects.

This kit is highly flexible for audio or power adjustment applications and is well-suited for prototyping and DIY electronics enthusiasts.
