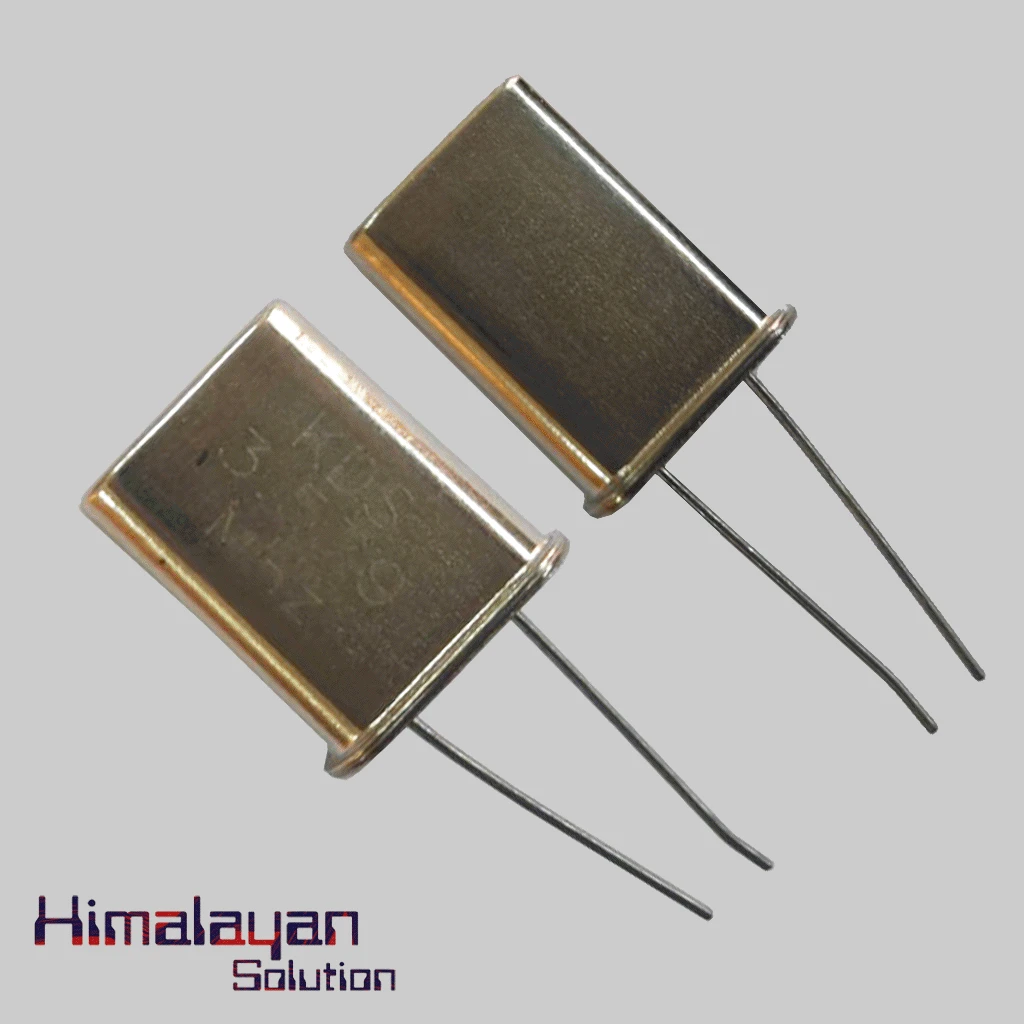

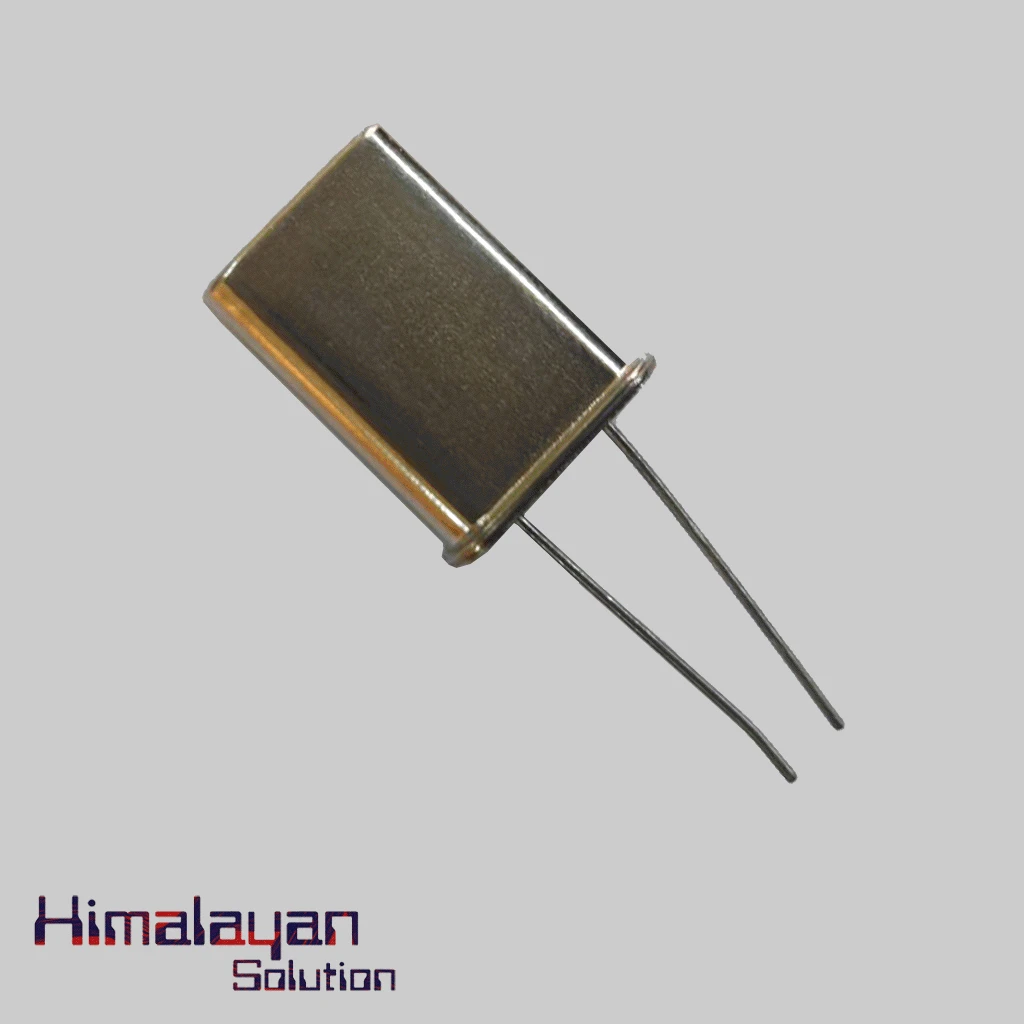

3.579 Mhz Crystal Oscillator

0 /5.0 (0 reviews)
SKU HS371

The 3.579MHZ Crystal Oscillator is an oscillator that provides clock pulses of 3.579MHz frequency. It is commonly used to keep track of time, to provide a stable clock signal for digital integrated circuits and to stabilize frequencies for radio transmitters and receivers. It is applicable many applications due to its...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 3.579MHZ Crystal Oscillator is an oscillator that provides clock pulses of 3.579MHz frequency. It is commonly used to keep track of time, to provide a stable clock signal for digital integrated circuits and to stabilize frequencies for radio transmitters and receivers. It is applicable many applications due to its inexpensive function, for example DTMF generators

Specifications

7
Name
3.579MHZ Crystal Oscillator
Frequency
3.579 MHz
Frequency Calibration Tolerance
±30ppm @ 25°C
Freq. Stability Tolerance
±50ppm from -10° to +60°C
Operating Temperature
-20°C to +70°C
Load Capacitance
30pF
Frequency Ageing
±5 ppm/yr
