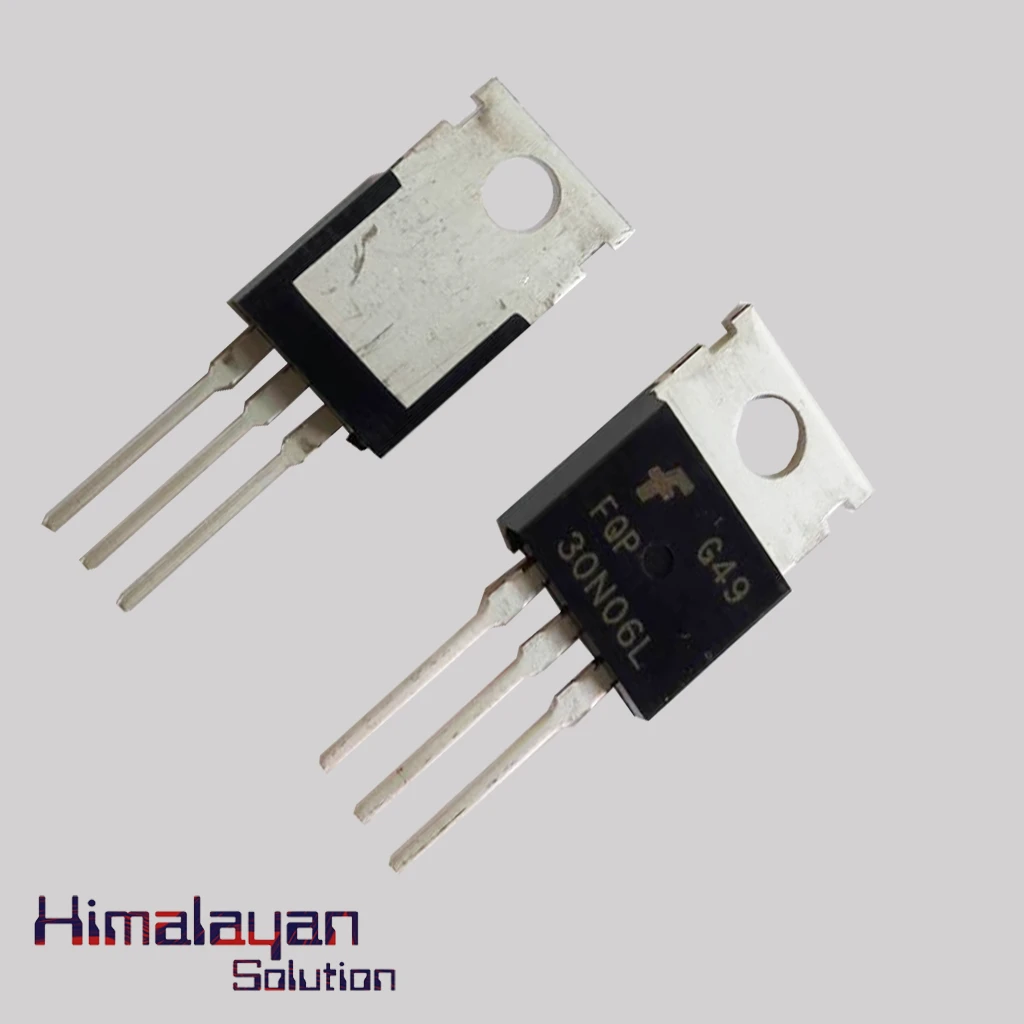

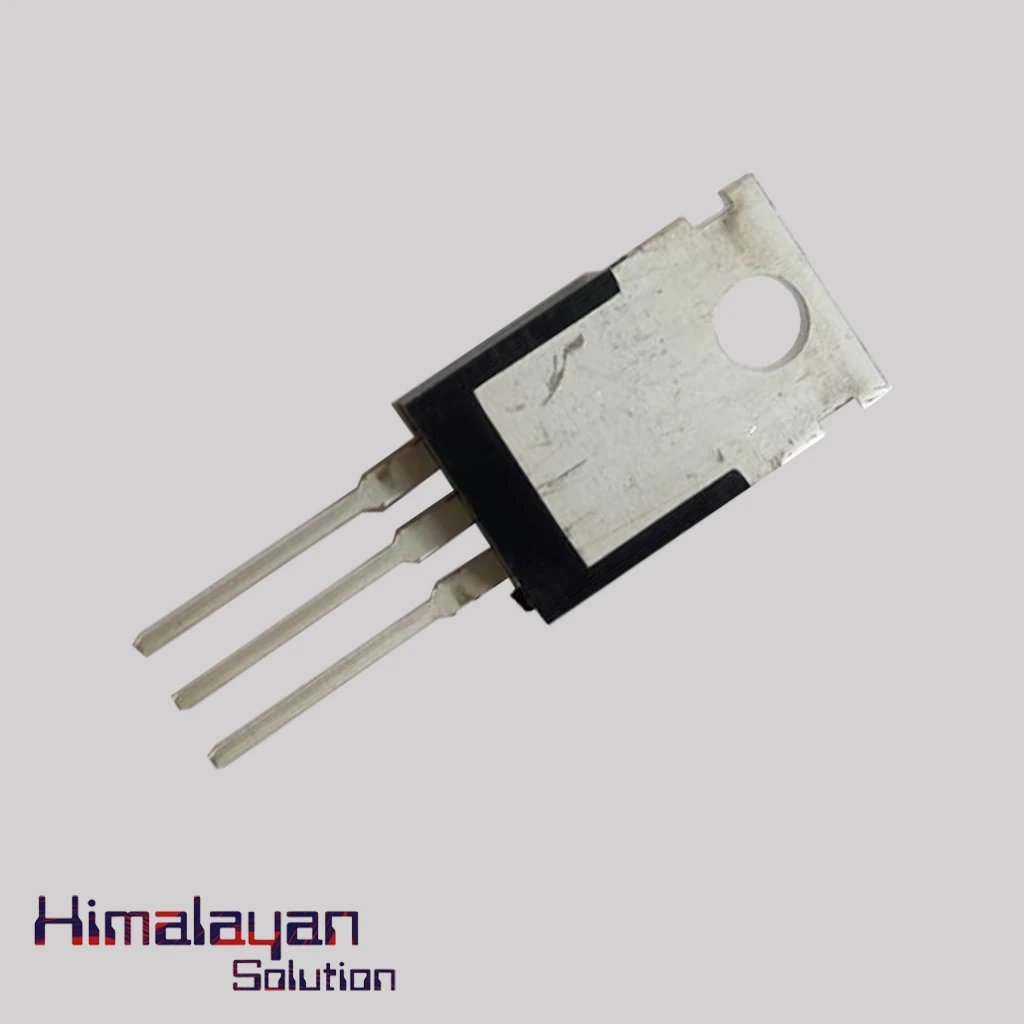

30N06L IC

0 /5.0 (0 reviews)
SKU HS326

The 30N06L IC is mostly used to minimize on state resistance. It provides superior switching performance. It is suited for low voltage application like automotive, DC converters etc.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 30N06L IC is mostly used to minimize on state resistance. It provides superior switching performance. It is suited for low voltage application like automotive, DC converters etc.

Specifications

15
Mounting Style
Through Hole
Number Of Channels
1 Channel
Transistor Polarity
N-Channel
Vds - Drain-Source Breakdown Voltage
60 V
Id - Continuous Drain Current
32 A
Rds On - Drain-Source Resistance
27 mOhms
Vgs - Gate-Source Voltage
20 V
Operating Temperature
- 55 C to + 175 C
Configuration
Single
Channel Mode
Enhancement
Fall Time
110 ns
Pd - Power Dissipation
79 W
Rise Time
210 ns
Typical Turn-Off Delay Time
60 ns
Typical Turn-On Delay Time
15 ns
