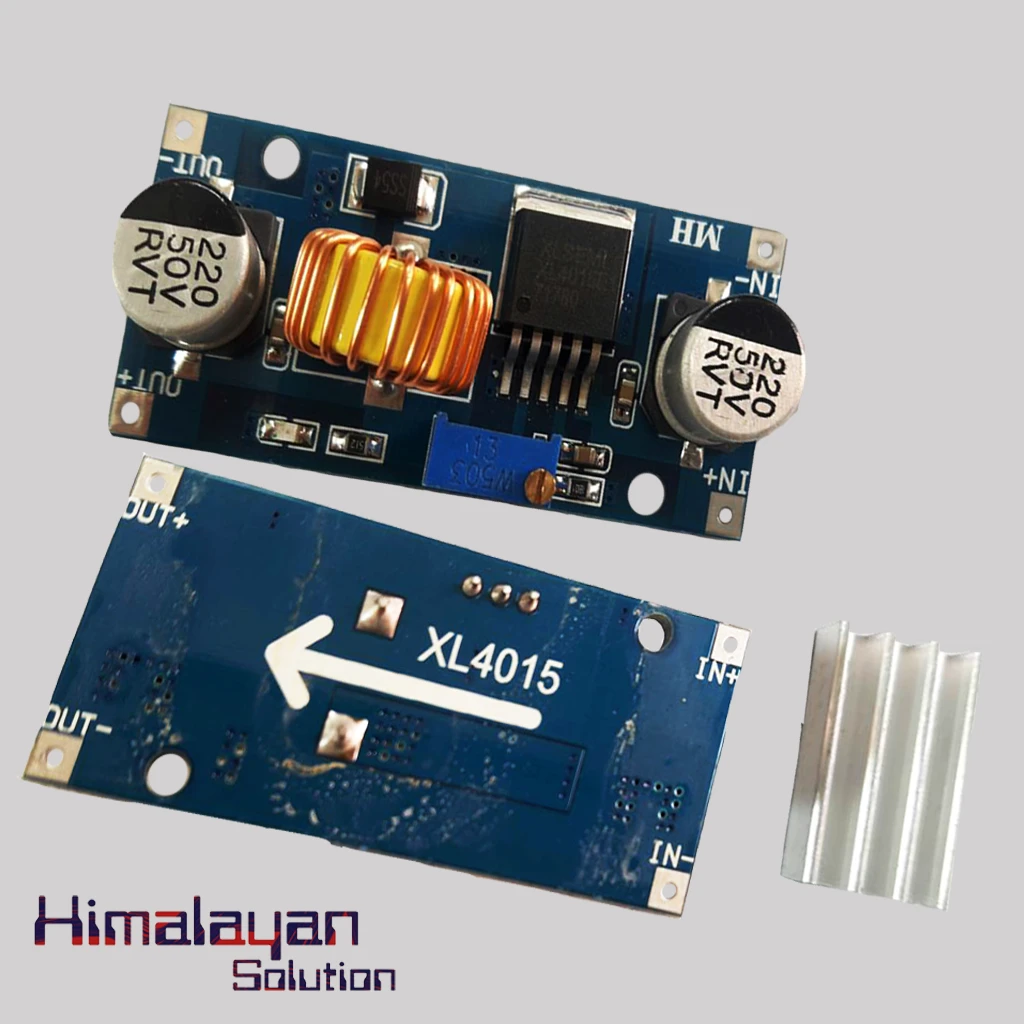

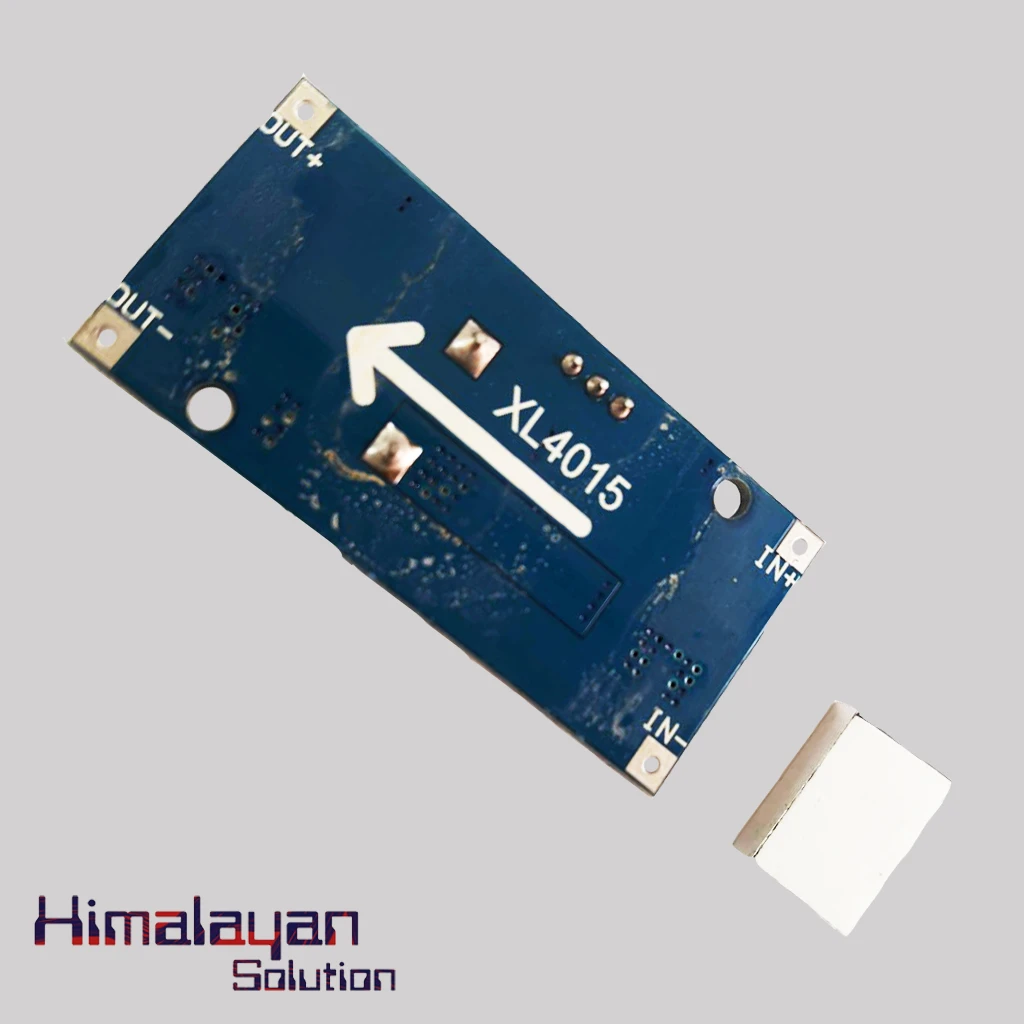

5A Buck Module With Heat Shink

0 /5.0 (0 reviews)
SKU HS479((Step down buck module 8536500)

The 5Amp Buck Module with Heat sink is a 180 KHz fixed frequency PWM buck (step-down) module. It is capable of driving a 0 to 5A (max) adjustable load with high efficiency, low ripple and excellent line and load regulation. It is also used as step-down modules with over current protection capabilities. The DC/DC buck m...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 5Amp Buck Module with Heat sink is a 180 KHz fixed frequency PWM buck (step-down) module. It is capable of driving a 0 to 5A (max) adjustable load with high efficiency, low ripple and excellent line and load regulation. It is also used as step-down modules with over current protection capabilities. The DC/DC buck module has applications where the input voltage is higher than output voltage, such as battery power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV,portable instrument power supply,telecom/networking equipment, 24V vehicle notebook power supply, industrial equipment buck and many more. We provide this module with heat sink.

Specifications

11
Name
5Amp Buck Module With Heat sink
Input Voltage Range
4~36VDC
Output Voltage Range
1.25 to 36VDC Adjustable
Output Current
0 to 5A
High Efficiency
up to 96%
Output Power
75W
Fixed Switching Frequency
180KHz
Thermal Shutdown Function
Yes
Current Limit Function
Yes
Output Short Protection Function
Yes
Input Reverse Polarity Protection
None (If Required,You Can Attach High Current Diode In Series With The Input)
