5Amp Buck Module

0 /5.0 (0 reviews)
SKU HS 1500((Step down buck module 8536500)

This product is a 180 kHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

This product is a 180 kHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation.

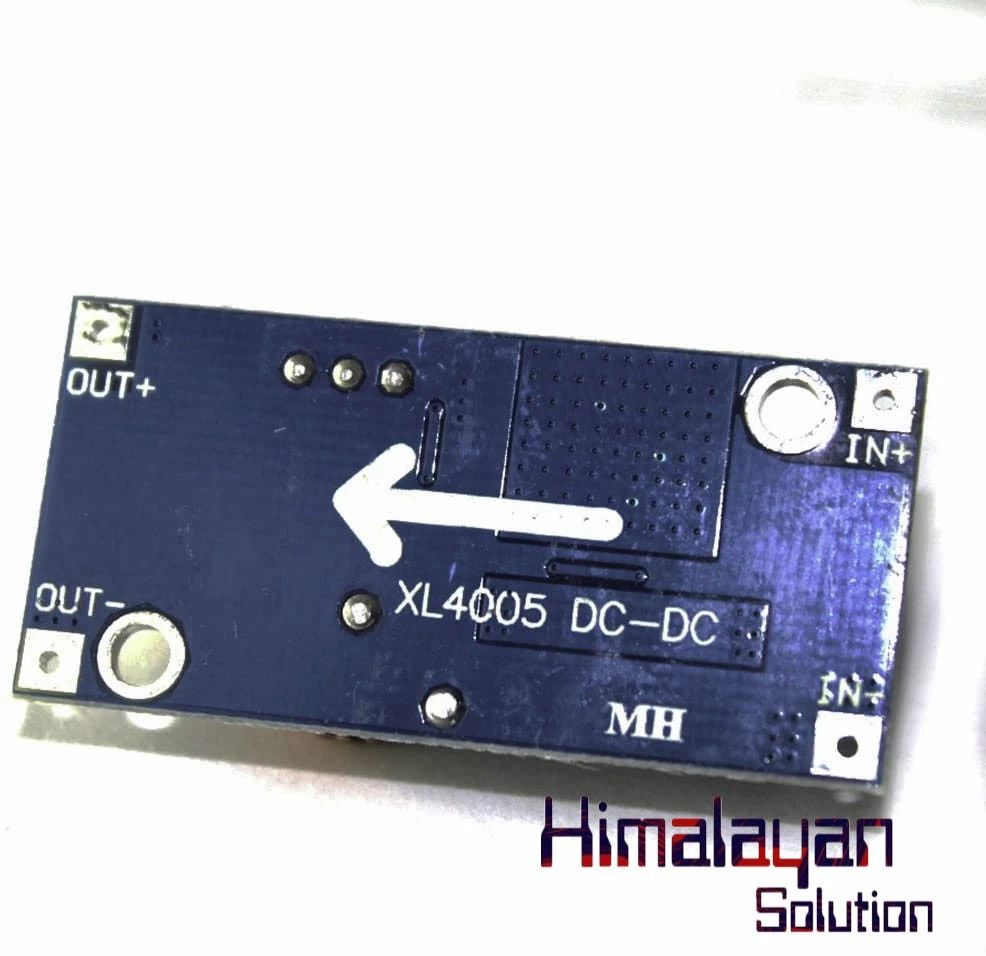

The XL4005 is a 300KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation. It includes internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an overcurrent protection function is built inside. When the short circuit protection function happens, the operation frequency will be reduced from 300KHz to 60KHz.

Specifications

4
Input voltage range
5-36VDC
Output voltage range
1.25-32VDC adjustable
Output current
0-5A
Current
80mA @5V,typical30mA
