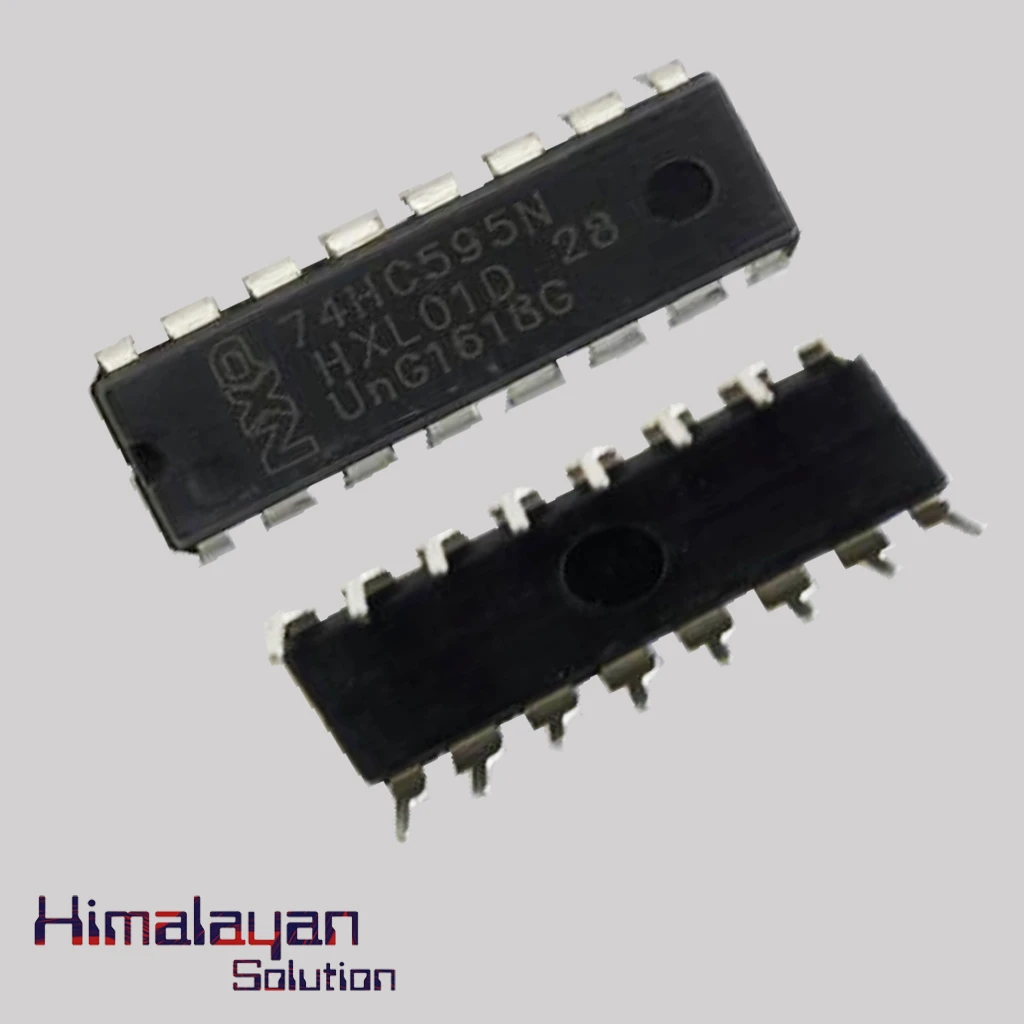

74HC595 IC

0 /5.0 (0 reviews)
SKU HS297

 The 74HC595 IC has 8 bit serial input with 8 bit serial or parallel output. IT ha storage register with 3 state outputs. It is used in serial to parallel data conversion, remote control holding register, network switches, led display and many more. The shift register clock and the storage register clock are positive e...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

 The 74HC595 IC has 8 bit serial input with 8 bit serial or parallel output. IT ha storage register with 3 state outputs. It is used in serial to parallel data conversion, remote control holding register, network switches, led display and many more. The shift register clock and the storage register clock are positive edge triggered. The shift register is always one clock pulse ahead of the storage register is both the clock are connected together.

Specifications

15
Manufacturer
NXP
Package / Case
16-DIP (0.300\", 7.62mm)
Output Type
Standard
Number Of Elements
1
Voltage Supply
2 V ~ 6 V
Mounting Type
Through Hole
Number Of Circuits
1
Propagation Delay Time
 285ns
Logic Type
Shift Register
Function
Serial To Parallel
Number Of Bits Per Element
8
Operating Temperature
-40°C ~ 125°C
Counting Sequence
Serial To Serial/Parallel
Output Type
3-State
Operating Supply Voltage
2 V to 6 V
