The Ai-Thinker NodeMCU-VC-02-KIT is a development board for offline speech recognition, featuring the US516P6 voice chip for advanced voice control without cloud dependency. It includes a CH340C serial to USB chip for debugging, supports multiple interfaces (I2C, DAC, PWM), and runs on a 32-bit RISC core at 240 MHz with DSP and FPU capabilities. The module offers 242 KB SRAM, 2 MB Flash, dual-channel DAC output, and comes with an RTOS SDK for easy development, ideal for smart home devices, appliances, toys, and more.

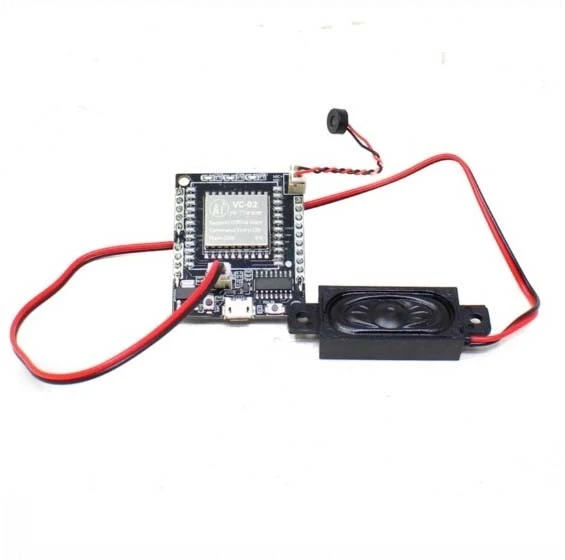

The Ai-Thinker NodeMCU-VC-02-KIT Offline Speech Recognition Module is a development board tailored for the VC-02 module, designed to provide efficient and cost-effective offline speech recognition capabilities. Here is a breakdown of its key aspects and features:

Description:

1. Offline Speech Recognition: This module is optimized for offline speech recognition using the US516P6 voice chip by Unisound, known for advanced algorithms in speech recognition technology.
2. Debugging and USB Upgrade Interface: Incorporates a CH340C serial port to USB chip, which offers a basic debugging interface and supports USB firmware upgrades.
3. Flexible Audio Configuration: Offers versatile options for audio input and output configurations.
4. RTOS SDK Availability: Provides a complete RTOS (Real-Time Operating System) SDK for developing custom control protocols, simplifying software development for various applications.
5. Status Indicators: Equipped with a wake-up light and cooling lamp for indicating status and assisting with debugging and control functions.

Features:

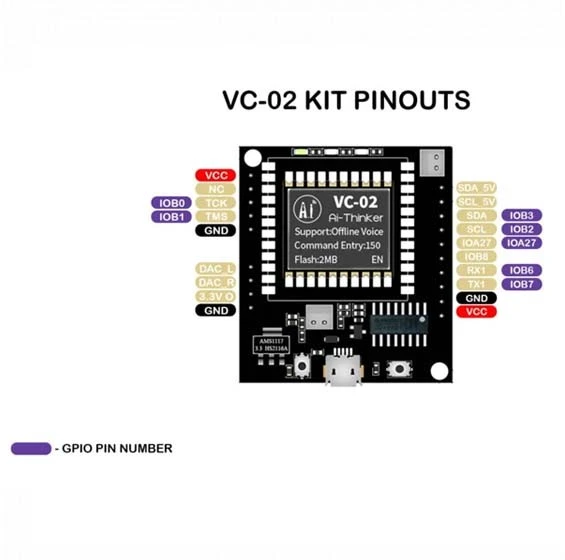

• GPIOs Configuration: All GPIOs can function as external interrupt inputs and wake-up sources.
• UART Communication: Features one full-duplex UART with a maximum data rate of 3 Mbps.
• Support for Multiple Interfaces: Compatible with I2C, DAC, PWM, and other interfaces for various connectivity and control purposes.
• Built-in Memory: Contains 242 KB of high-speed SRAM and 2 MB of Flash memory for data storage and program execution.
• Dual-Channel DAC Output: Allows for dual-channel DAC output, ideal for generating analog signals.
• High-Performance 32-bit RISC Core: Runs on a 32-bit RISC core at 240 MHz, providing robust processing power for speech recognition tasks.
• DSP and FPU Support: Supports DSP instruction set and an FPU (Floating Point Unit) for efficient processing of complex mathematical operations needed in speech processing.

Applications:

The Ai-Thinker NodeMCU-VC-02-KIT is ideal for applications that require voice control, such as:

• Smart home devices
• Smart small household appliances
• Electronic toys
• LED lamps and lighting systems
• Other consumer electronics products needing speech recognition capabilities

This module provides a highly integrated solution for developers looking to implement offline speech recognition in their products without relying on cloud-based services, making it suitable for a wide range of voice-controlled applications.
