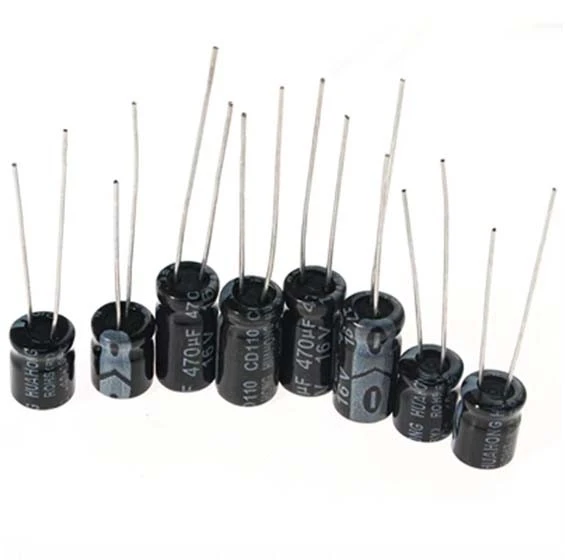

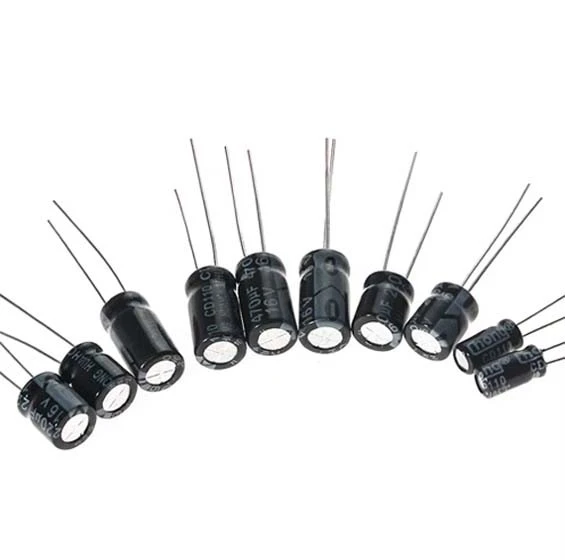

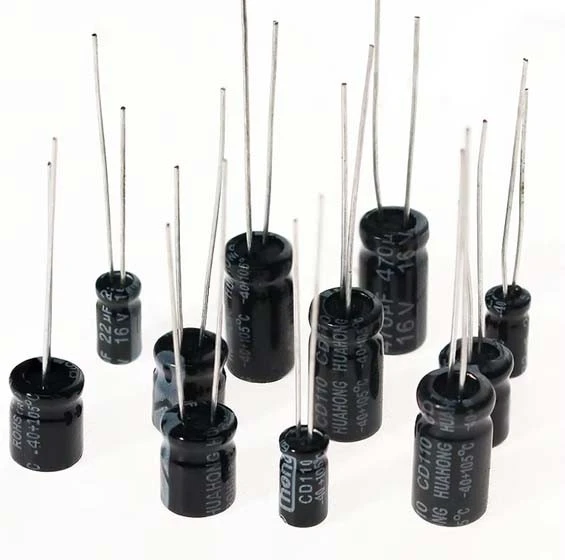

This set of 120 aluminum electrolytic capacitors includes various capacitance values ranging from 0.22μF to 470μF, with voltage ratings from 16V to 50V. The capacitors come in 12 different values, with 10 pieces of each value, making a total of 120 capacitors.

1uF~470uF = 12values *10pcs, total 120 pcs

• 1uF 50V
• 2.2uF 50V
• 3.3uF 50V
• 4.7uF 50V
• 10uF 16V
• 22uF 25V
• 33uF 25V
• 47uF 25V
• 100uF 16V
• 220uF 16V
• 330uF 10V
• 470uF 16V

Applications:

1. Power Filter: Smooths out voltage fluctuations in power supplies.
2. Signal Filter: Removes noise and unwanted frequencies from a signal.
3. Signal Coupling: Allows AC signals to pass between stages of a circuit.
4. Resonance Circuits: Used in tuning circuits to achieve desired frequency response.
5. DC Isolation: Blocks DC while allowing AC to pass.

Product Functionality:

• DC Blocking: Prevents DC current flow while allowing AC signals.
• Bypass/Decoupling: Provides a low impedance path to reduce AC signal interference.
• Coupling: Links different stages of a circuit while allowing AC signals to pass through.
• Filtering: Helps smooth rectified sawtooth waves to resemble more stable DC signals.
• Energy Storage: Stores and releases energy as needed in the circuit.

These capacitors are suitable for use in a variety of circuits, including power supplies, audio equipment, motor starting circuits, and signal processing circuits. Their lead wire type is radial, and they have a cylindrical shape. The allowable deviation for capacitance values is ±20%.
