Compatible With Arduino UNO R3

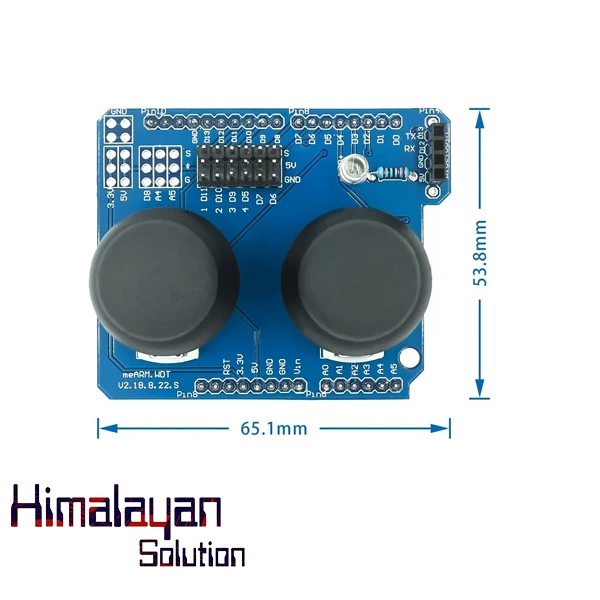

The Dual PS2 Game Joystick Button Module is a controller interface designed to simulate joystick inputs, typically used in robotics, gaming projects, or custom controllers. This module is compatible with Arduino boards like the Arduino Uno R3 and provides easy-to-use analog and digital inputs, making it ideal for joystick-based control systems.This Dual PS2 Joystick Module has two joysticks, each with a X and Y analog axis, along with push buttons that act as digital inputs. The module is widely used in Arduino-based projects, especially for controlling robots, video games, or other applications where two-axis control is needed.

Key Features:

1. Dual Joystick:

   • 2x Joysticks: Each joystick controls the X and Y axis (up/down, left/right).
   • Provides analog signals (from 0 to 1023) for each axis, allowing smooth and precise control.

2. Push Buttons:

   • Each joystick has an associated push button for digital input. Pressing the button on either joystick sends a signal to the Arduino, typically used for additional actions like firing in a game or triggering a movement.

3. Joystick Module:

   • Comes with 5 pins for each joystick:
     • VCC: 5V power supply.
     • GND: Ground.
     • X: Analog signal for the X-axis.
     • Y: Analog signal for the Y-axis.
     • SW: Push button signal.

4. Compatibility:

   • Fully compatible with Arduino Uno R3 and other Arduino models like Arduino Mega or Arduino Leonardo.
   • Works well with PS2 controllers and can be used for custom controllers in gaming or robotics.

5. Wiring:

   • The module connects to the Arduino via simple GPIO pins (analog and digital).
   • Joystick pins (X, Y) can be connected to analog input pins of the Arduino (e.g., A0, A1) for reading the analog data.

6. Easy Integration:

   • The module is easy to use with ready-made Arduino libraries for joystick control.
   • Can be easily programmed for multiple applications using Arduino IDE.
