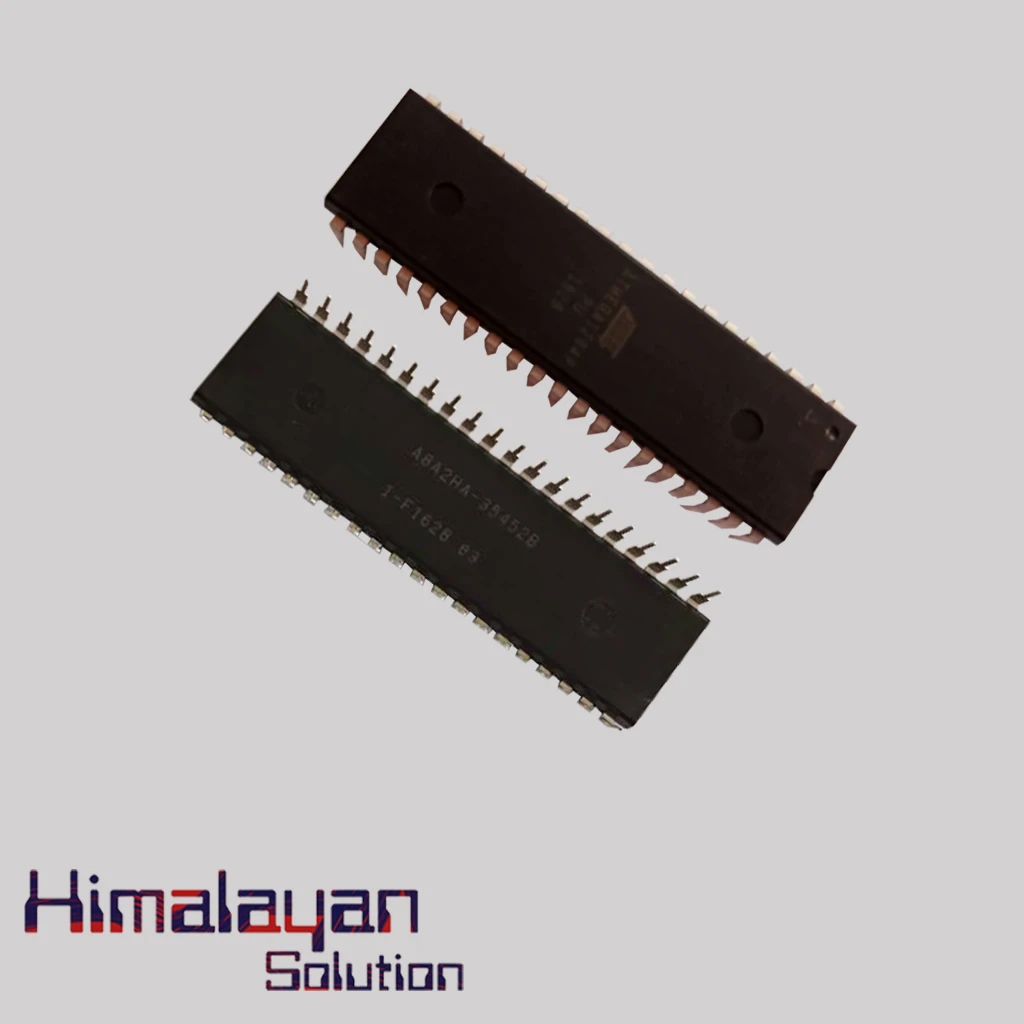

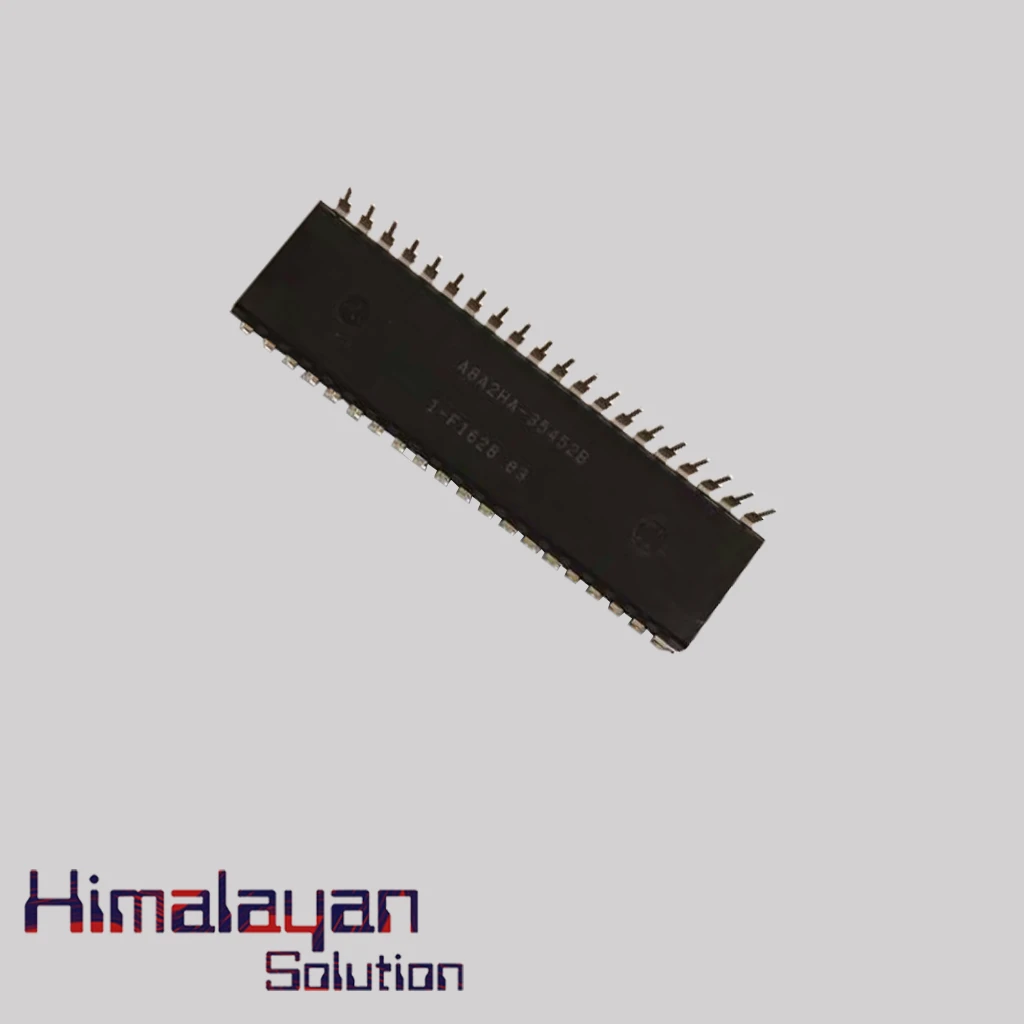

AT Mega1284P IC

0 /5.0 (0 reviews)
SKU HS733

The AT Mega1284P IC is a low power 8-bit AVR RISC based microcontroller featuring 128KB of ISP flash, 4KB  EEPROM, 16KB SRAM, 131 Powerful instruction, 8-channel 10-bit A/D converter, 32 general purpose I/O lines, 32 general purpose working registers, A real time counter, 3 flexible timer/counters with compare modes an...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The AT Mega1284P IC is a low power 8-bit AVR RISC based microcontroller featuring 128KB of ISP flash, 4KB  EEPROM, 16KB SRAM, 131 Powerful instruction, 8-channel 10-bit A/D converter, 32 general purpose I/O lines, 32 general purpose working registers, A real time counter, 3 flexible timer/counters with compare modes and PWM, 2 USARTs, A byte oriented 2-wire serial interface, SPI serial port, A JTAG (IEEE 1149.1 compliant) test interface for on-chip debugging and programming, Six software selectable power saving modes and many more. It can achieve 1 MIPS per MHz with balancing power consumption and processing speed. It can be applicable for various kinds of DIY projects.

Specifications

14
Name
AT Mega1284P IC
Program Memory Type
Flash
Program Memory Size (KB)
128
CPU Speed (MIPS/DMIPS)
20
SRAM Bytes
16384
Data EEPROM/HEF (bytes)
4096
Digital Communication Peripherals
2-UART, 3-SPI, 1-I2C
Capture/Compare/PWM Peripherals
1 Input Capture, 1 CCP, 6PWM
Timers
2 x 8-bit, 2 x 16-bit
Number of Comparators
1
Temperature Range
-40°C To 85°C
Operating Voltage Range (V)
1.8 To 5.5
Pin Count
44
Low Power
Yes
