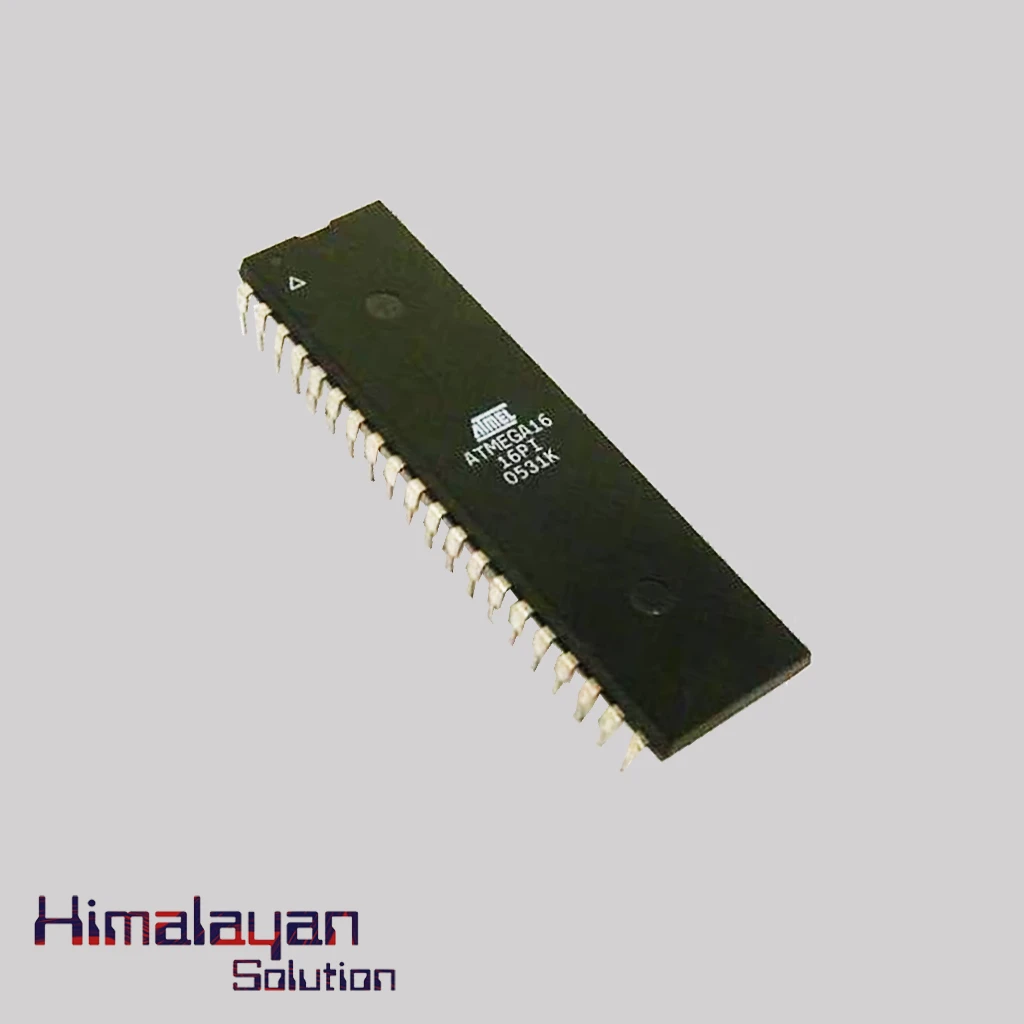

AT Mega16 IC

0 /5.0 (0 reviews)
SKU HS346

 The AT Mega 16 AVR RISC based 8 bit microcontroller microchip. It has 131 powerful instruction for single clock cycle execution. It has 16 kb flash memory with 512B EEPROM, 1 KB SRAM. It is mostly used in many projects where a simple low powered micro controller is required. It has on chip 2 cycle multiplier with 32 g...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

 The AT Mega 16 AVR RISC based 8 bit microcontroller microchip. It has 131 powerful instruction for single clock cycle execution. It has 16 kb flash memory with 512B EEPROM, 1 KB SRAM. It is mostly used in many projects where a simple low powered micro controller is required. It has on chip 2 cycle multiplier with 32 general purpose working registers.

Specifications

21
Family Name
ATmega
Device Core
AVR
Data Bus Width
8Bit
Instruction Set Architecture
RISC
Maximum Clock Rate
16MHz
Maximum Speed
16MHz
Number Of Programmable I/Os
32
Number Of Timers
3
On-Chip ADC
On-Chip ADC 8-chx10-bit
Program Memory Size
16KB
Program Memory Type
Flash
RAM Size
1KB
Interface Type
JTAG/SPI/UART
Operating Supply Voltage
4.5V To 5.5V
Operating Temperature
-40°C TO 85°C
Mounting
Through Hole
Pin Count
40
Width
13.97mm(Max)
Height
4.83mm(Max) - 0.38mm(Min)
Length
52.58mm(Max)
Type
Microcontroller
