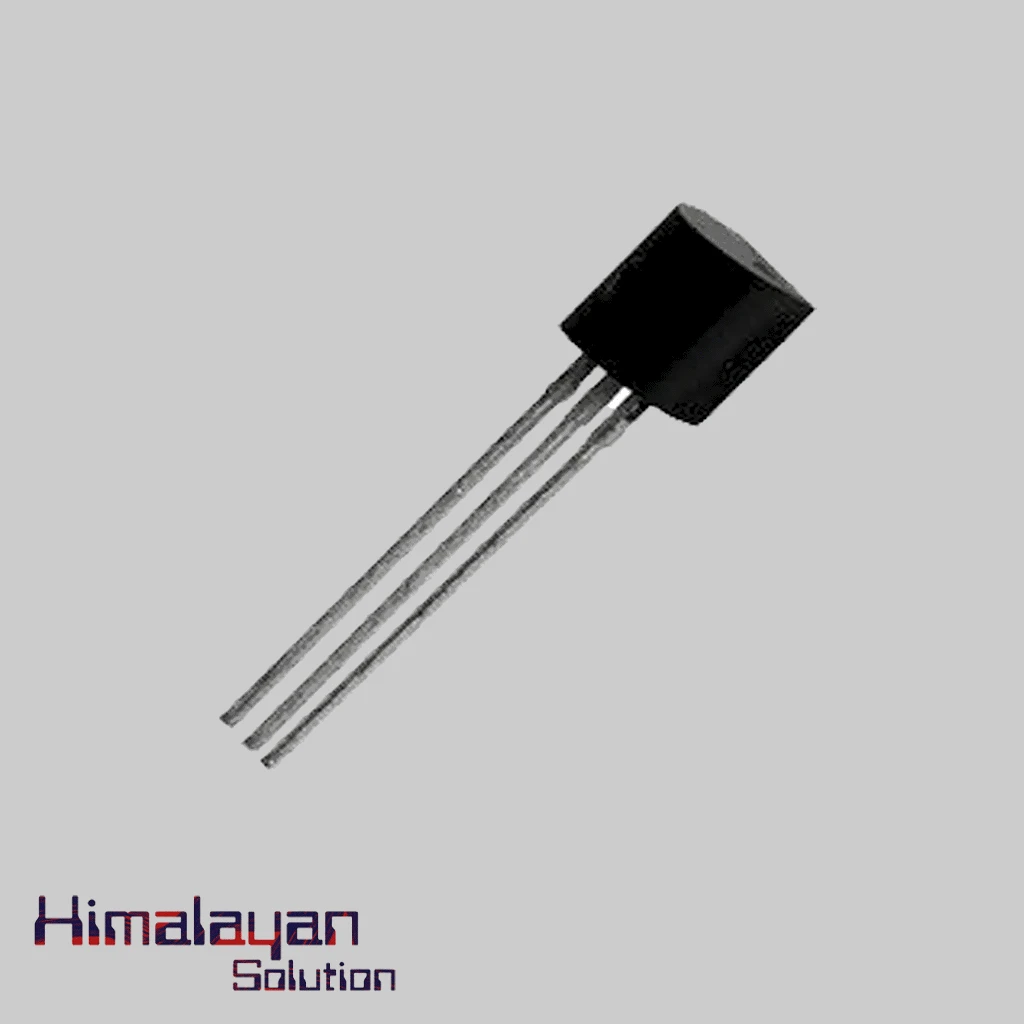

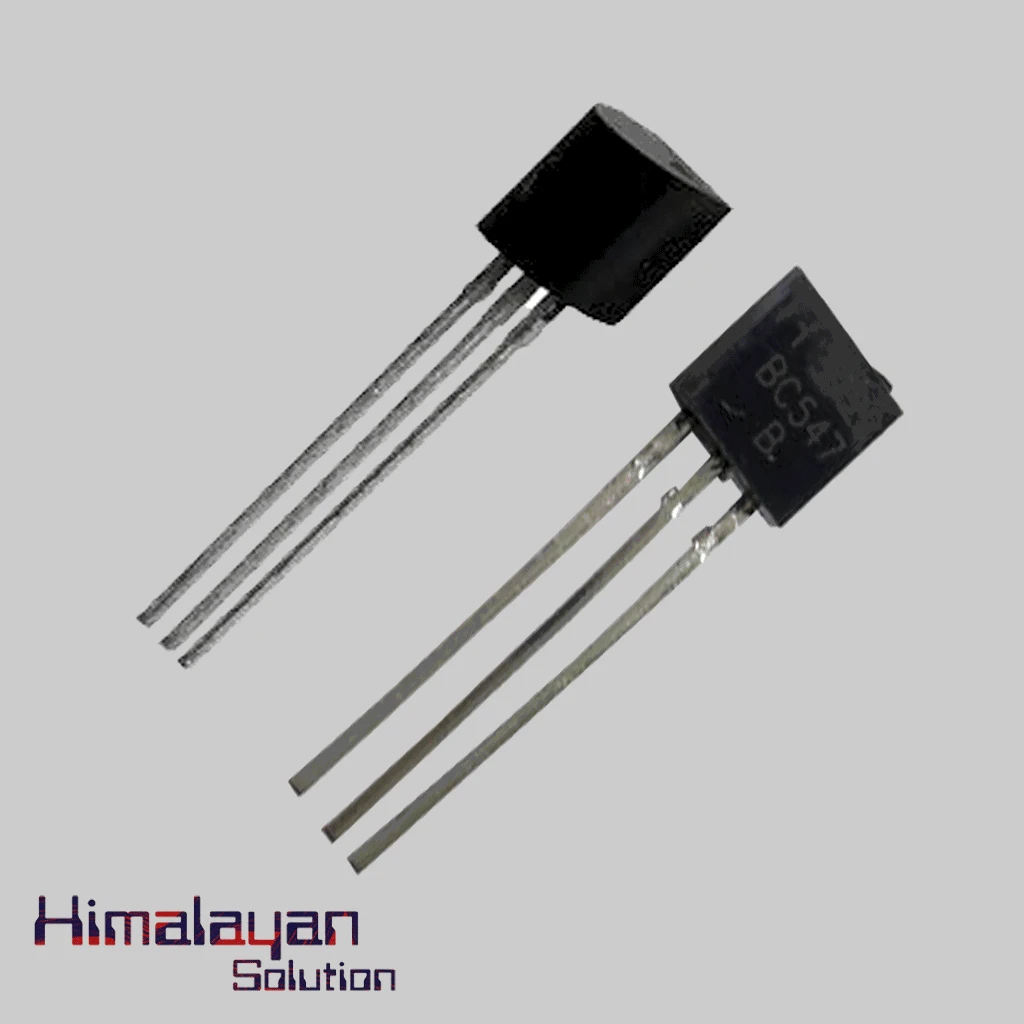

BC 547 Transistor

0 /5.0 (0 reviews)
SKU 0.03

The BC547 Transistor is an NPN bi-polar junction transistor which has the function of amplifing current. It is mainly used for mainly used for amplification and switching purposes.  It has a maximum current gain of 800. It is also equivalent to transistors named BC548 and BC549.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The BC547 Transistor is an NPN bi-polar junction transistor which has the function of amplifing current. It is mainly used for mainly used for amplification and switching purposes.  It has a maximum current gain of 800. It is also equivalent to transistors named BC548 and BC549.

Specifications

9
Product Name
BC547 Transistor
Transistor Type
NPN
Voltage Collector Emitter Breakdown (Max)
45V
Current Collector (Ic) (Max)
100mA
Power Max
625mW
DC Current Gain (hFE) (Min) @ Ic, Vce
110 @ 2mA, 5V
Vce Saturation (Max) @ Ib, Ic
300mV @ 5mA, 100mA
Frequency Transition
300MHz
Mounting Type
Through Hole
