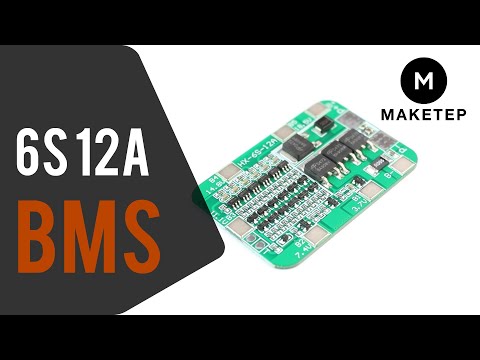

Bms 6 channel 6S Hx-6s-12a

0 /5.0 (0 reviews)
SKU HS5.60

It allows the simultaneous charging of 6 lithium batteries type 18650 or similar (electrically speaking). It is easy to implement and also used to manage the charge and discharge of battery systems that may be part of the electronic projects. It is basically a protection system for overcharging over-discharge and short...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

It allows the simultaneous charging of 6 lithium batteries type 18650 or similar (electrically speaking). It is easy to implement and also used to manage the charge and discharge of battery systems that may be part of the electronic projects. It is basically a protection system for overcharging over-discharge and short-circuit.



Specifications

10
Output Voltage
22..24V
Input Voltage
25.2 - 25.6 VDC
Charging Voltage Range
4.13 to 4.23 VDC (± 0.05 VDC)
Over Discharge Voltage Range
2.55 VDC (± 0.08 VDC )
Maximum Charging Current
15A
Operating Temperature
-30 to 80 ° C
Maximum Discharging Current:
15A
Idle Consumption
10uA
Resistance
less than 20m milliohms
Size
31 x 49 x 3.4mm
