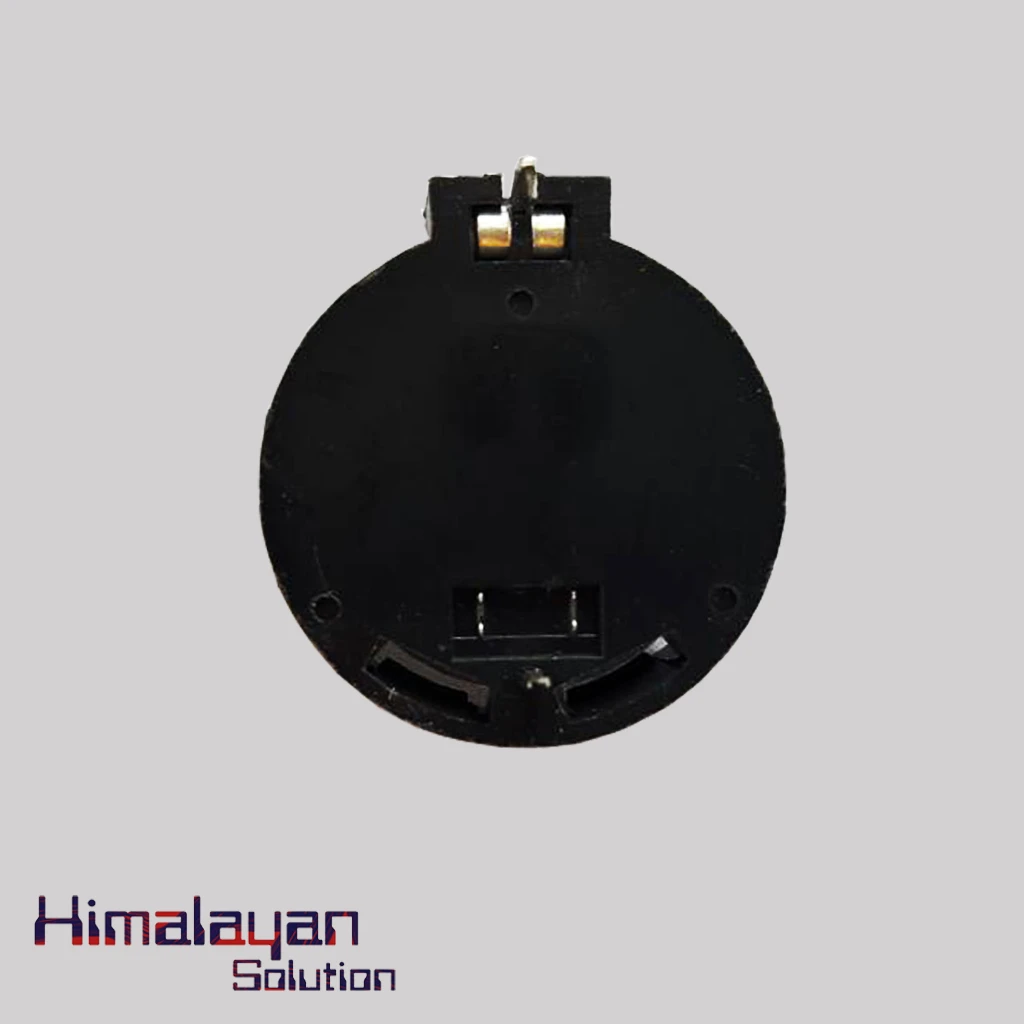

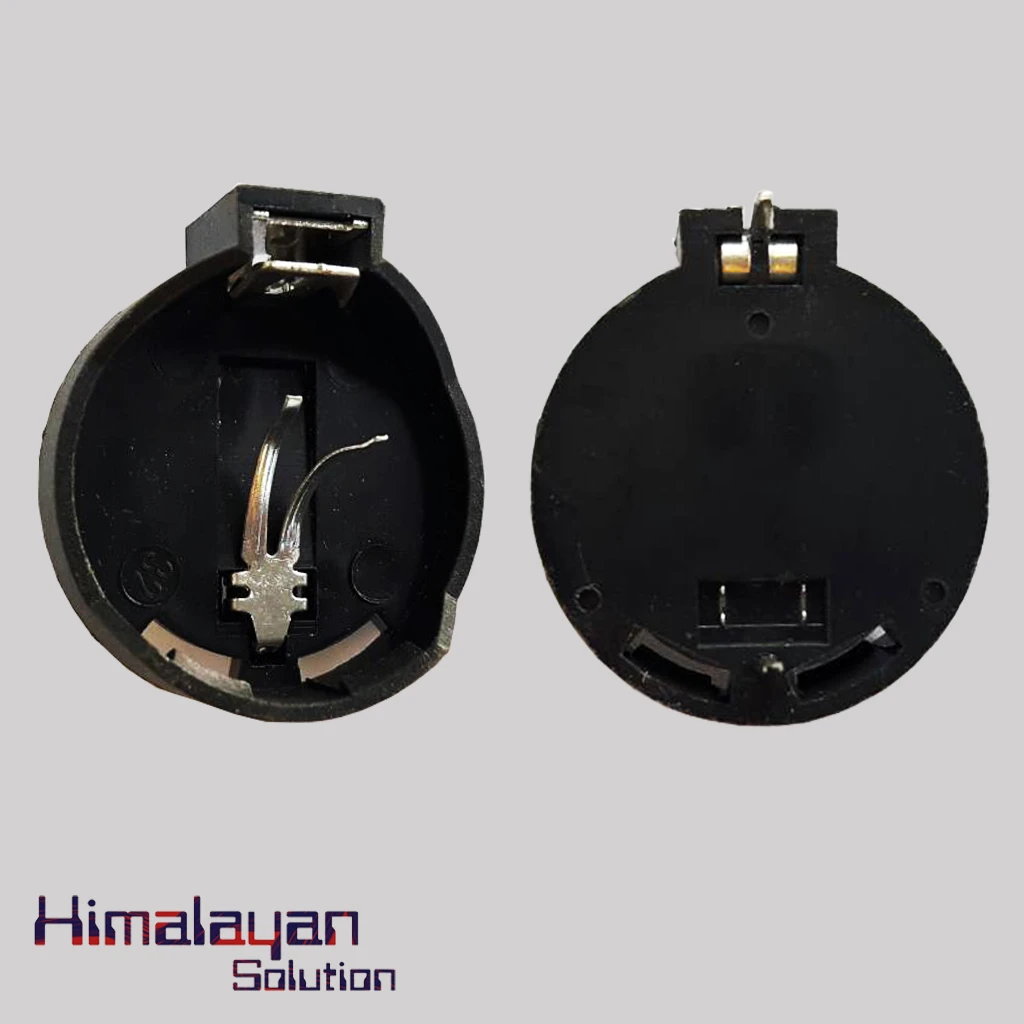

Coin Cell Holder

0 /5.0 (0 reviews)
SKU HS666

The Coin Cell Holder is a battery holder for CR2025 or CR2032 of 3.0V Lithium batteries. It is made up of high quality plastic material. It can be suitable in various household devices such as: - Mini torches, Kitchen scales, Glucometers, Mother boards, RTC modules etc.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Coin Cell Holder is a battery holder for CR2025 or CR2032 of 3.0V Lithium batteries. It is made up of high quality plastic material. It can be suitable in various household devices such as: - Mini torches, Kitchen scales, Glucometers, Mother boards, RTC modules etc.

Specifications

15
Name
Coin Cell Holder
Material
Plastic, Metal
Weight
1.4 g
Battery Type
1 Pc, CR2025 or CR2032 Button Coin Cell
Mounting Type
Through Hole – PCB Mount
Pin to Pin Distance
20 mm
Contact Current Rating
3 Ampere
Dielectric Withstanding Voltage
AC 500 V/60 sec.r.m.s (Minimum)
Insulator Resistance
1000 megohms minimum at DC 500 V
Contact Resistance
12 milliohms (Maximum)
Contacts
Copper Alloy
Insulator
PBT with class fiber (UL94V-0 rated)
Terminal Finish
Nickel Plated
Operating Temperature
-55°C to 105°C
Color
Black
