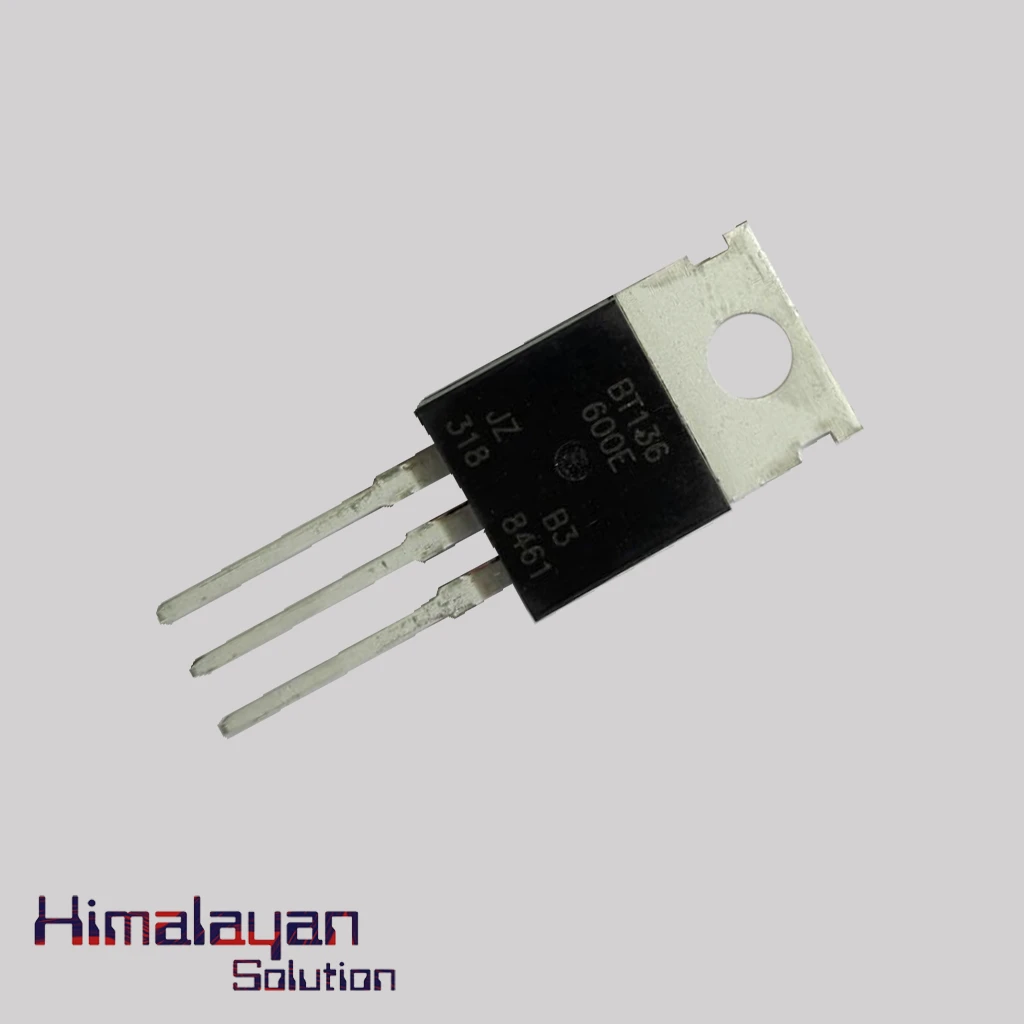

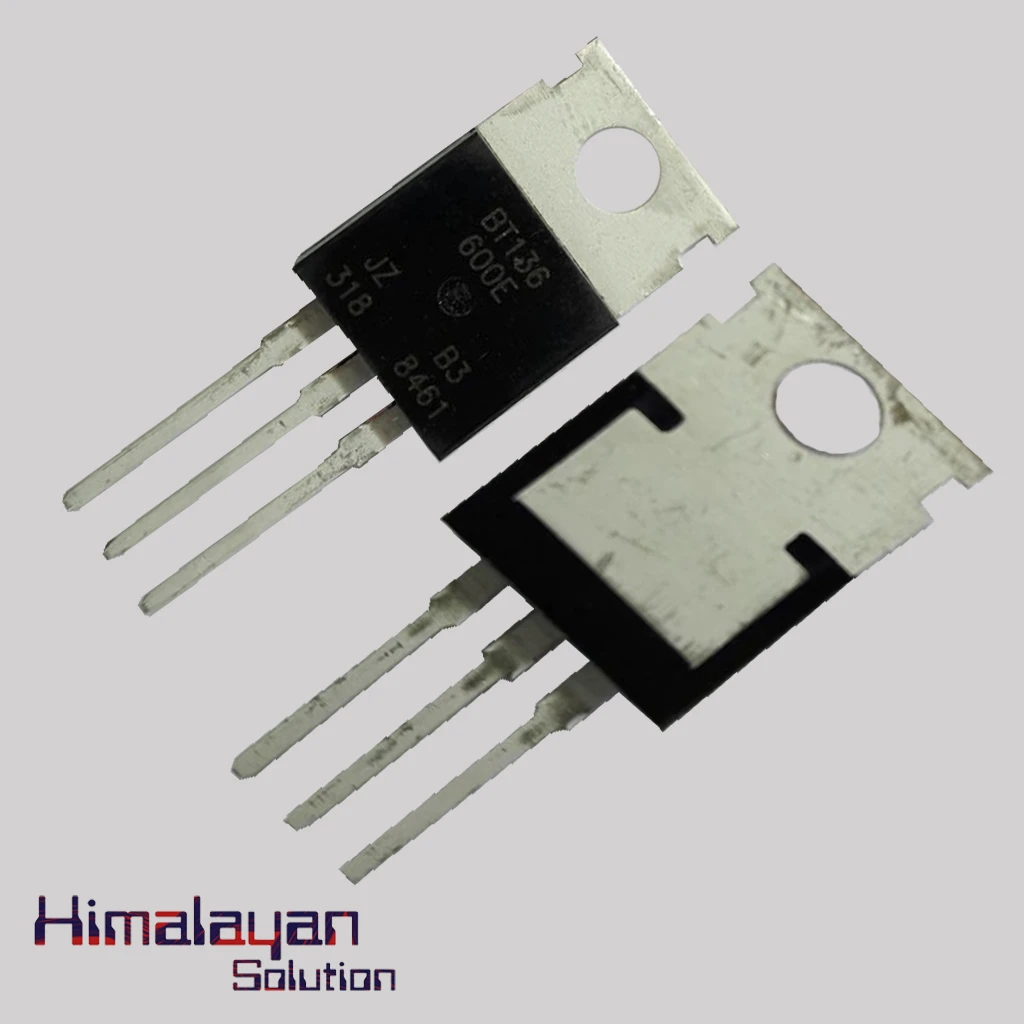

BT 136 IC

0 /5.0 (0 reviews)
SKU HS292

BT136 600E is used in AC switching and control applications with current ratings from under 1A to 40A rms.The  switch for alternating current circuit  is convenient due to the TRIAC.. It has features like capability of high blocking voltage, direct triggering from low power drivers and logic ics, lowest Emi at commutat...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

BT136 600E is used in AC switching and control applications with current ratings from under 1A to 40A rms.The  switch for alternating current circuit  is convenient due to the TRIAC.. It has features like capability of high blocking voltage, direct triggering from low power drivers and logic ics, lowest Emi at commutation and many more. It is used in general purpose motor control, switching and many more.

Specifications

15
Package / Case
TO-220AB-3
Configuration
Single
Voltage - Off State
600V
Current - Non Rep. Surge 50, 60hz (itsm)
25A, 27A
Voltage - Gate Trigger (vgt) (max)
1.5V
Gate Trigger Voltage (vgt)
0.7 V
Off-state Leakage Current @ Vdrm Idrm
0.1 mA
Gate Trigger Current (igt)
11 mA
Forward Voltage Drop
1.4 V
Mounting Type
Through Hole
Current - Hold (ih) (max)
15mA
Current - Gate Trigger (igt) (max)
10mA
Current - On State (it (rms) (max)
4A
Triac Type
Logic - Sensitive Gate
Operating Temperature
-40 °C to +125 °C
