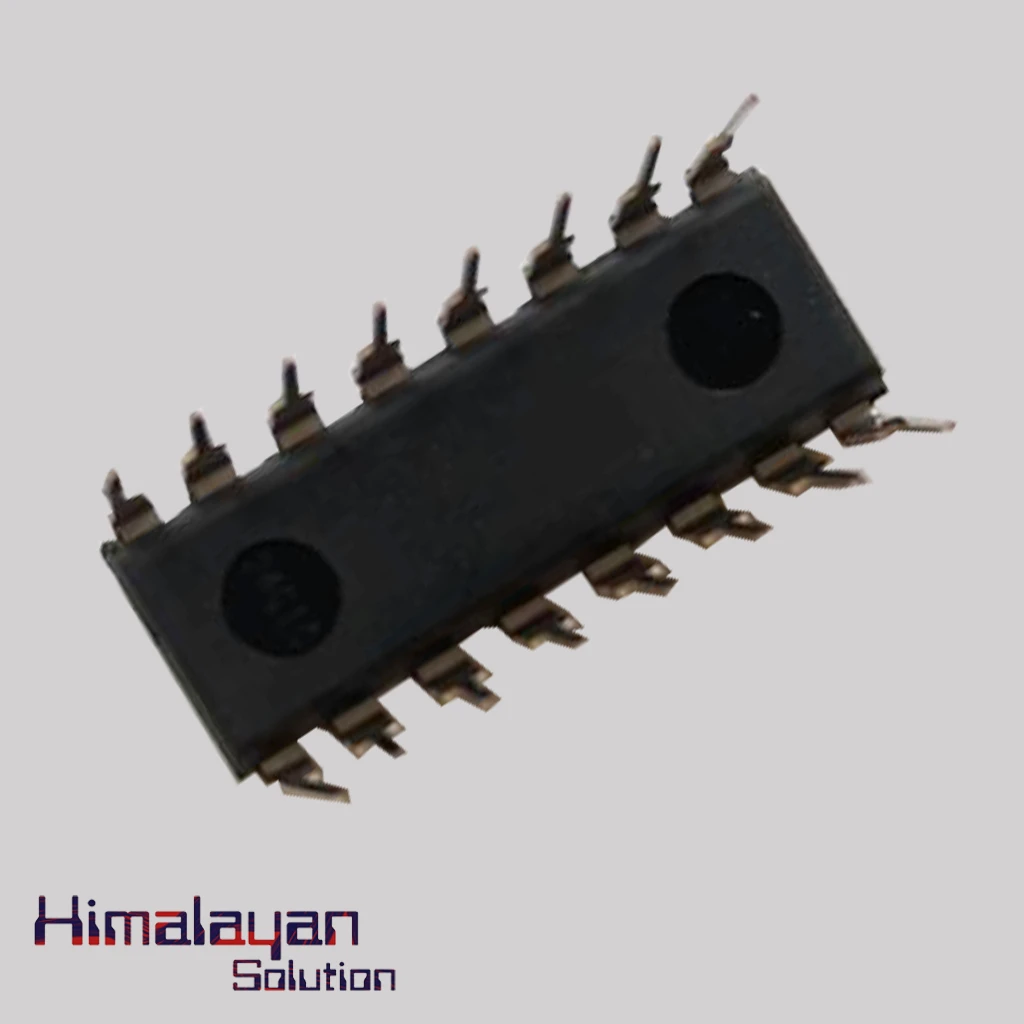

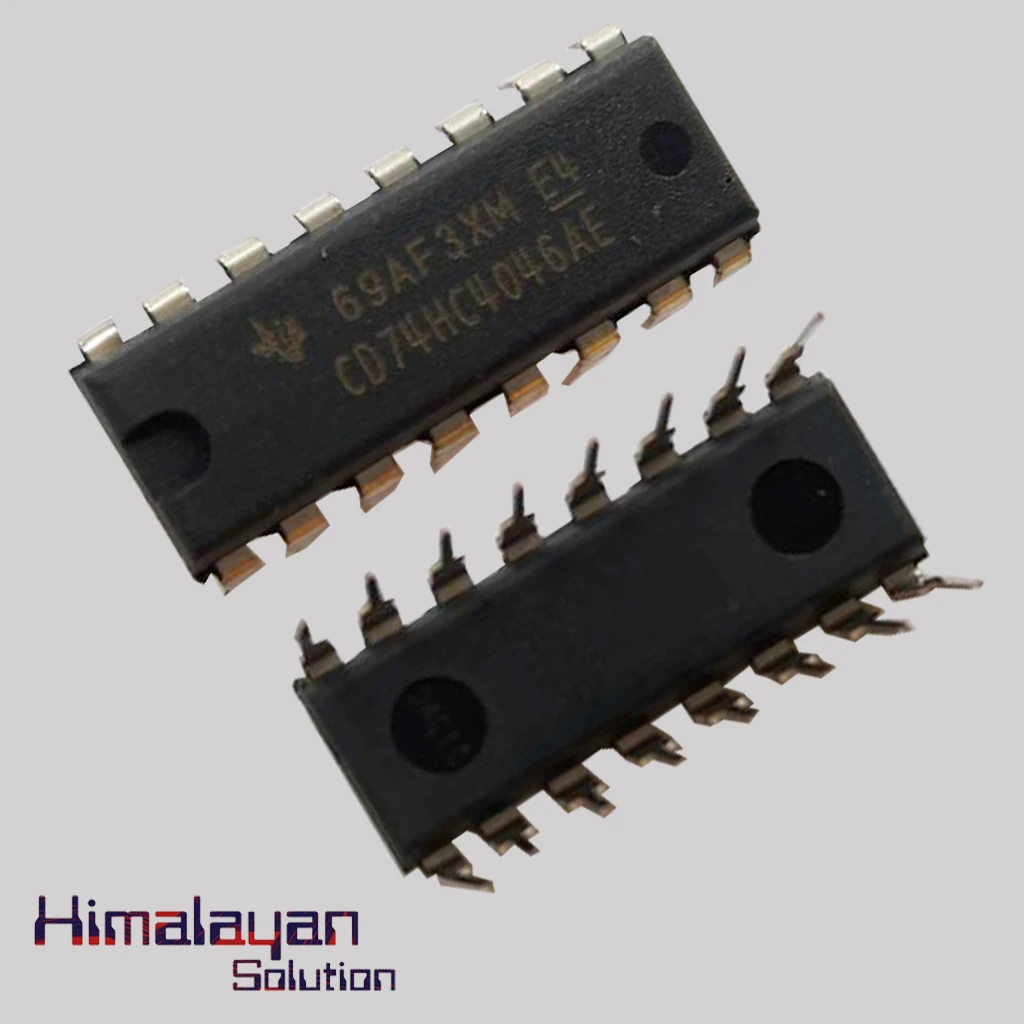

CD74HC4046 IC

0 /5.0 (0 reviews)
SKU HS502

The  CD74HC4046A IC is high speed CMOS logic phase-locked-loop circuit that contains a linear voltage controlled oscillator(VCO). Its operating temperature is  -55 to +125 degree celsius. It can be applicable for various things like :- FM modulation and demodulation, Frequency synthesis and multiplication, Tone decodin...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The  CD74HC4046A IC is high speed CMOS logic phase-locked-loop circuit that contains a linear voltage controlled oscillator(VCO). Its operating temperature is  -55 to +125 degree celsius. It can be applicable for various things like :- FM modulation and demodulation, Frequency synthesis and multiplication, Tone decoding, Frequency discrimination, Data synchronization and conditioning, Voltage to frequency conversion, Motor speed control and many more.

Specifications

11
Name
CD74HC4046A IC
Voltage(Nom)(V)
3.3V to 5V
Tpd @ Nom Voltage(Max)(ns)
64
Package Group
PDIP,SO,SOIC,TSSOP
Output Drive (IOL/IOH)(Max)(mA)
5.2/-5.2
ICC @ Nom Voltage(Max)(mA)
0.08
F @ Nom Voltage(Max)(Mhz)
70
Technology Family
HC
Bits(#)
1
Operating Temperature Range
-55° C To 125° C
VCC
2 V To 6 V
