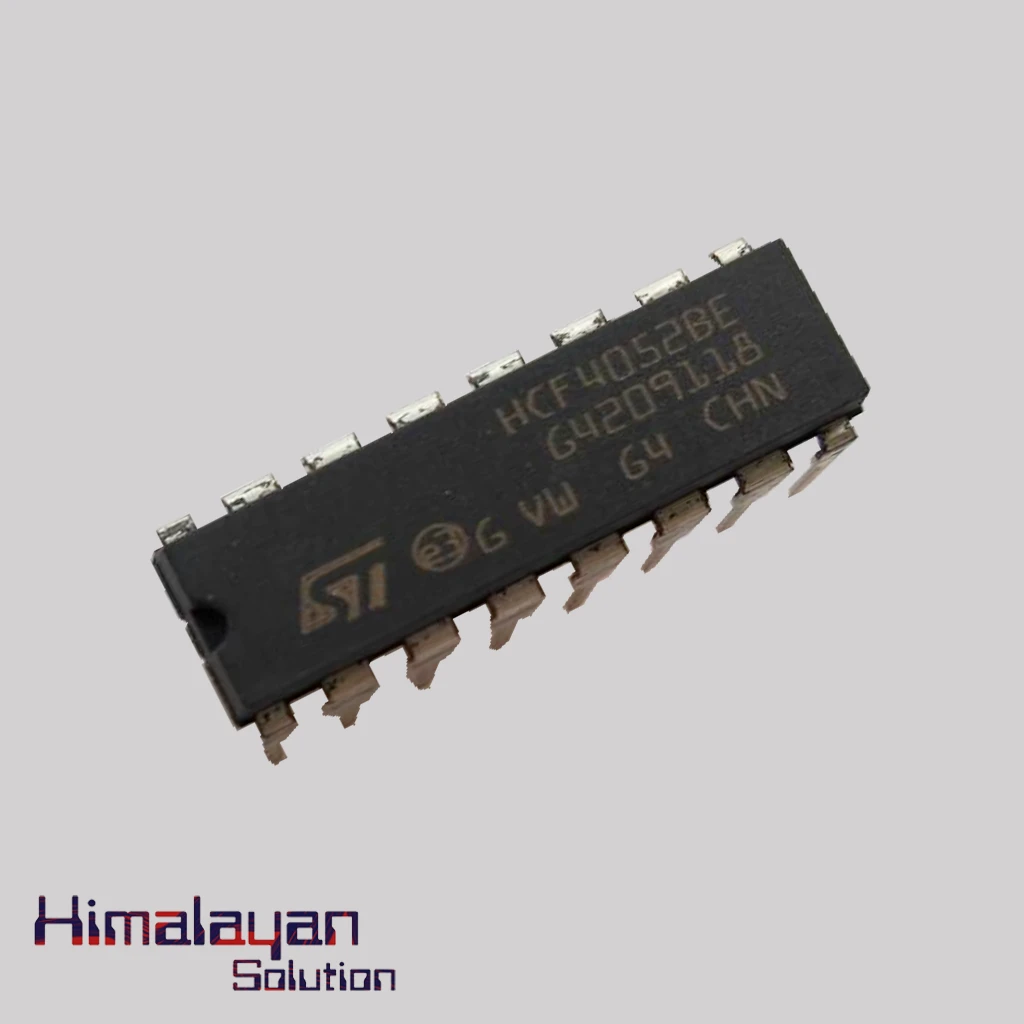

HCF4052BE IC

0 /5.0 (0 reviews)
SKU HS342

The HCF4052B is a monolithic integrated circuit fabricated in metal oxide semiconductor technology. The HCF4052B is a differential 4-channel analog multiplexer/demultiplexer. It is a digitally controlled analog switch having low ON impedance and very low OFF leakage current.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The HCF4052B is a monolithic integrated circuit fabricated in metal oxide semiconductor technology. The HCF4052B is a differential 4-channel analog multiplexer/demultiplexer. It is a digitally controlled analog switch having low ON impedance and very low OFF leakage current.

Specifications

11
Product Name
HCF4052 BE IC
Supply Voltage Range
3V to 15V
Operating Temperature Range
-40 to +85 Degree Celsius
Low \"ON\" Resistance
125Ω
Load Capacitance (CL)
50.0  pF
Number Of Functions
6
Number Of Inputs
2
Number Of Terminals
16
Technology
CMOS
Terminal Form
THROUGH-HOLE
Packages
DIP and SOP
