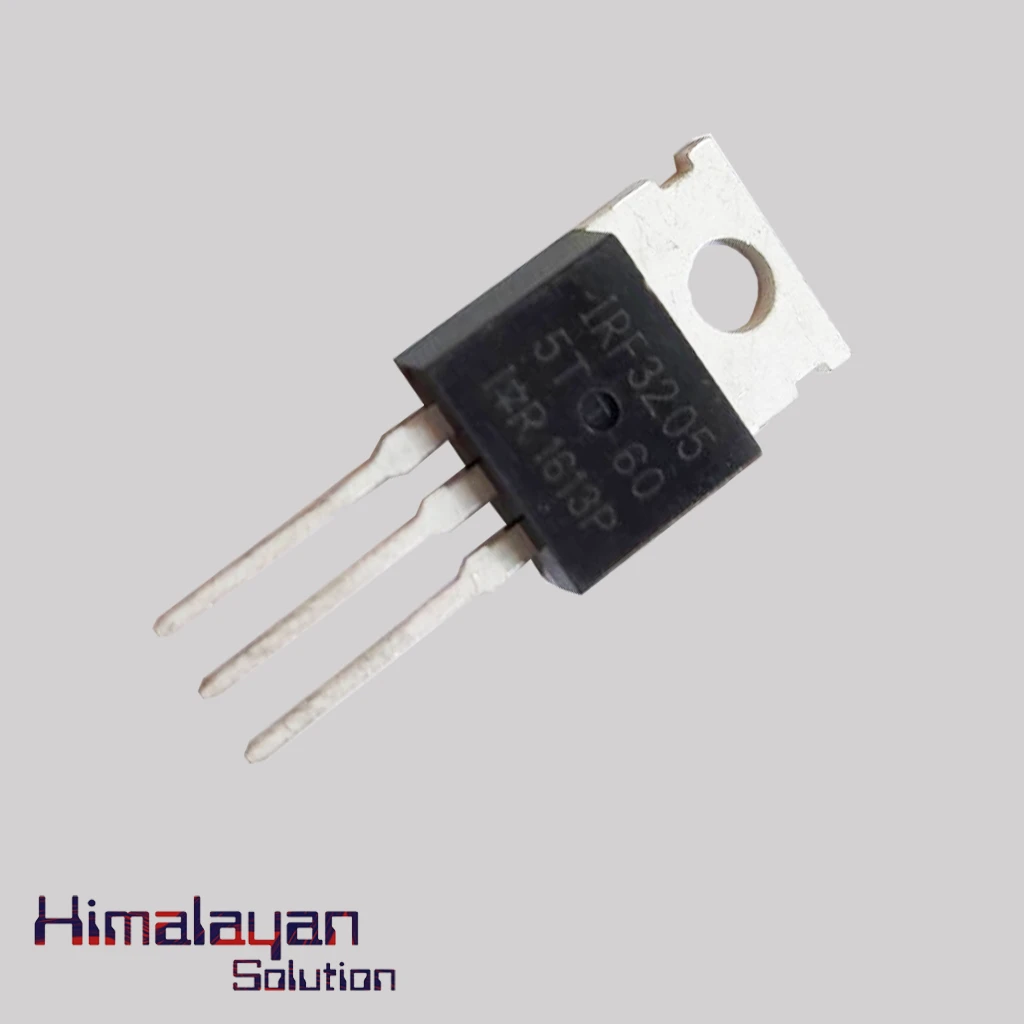

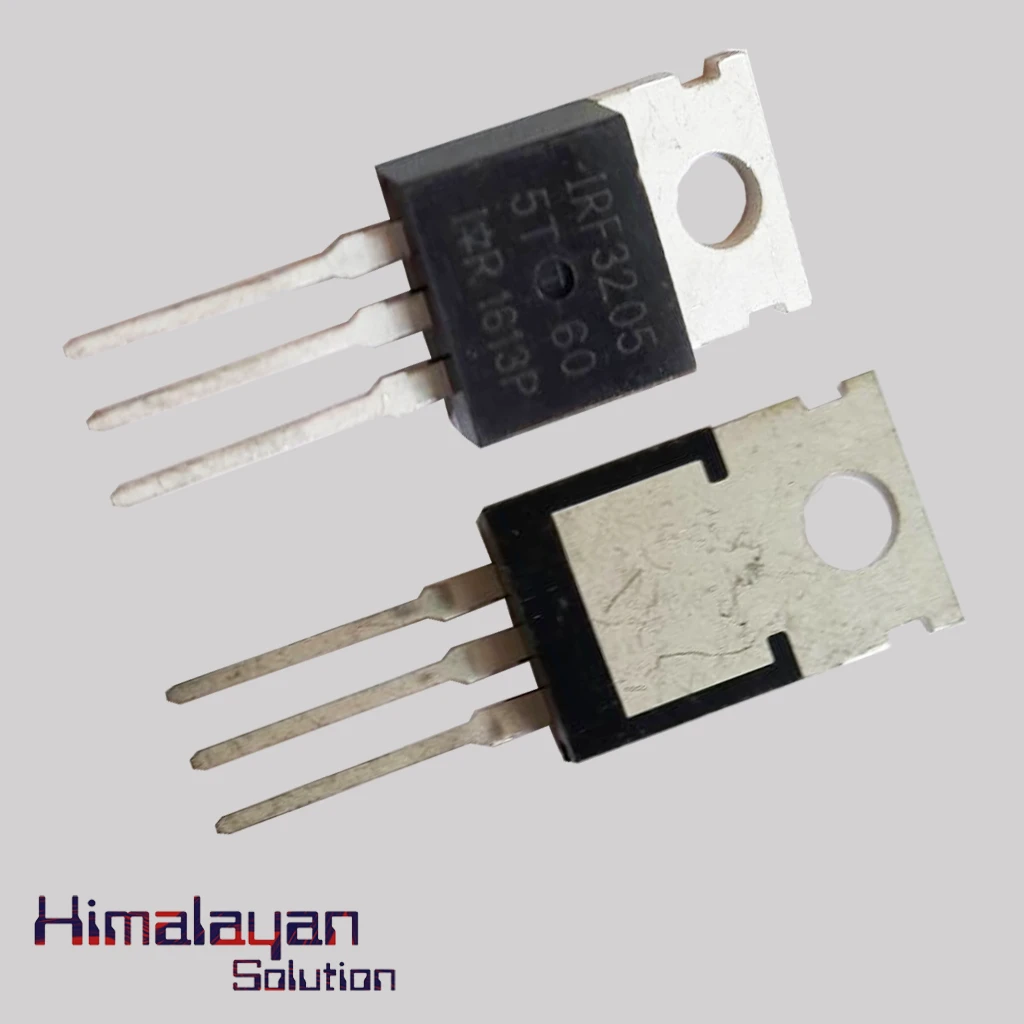

IRF 3205 IC

0 /5.0 (0 reviews)
SKU HS325

The IRF 3205 IC is used in various power switching application. It has higher efficiency, improves switching performance and many more.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The IRF 3205 IC is used in various power switching application. It has higher efficiency, improves switching performance and many more.

Specifications

22
Pulsed Drain Current
390 A
Linear Derating Factor
1.3 W/°C
Gate-To-Source Voltage
± 20 V
Avalanche Current
62 A
Configuration
Single
Maximum Power Dissipation
200 W
Number Of Elements Per Chip
1
Channel Mode
Enhancement
Channel Type
N
Maximum Continuous Drain Current
110A
Maximum Drain Source Resistance
0.008Ohm@10V
Maximum Drain Source Voltage
55V
Maximum Gate Source Voltage
±20V
Typical Fall Time
65ns
Typical Gate Charge @ Vgs
146nC(Max)@10V
Typical Input Capacitance @ Vds
3247pF@25V
Typical Rise Time
101ns
Typical Turn-Off Delay Time
50ns
Typical Turn-On Delay Time
14ns
Operating Temperature
-55°C to 175°C
Mounting
Through Hole
Pin Count
3
