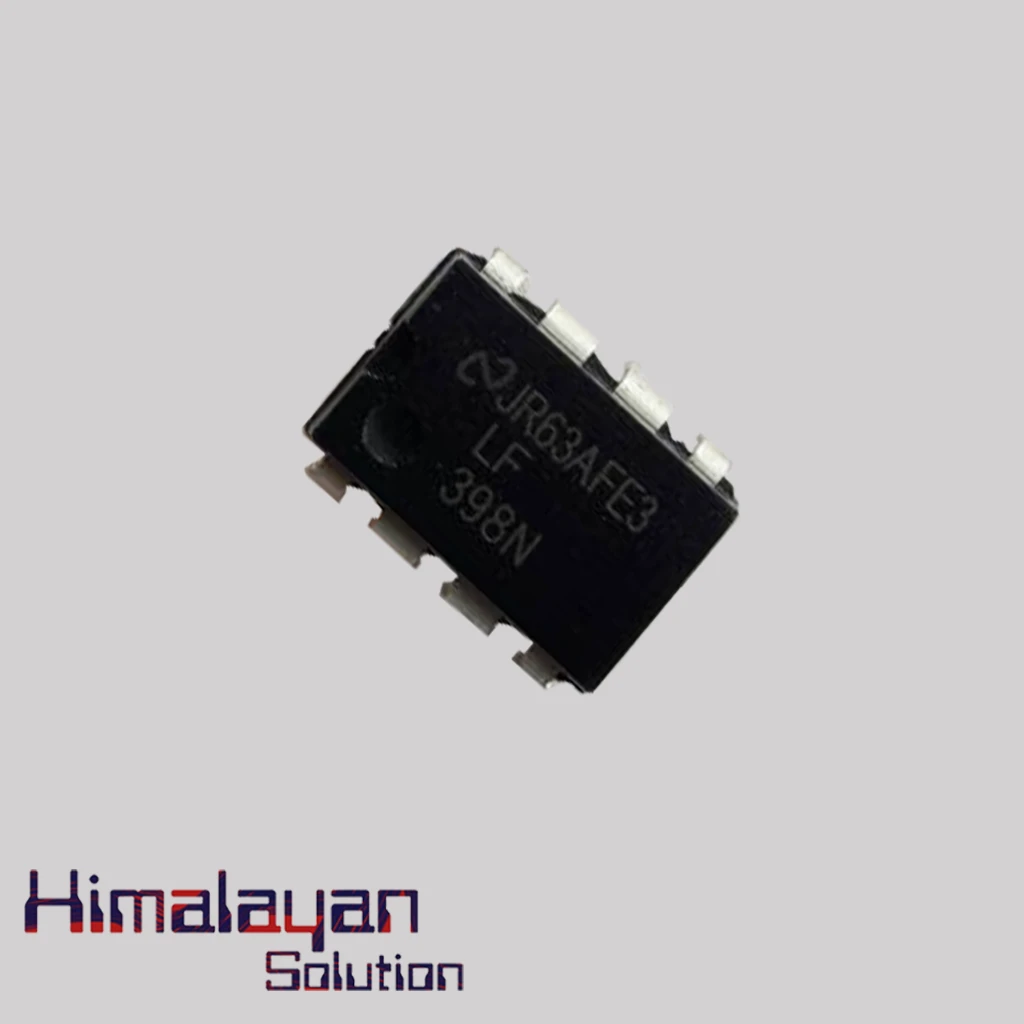

LF398N IC

0 /5.0 (0 reviews)
SKU HS662

The LF398N is an IC which consists of monolithic sample and hold circuit. This IC uses BI-FET technology to obtain ultra-high DC accuracy with fast acquisition of signal and low droop rate. It has various features like: - Low output noise in hold mode, Wide Bandwidth, High supply rejection ratio in sample or hold, Low...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The LF398N is an IC which consists of monolithic sample and hold circuit. This IC uses BI-FET technology to obtain ultra-high DC accuracy with fast acquisition of signal and low droop rate. It has various features like: - Low output noise in hold mode, Wide Bandwidth, High supply rejection ratio in sample or hold, Low Input Offset, 0.5 mV typical hold step at Ch = 0.01 µF, Logic input compatible with TTL, PMOS, CMOS and many more. It can be suitable for various applications like: - DC and AC zeroing, Ramp generators with variable reset level, Integrators with programmable reset level, 2-channel switches, Staircase generators and many more.

Specifications

10
Name
LF398N IC
Supply Voltage Range
±5 V DC to ±18 V DC
Power Dissipation
500 mW
Operating Ambient Temperature Range
0°C to 70°C
Logic-to-logic Reference Differential Voltage Range
7 V to -30 V
Output Short Circuit Duration
Indefinite
Hold Capacitor Short Circuit Duration
10 sec
Storage Temperature
-65°C to 150°C
Gain Accuracy
0.002%
Package
DIP, 8 Pin Standard 0.300 inch
