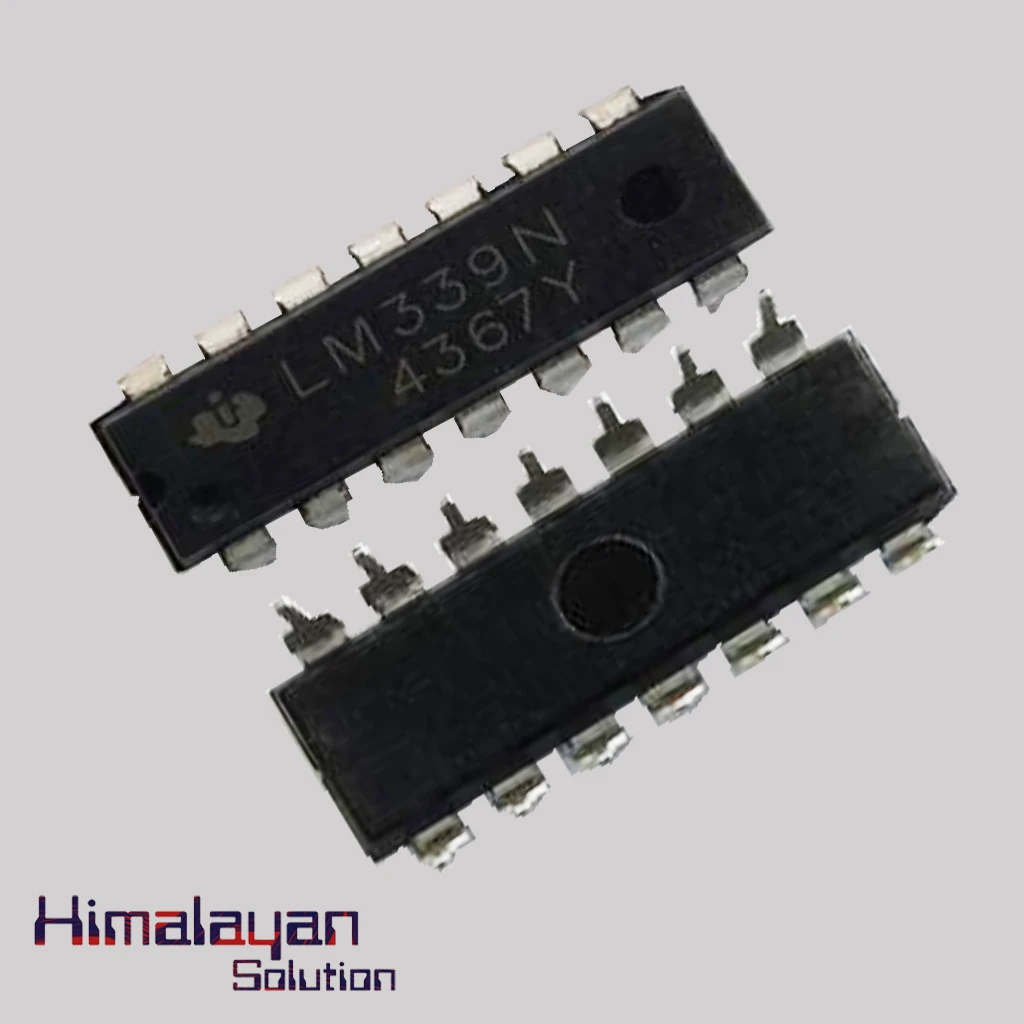

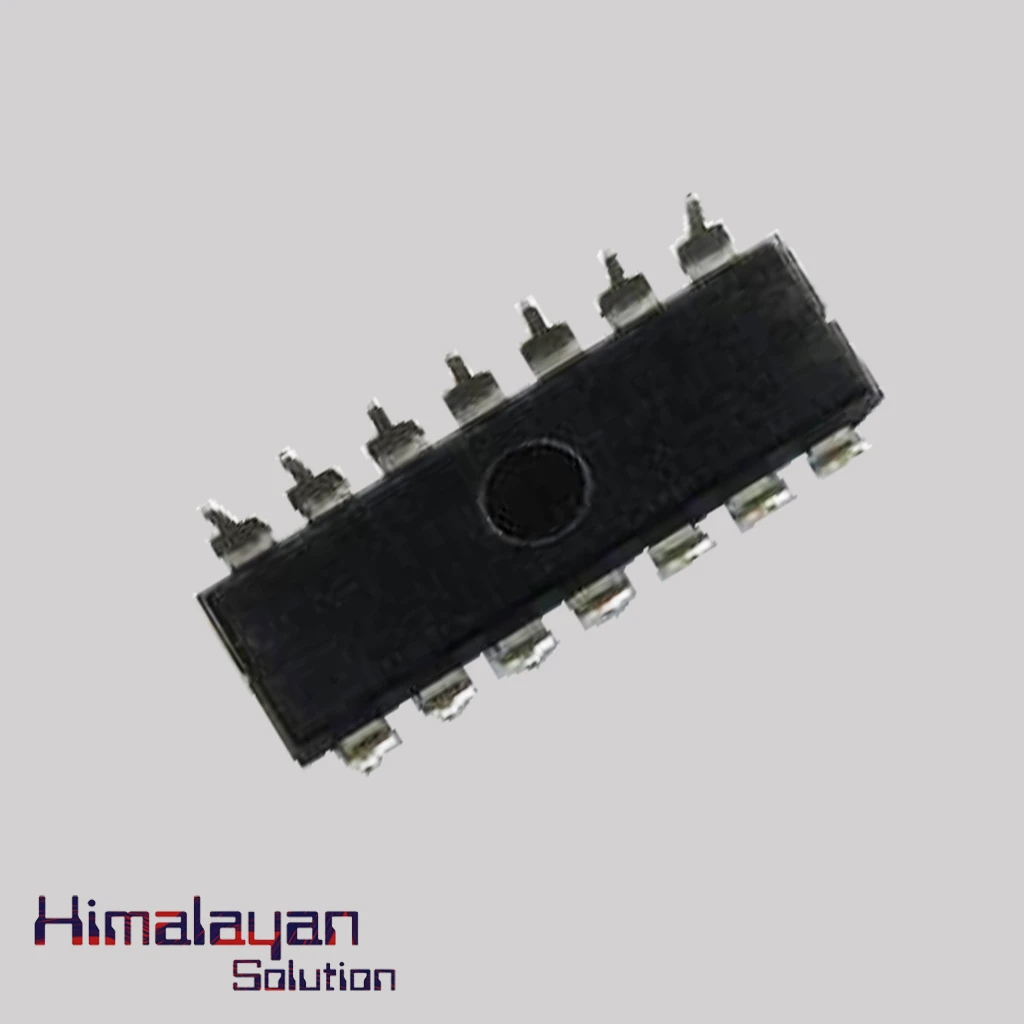

LM 339 IC

0 /5.0 (0 reviews)
SKU HS288

The Lm339 operates a wide range of voltage from a single power supply. It has four voltage comparators.  The ESD clamps on the input increase reliability without affecting device operation. It is used in level detection, low level sensing and many more.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Lm339 operates a wide range of voltage from a single power supply. It has four voltage comparators.  The ESD clamps on the input increase reliability without affecting device operation. It is used in level detection, low level sensing and many more.

Specifications

16
Number Of Channels Per Chip
4
Power Supply Type
Single|Dual
Minimum Single Supply Voltage
3V
Maximum Single Supply Voltage
36V
Minimum Dual Supply Voltage
±1.5V
Maximum Dual Supply Voltage
±18V
Maximum Input Bias Current
0.25uA@5V
Maximum Input Offset Voltage
5mV@5V
Maximum Power Dissipation
1000mW
Maximum Supply Current
2mA@5V
Typical Response Time
1.3us
Typical Voltage Gain
106.02dB
Operating Temperature
0°C ~ 70°C
Pin Count
14
Low Input Bias Current
25 nA
Low Input Offset Current
±5.0 nA
