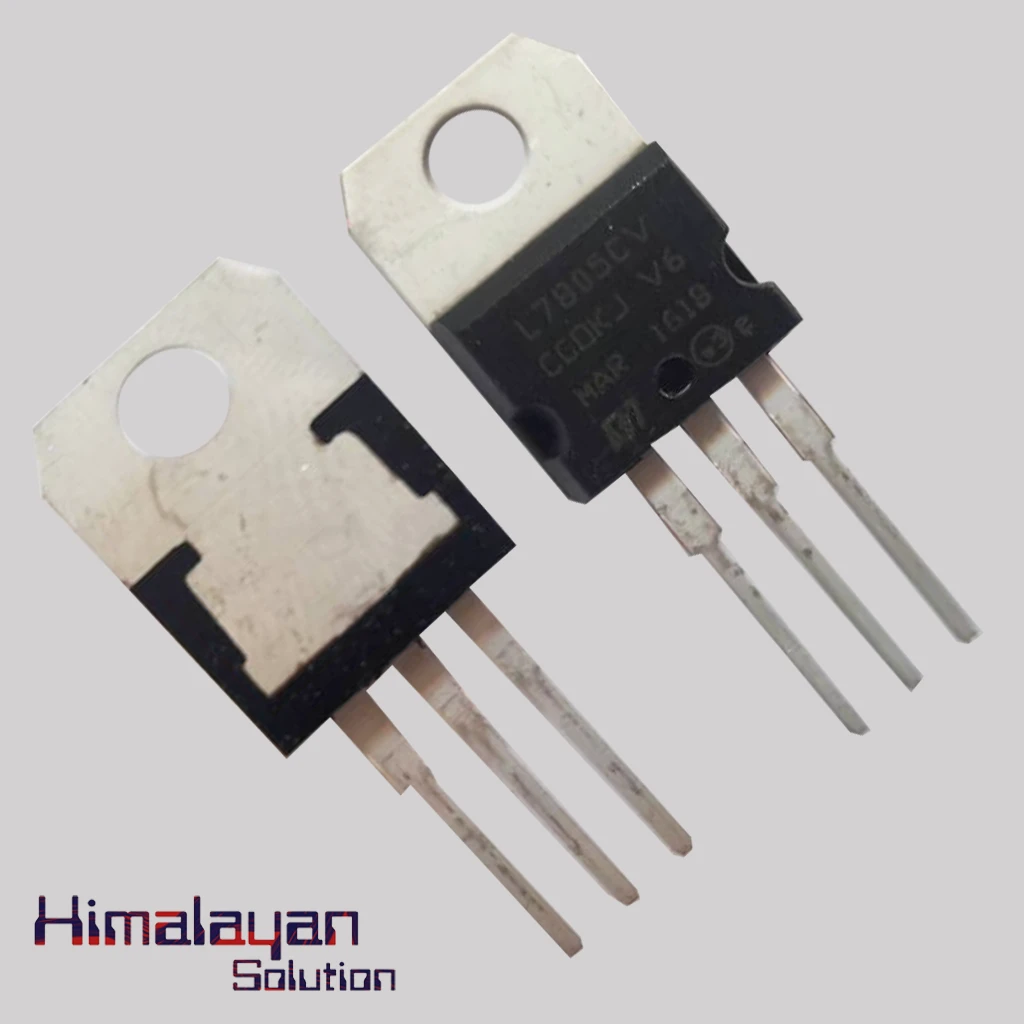

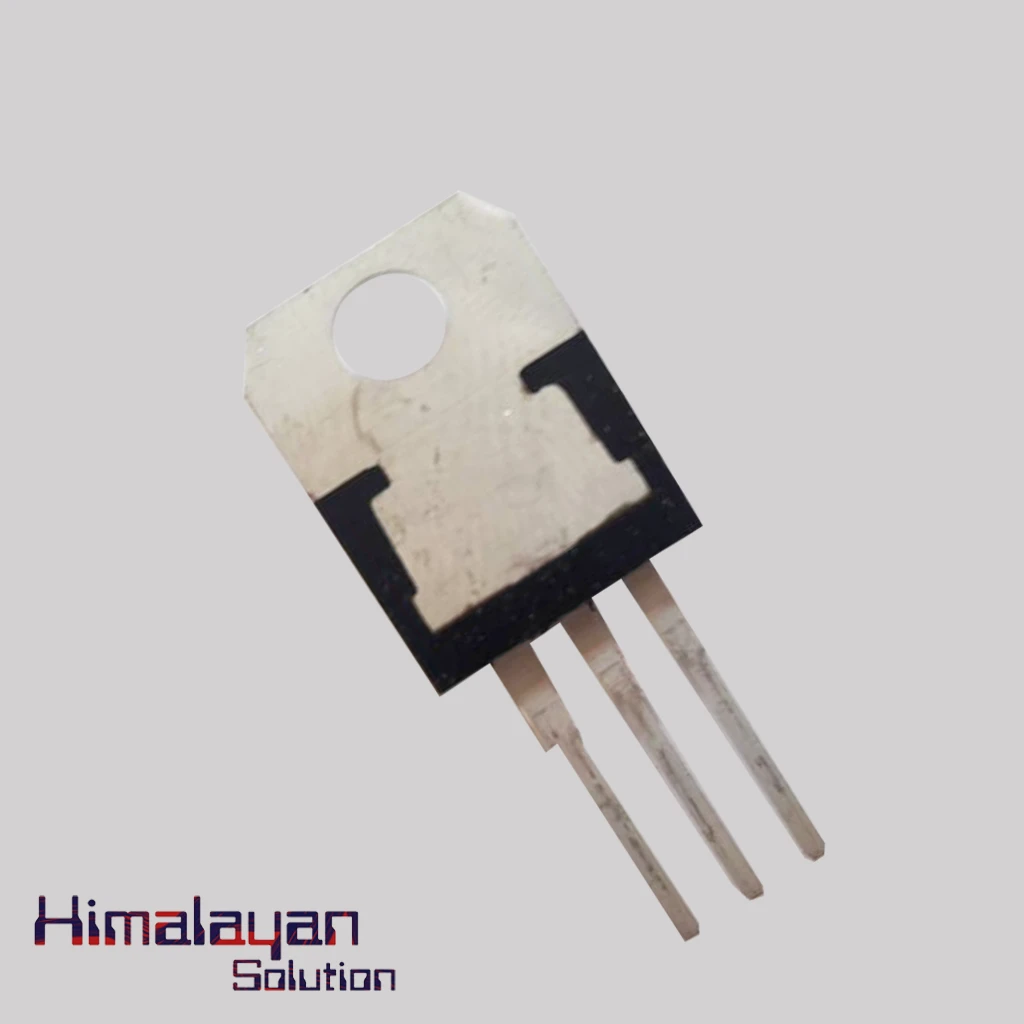

Lm 7805 IC

0 /5.0 (0 reviews)
SKU HS454

The L7805CV Linear Voltage Regulator is third terminal regulator which can remove problems that are related with single point regulation by providing local on-card regulation. It has  feature of safe area protection with the addition of internal thermal shutdown and current limiting. It can be  applicable in a wide ran...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The L7805CV Linear Voltage Regulator is third terminal regulator which can remove problems that are related with single point regulation by providing local on-card regulation. It has  feature of safe area protection with the addition of internal thermal shutdown and current limiting. It can be  applicable in a wide range of applications within the electronics Industry.

Specifications

15
Name
LM 7805 IC
Output Voltage
5 V
Maximum Output Current
1.5A
Output Type
Fixed
Mounting Type
Through Hole
Maximum Input Voltage
40 V
Pin Count
3
Operating Temperature
0 °C To +125 °C
Number Of Outputs
1
Polarity
Positive
Typical Dropout Voltage @ Current
2 V @ 1 A
Line Regulation
100 mV
Dimensions
10.4 x 4.6 x 15.75mm
Load Regulation
100 mV
Quiescent Current
8mA
