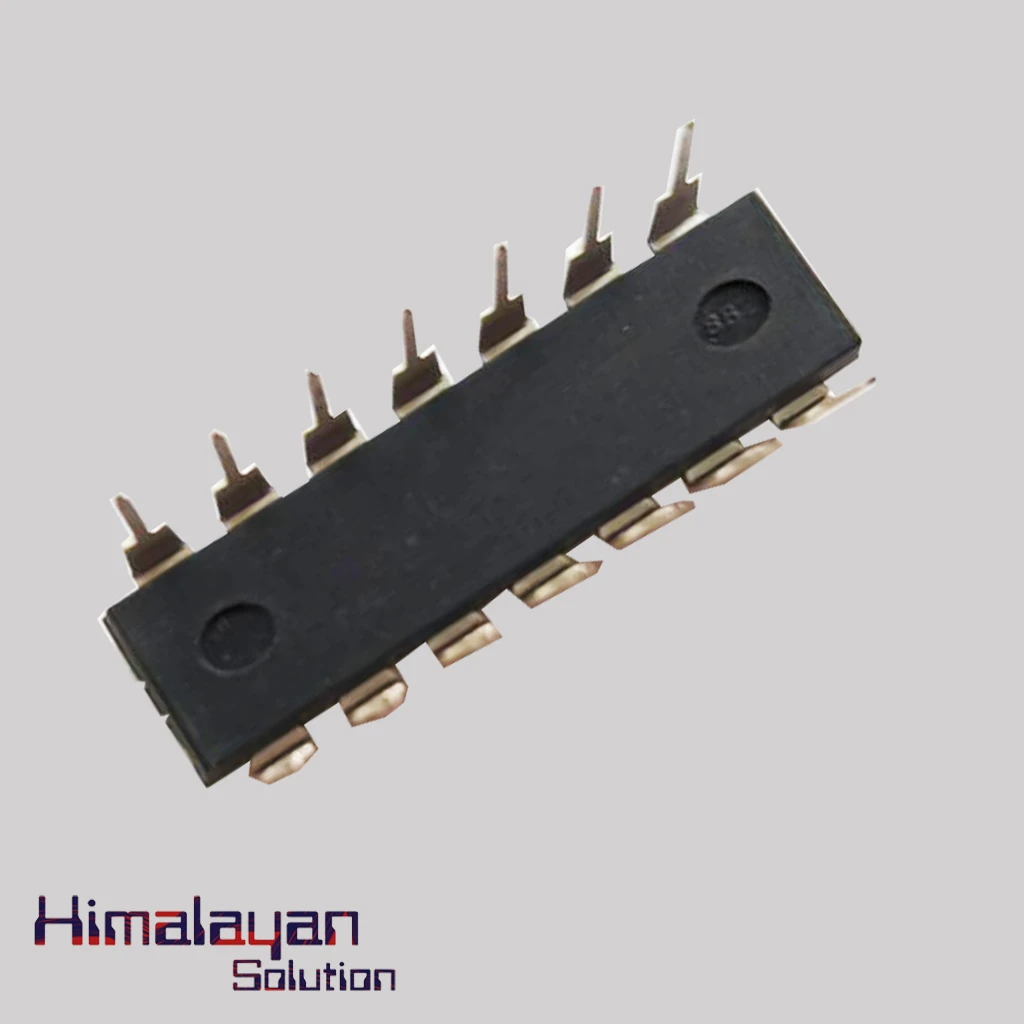

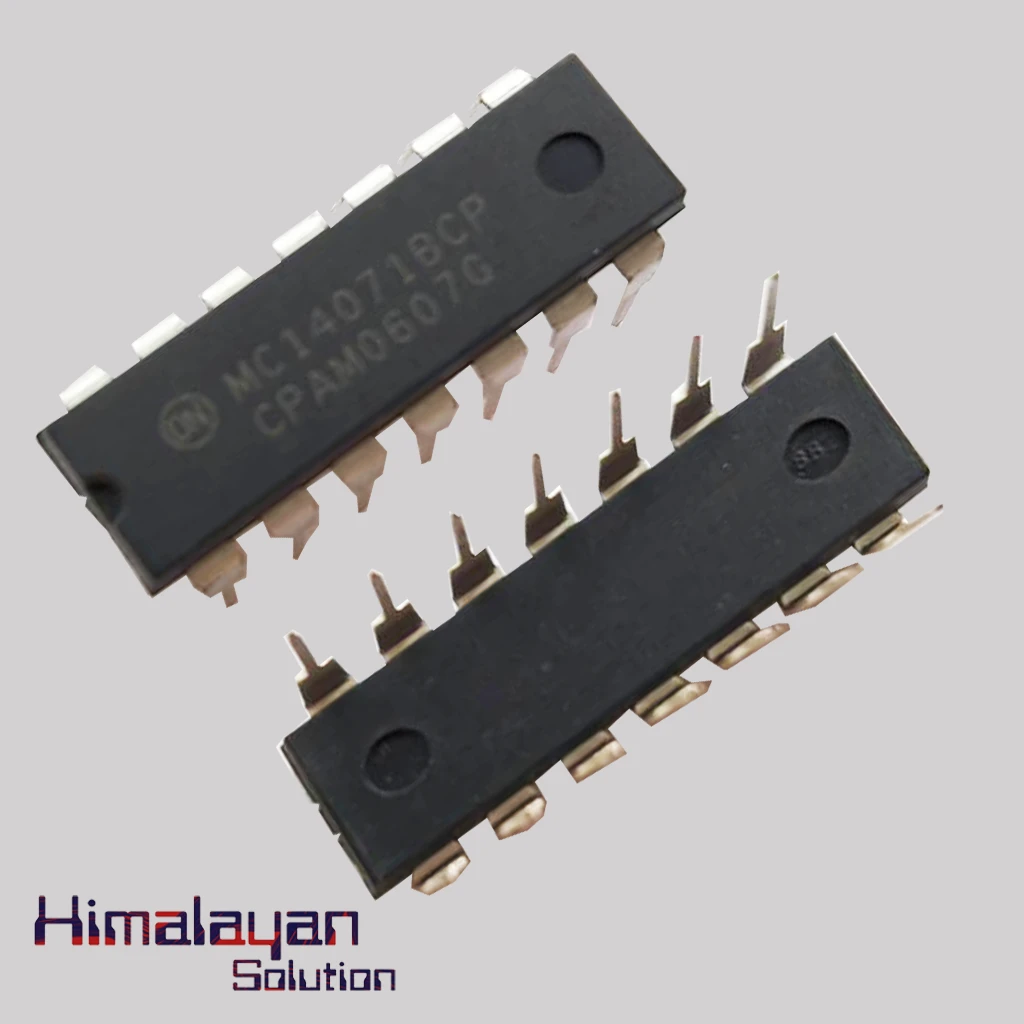

MC14071BCP IC

0 /5.0 (0 reviews)
SKU HS386

The MC14071BCP IC is a integrated circuit that belongs to B-suffix series of CMOS gates. Its logic gates are constructed with P and N channel enhancement devices in a single monolithic structure CMOS. It is useful where low power dissipation or high noise immunity is desired.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The MC14071BCP IC is a integrated circuit that belongs to B-suffix series of CMOS gates. Its logic gates are constructed with P and N channel enhancement devices in a single monolithic structure CMOS. It is useful where low power dissipation or high noise immunity is desired.

Specifications

15
Name
MC14071BCP IC
Logic Function
OR
Number Of Gates
4 Gate
Number Of Input Lines
2 Input
Number Of Output Lines
1 Output
High Level Output Current
- 4.2 mA
Low Level Output Current
4.2 mA
Propagation Delay Time
300 ns
Supply Voltage Range
3V to 18V
Operating Temperature Range
- 55 to + 125 degree celsius
Mounting Style
Through Hole
Height
3.68 mm
Length
19.56 mm
Width
6.6 mm
Quiescent Current
1.5 nA
