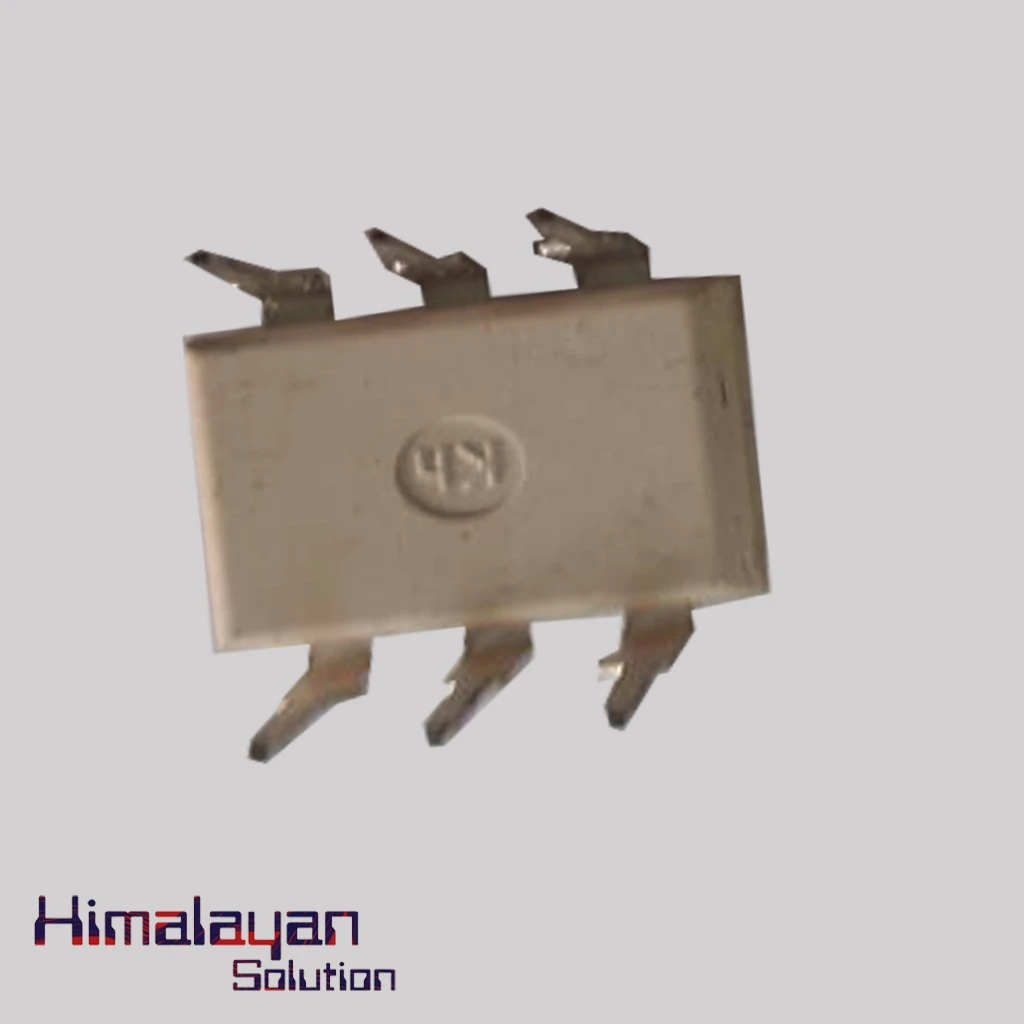

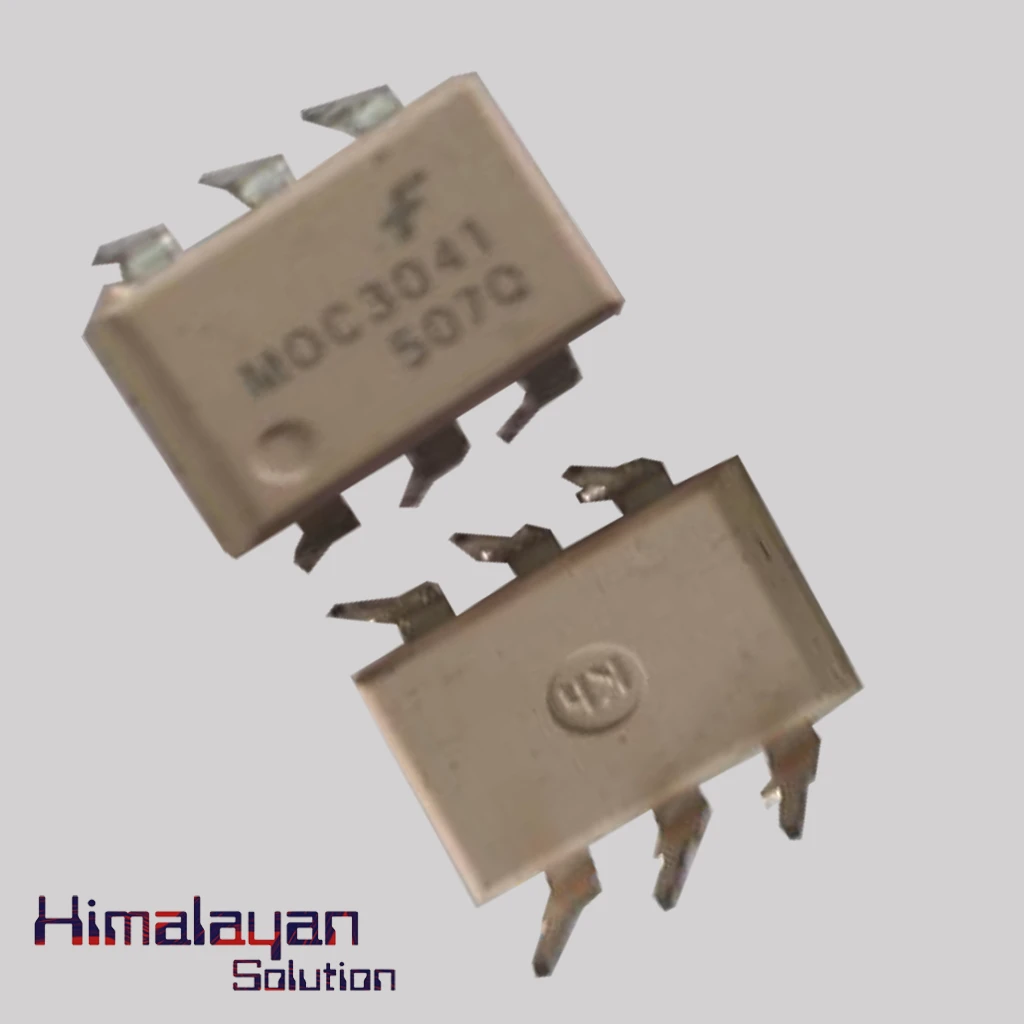

Moc 3041 IC

0 /5.0 (0 reviews)
SKU HS390

The MOC3041 IC is an electrical device that performs the function of a zero voltage crossing bilateral triac driver. It is designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines. It can be applicable in various fields such as : - Consumer appliances, Industrial motor and...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The MOC3041 IC is an electrical device that performs the function of a zero voltage crossing bilateral triac driver. It is designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines. It can be applicable in various fields such as : - Consumer appliances, Industrial motor and many more.

Specifications

15
Name
MOC3041 IC
Number Of Channels
1 Channel
Isolation Voltage
5250 Vrms
Forward Current
60 mA
Forward Voltage
1.25 V
Power Dissipation
250 mW
Off-state Output Voltage VDRM
400 V
Operating Temperature Range
- 40 C to + 85 Degree Celsius
Series
MOC3041M
Height
3.53 mm
Length
8.89 mm
Width
6.6 mm
Mounting Style
Through Hole
Maximum Trigger Current
15 mA
Zero Crossing Voltage
20 V
