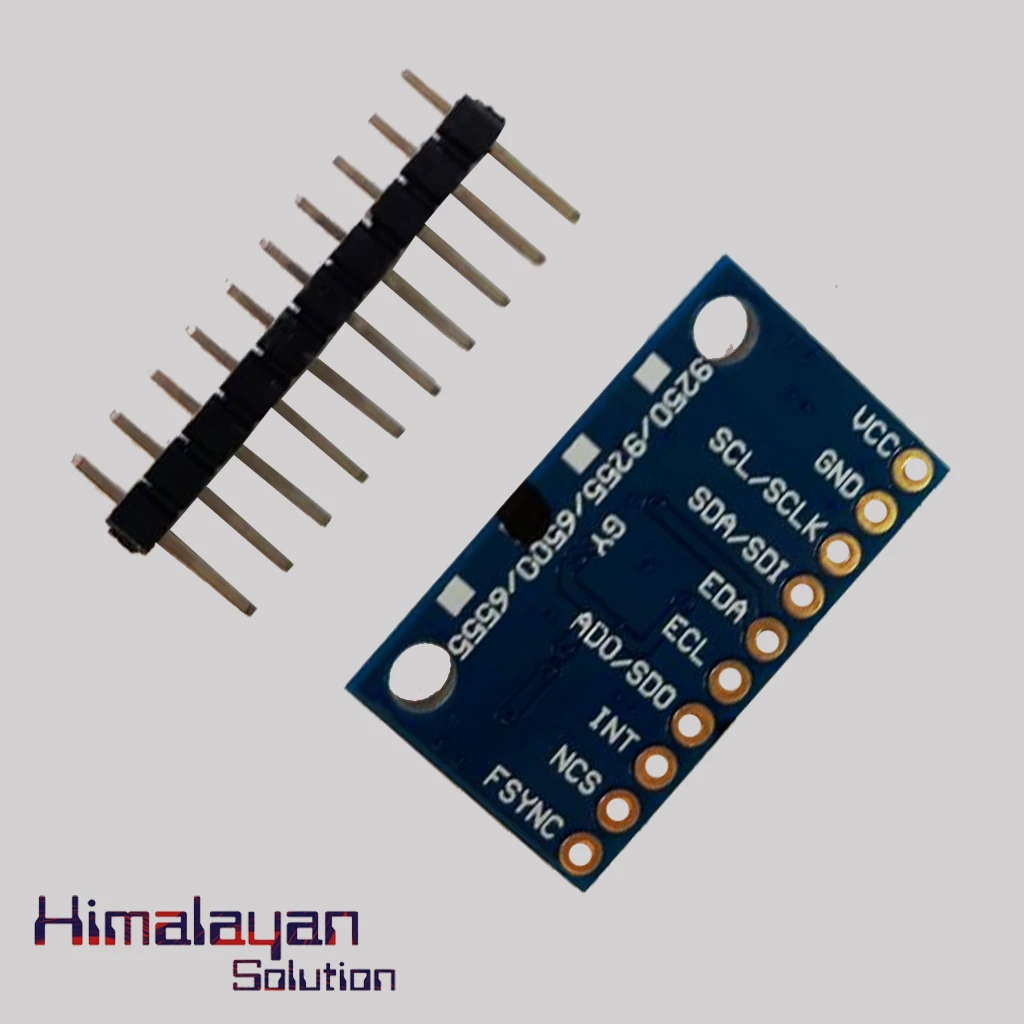

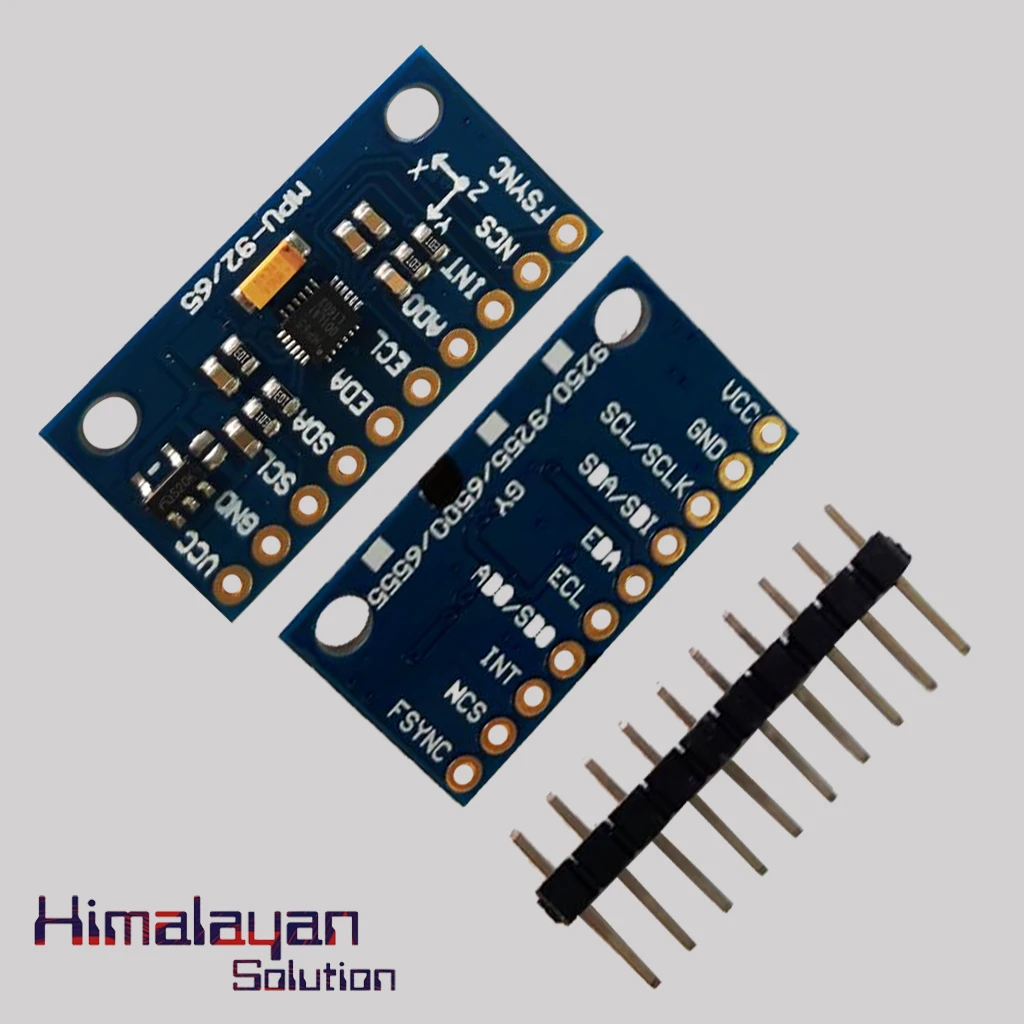

MPU 92/65 Gyroscope and accelerometer module 3 axis

0 /5.0 (0 reviews)
SKU 6

 The Mpu92/65 Module is three axis gyroscope + triaxial accelerometer module. It can be used for handset and portable gaming, motion command technology, motion –enabled game and application framework and many more. It use standard communication IIC / SPI communications protocol

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

 The Mpu92/65 Module is three axis gyroscope + triaxial accelerometer module. It can be used for handset and portable gaming, motion command technology, motion –enabled game and application framework and many more. It use standard communication IIC / SPI communications protocol

Specifications

14
 Power Voltage
3~5V
Communication
standard IIC Communication Protocol
Accelerometer Normal Operating Current
450µA
Gyroscope Operating Current
3.2mA
Sleep Mode Current
8µA
Accelerometer Range
Up To ± 16 g
Accelerometer Sensitivity
Up To 16,384 LSB/g
Gyroscope Range
Up To ± 2000 deg/sec
Gyroscope Sensitivity
Up To 131 LSB/deg/sec
Magnetometer Range
+/-4800uF
Magnetometer Sensitivity
0.6 µT/LSB
Pin Spacing
2.54mm
Size
15mm*25mm
Weight
2.72g
