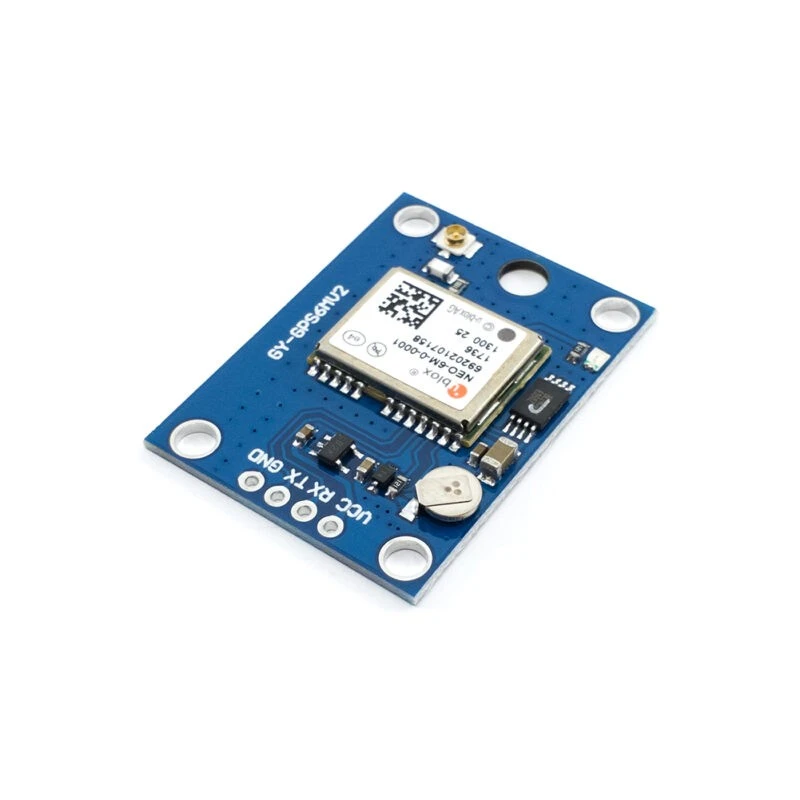

NEO-6M GPS Module

0 /5.0 (0 reviews)

Model: u-blox NEO-6M (Refurbished Module) Supply Voltage Range: 3VDC – 5VDC Comms Interface: UART Time-To-First-Fix (Cold / Warm Starts): 27 Seconds Time-To-First-Fix (Hot Start): 1 Second Sensitivity: As low as -147dBm Max Navigation Update Rate: 5Hz Horizontal Positional Accuracy (GPS): 2.5m On-board EEPROM and backu...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available
  • Model: u-blox NEO-6M (Refurbished Module)
  • Supply Voltage Range: 3VDC – 5VDC
  • Comms Interface: UART
  • Time-To-First-Fix (Cold / Warm Starts): 27 Seconds
  • Time-To-First-Fix (Hot Start): 1 Second
  • Sensitivity: As low as -147dBm
  • Max Navigation Update Rate: 5Hz
  • Horizontal Positional Accuracy (GPS): 2.5m
  • On-board EEPROM and backup battery which saves configuration data when powered off
  • Module Dimensions: ~(26.3mm x 35.5mm x 3.6mm)
  • Mounting Hole Diameter: ~3.2mm (M3)
  • Mounting Hole Spacing (Centre to Centre): Long Side: ~30.4mm / Short Side: ~20.1mm
  • Model: u-blox NEO-6M (Refurbished Module)
  • Supply Voltage Range: 3VDC – 5VDC
  • Comms Interface: UART
  • Time-To-First-Fix (Cold / Warm Starts): 27 Seconds
  • Time-To-First-Fix (Hot Start): 1 Second
  • Sensitivity: As low as -147dBm
  • Max Navigation Update Rate: 5Hz
  • Horizontal Positional Accuracy (GPS): 2.5m
  • On-board EEPROM and backup battery which saves configuration data when powered off
  • Module Dimensions: ~(26.3mm x 35.5mm x 3.6mm)
  • Mounting Hole Diameter: ~3.2mm (M3)
  • Mounting Hole Spacing (Centre to Centre): Long Side: ~30.4mm / Short Side: ~20.1mm
  • Model: u-blox NEO-6M (Refurbished Module)
  • Supply Voltage Range: 3VDC – 5VDC
  • Comms Interface: UART
  • Time-To-First-Fix (Cold / Warm Starts): 27 Seconds
  • Time-To-First-Fix (Hot Start): 1 Second
  • Sensitivity: As low as -147dBm
  • Max Navigation Update Rate: 5Hz
  • Horizontal Positional Accuracy (GPS): 2.5m
  • On-board EEPROM and backup battery which saves configuration data when powered off
  • Module Dimensions: ~(26.3mm x 35.5mm x 3.6mm)
  • Mounting Hole Diameter: ~3.2mm (M3)
  • Mounting Hole Spacing (Centre to Centre): Long Side: ~30.4mm / Short Side: ~20.1mm
