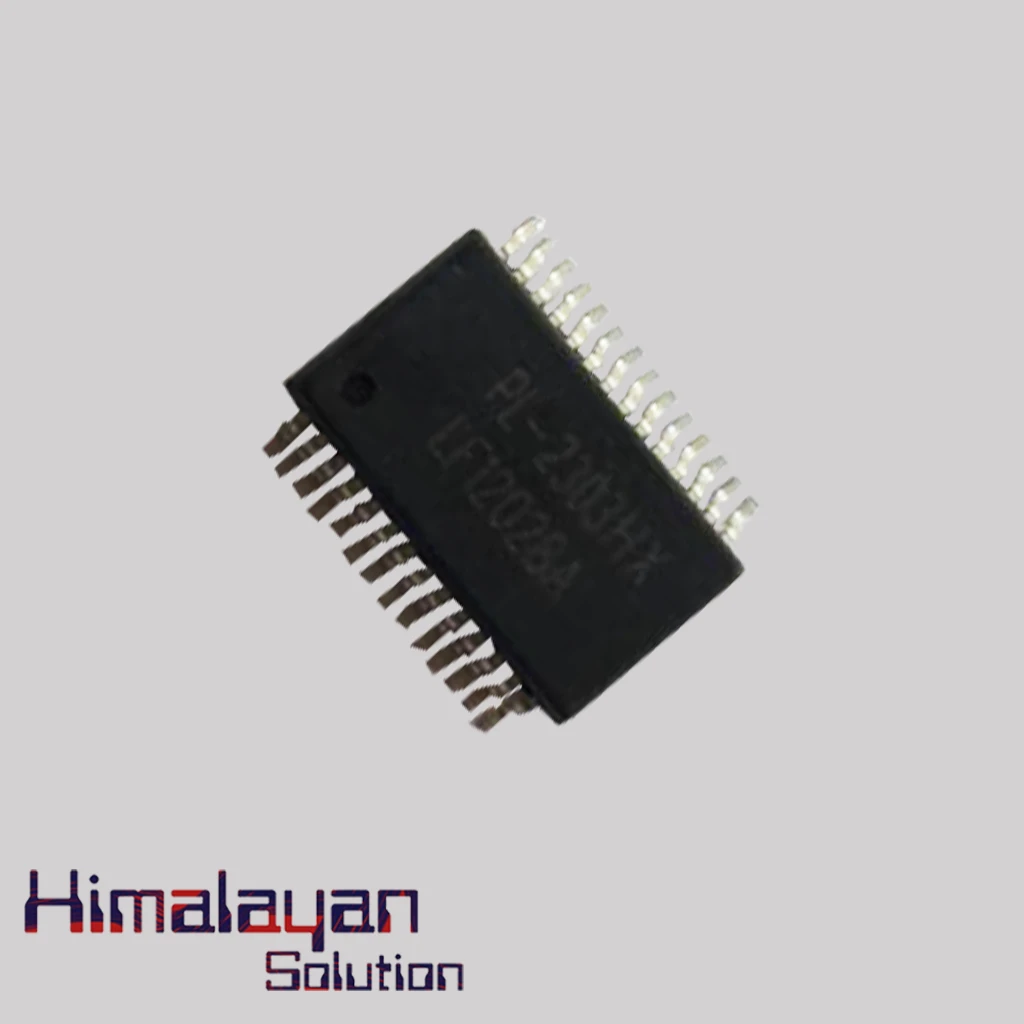

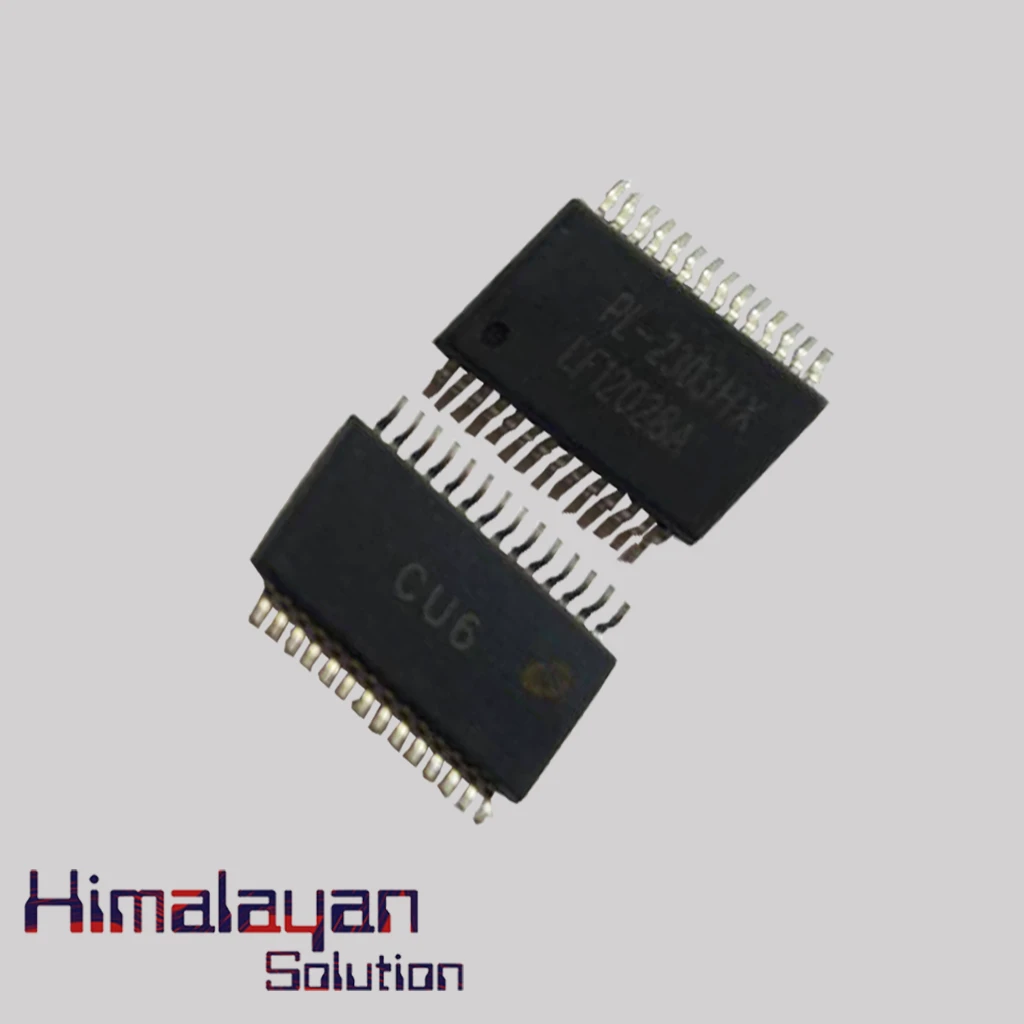

PL 2303HX IC

0 /5.0 (0 reviews)
SKU HS663

The PL-2303HX IC is a low cost and high performance USB to Serial Bridge Controller IC chip. It operates as a bridge between one USB port and one standard RS232 serial port. It has various features like: - Easily Supports with RS232 serial interface and also handshake mode, Supports remote wake-up and power management,...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The PL-2303HX IC is a low cost and high performance USB to Serial Bridge Controller IC chip. It operates as a bridge between one USB port and one standard RS232 serial port. It has various features like: - Easily Supports with RS232 serial interface and also handshake mode, Supports remote wake-up and power management, 256-Bytes buffer each for upstream and downstream data flow, On-chip USB transceiver, On-chip crystal oscillator running at 12MHz, Supports Windows 98/SE, ME, 2000, XP, Windows CE3.0, CE .NET, Linux, and Mac OS, Designed for Windows XP/2000 certified logo drivers and many more. It can be suitable for various applications like: - Making a controller based project USB compatible, Connection of modems to microcontrollers to PC via a USB connection, DIY projects for connecting to a COM port of a computer, Connection between various other components such as GSM module etc.

Specifications

8
Name
PL 2303HX IC
Power Supply Voltage Range
-0.3 V to 6.0 V
Input Voltage Range
-0.3 V to VDD+0.3 V
Output Voltage Range
-0.3 V to VDD+0.3 V
Storage Temperature Range
-55°C to 150°C
Operating Temperature Range
-40°C to 85°C
Frequency of Operation ( Crystal Oscillator)
12 MHz
Package Type
28-Pin SSOP
