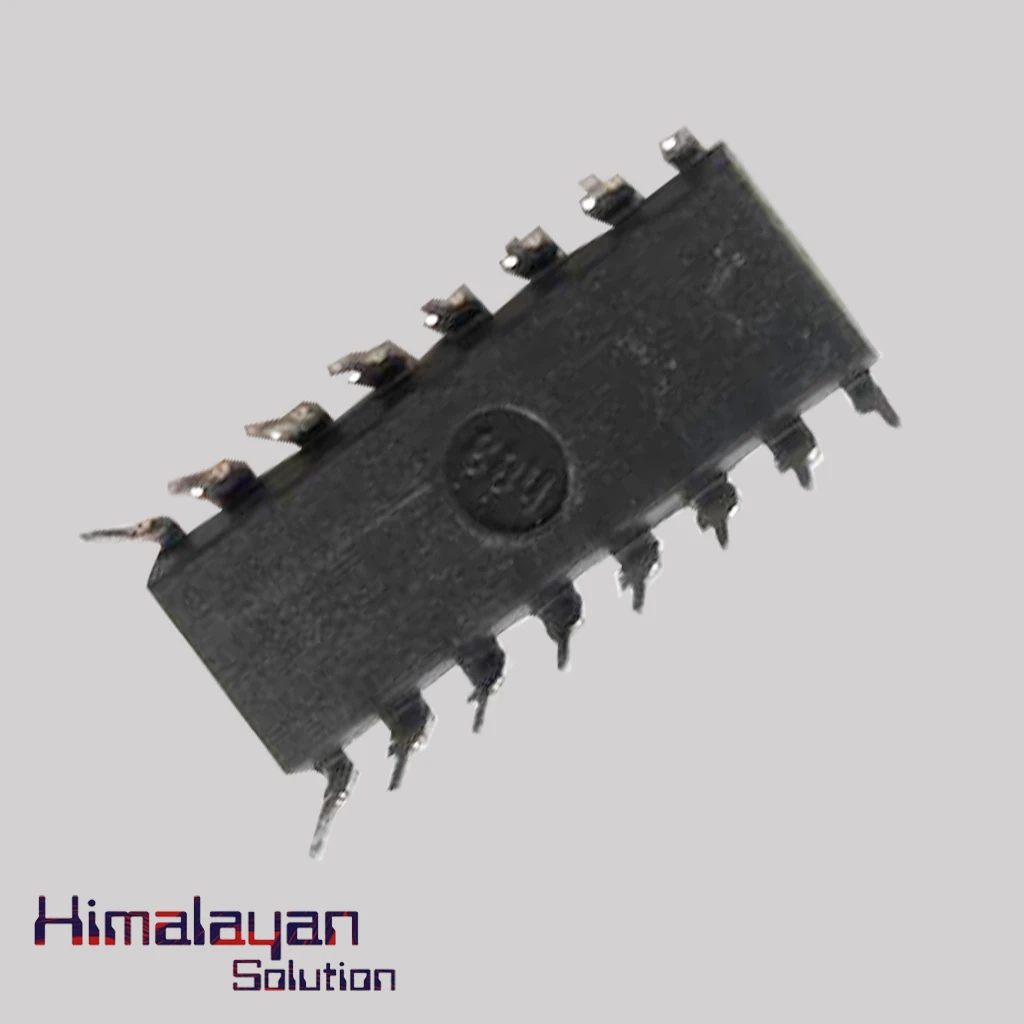

SN74247N IC

0 /5.0 (0 reviews)
SKU HS525

The Sn 74247n IC is a Low Power Schottky BCD TO 7-Segmnet decoder/Driver. It consists of NAND gates, input buffers and seven AND-OR-INVERT gates. It offers active LOW, high sink current outputs for driving indicators directly. It also accepts 4-bit binary-coded-decimal (BCD) and, depending on the state of the auxiliary...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The Sn 74247n IC is a Low Power Schottky BCD TO 7-Segmnet decoder/Driver. It consists of NAND gates, input buffers and seven AND-OR-INVERT gates. It offers active LOW, high sink current outputs for driving indicators directly. It also accepts 4-bit binary-coded-decimal (BCD) and, depending on the state of the auxiliary inputs, decodes this data to drive a 7-segment display
indicator. It can be applicable for various electrical and DIY projects.

Specifications

13
Name
Sn 74247n IC
Active Level
Low
Output Configuration
Open Collector
Sink Current
40 mA
Max Voltage
15V
Power Dissipation
320 mW
Package
J.N
Operating Temperature
0°C To 70°C
Supply Voltage Range
4.75 To 5.25 V
Off-State OutputVoltage
16 V
On-State Output Current
40 mA
High Level Output Current
-200 uA
Low-Level output Current
8 MA
