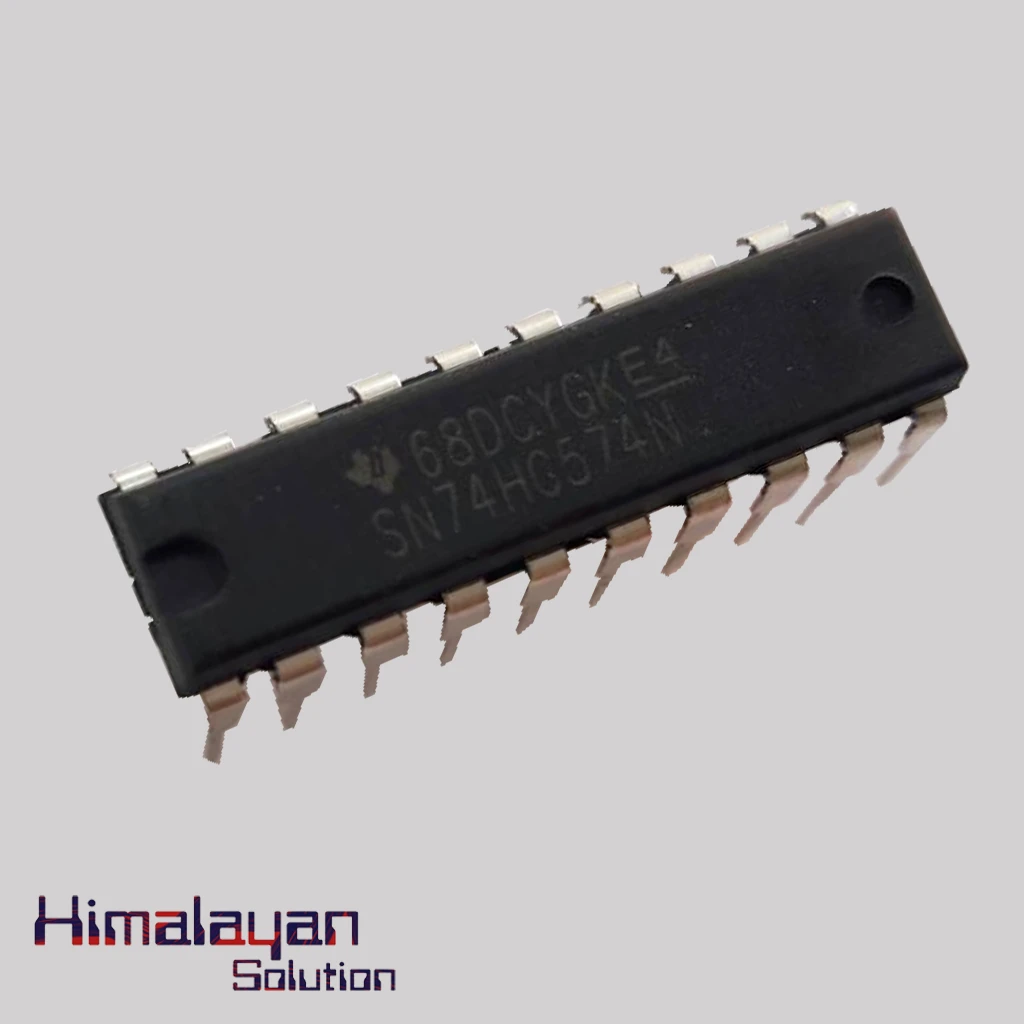

SN74HC574 IC

0 /5.0 (0 reviews)
SKU HS339

The SN74HC574N IC is a octal edge triggered D-type flip-flops with 3- state outputs. It is specially designed for bus driving. It is also suitable for various things like: - implementing buffer registers, I/O ports, bidirectional bus drivers, working resisters and many more

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The SN74HC574N IC is a octal edge triggered D-type flip-flops with 3- state outputs. It is specially designed for bus driving. It is also suitable for various things like: - implementing buffer registers, I/O ports, bidirectional bus drivers, working resisters and many more

Specifications

11
Name
SN74HC574N IC
3-State Output
Yes
Voltage(Nom)(V)
3.3,5
Bits
8
ICC @ Nom Voltage(Max)(mA)
0.08
F @ Nom Voltage(Max)(Mhz)
28
Operating Temperature Range(C)
-40 to 85
Technology Family
HC
Schmitt Trigger
No
Tpd @ Nom Voltage(Max)(ns)
38
VCC(Max)(V)
6
