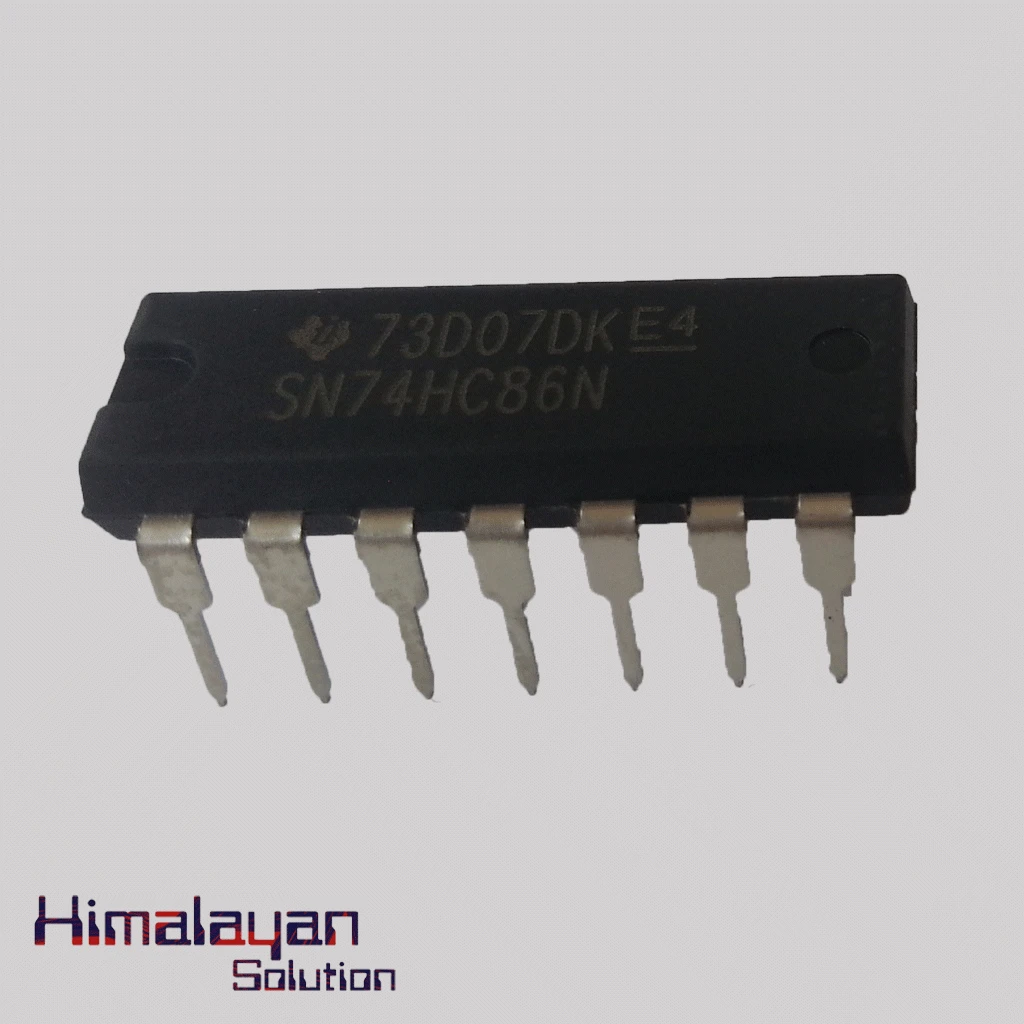

SN74HC86N IC

0 /5.0 (0 reviews)
SKU HS808

The SN74HC86N is a quadruple 2-input Exclusive-OR Gate performs the Boolean function Y = A * B or Y = A\\B + A(B\\) in positive logic. A common application is as a true/complement element. If one of the inputs is low the other input is reproduced in true form at the output. If one of the inputs is high the signal on th...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The SN74HC86N is a quadruple 2-input Exclusive-OR Gate performs the Boolean function Y = A * B or Y = A\\B + A(B\\) in positive logic. A common application is as a true/complement element. If one of the inputs is low the other input is reproduced in true form at the output. If one of the inputs is high the signal on the other input is reproduced inverted at the output. It has a wide operating voltage range and  has low power consumption.

Specifications

13
Name
SN74HC86N IC
Series
74HC
Logic Type
XOR (Exclusive OR)
Number of Circuits
4
Number of Inputs
2
Voltage Supply
2 to 6 V
Current Quiescent
2µA MAX
Current-Output High,Low
5.2 mA, 5.2 mA
Logic Level-Low
0.5 to 1.8 V
Logic Level-High
1.5V to 4.2V
Max Propagation Delay @V,Max CL
17ns@6V, 50 pF
Operating Temperature
-40° to 85° C
Mounting Type
Through Hole
