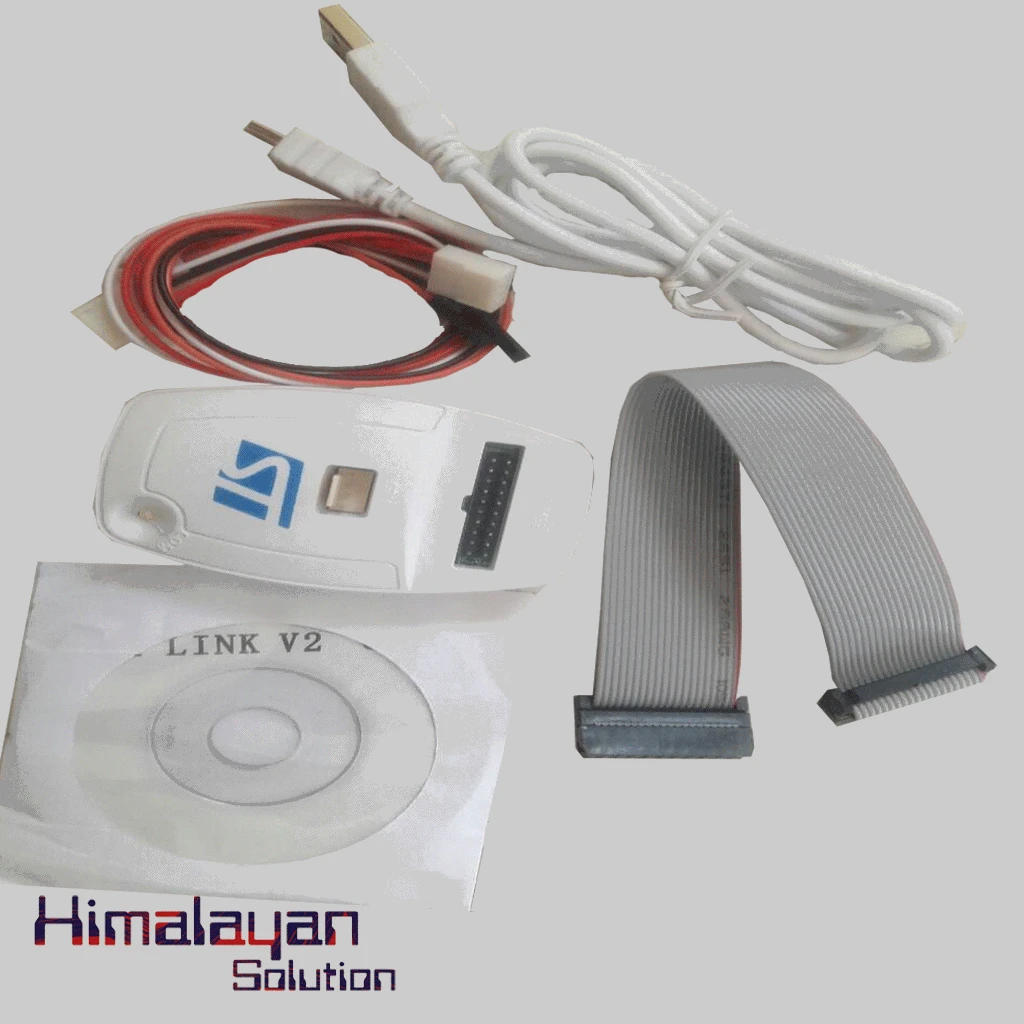

ST-LINK/V2 (Debugging and Programming)

0 /5.0 (0 reviews)
SKU HS128

The ST-LINK/V2 is an in-circuit debugging and programming for the microcontroller families STM8 and STM32 . The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used.  To communicate with any STM8 or STM32 microcontroller located on an application board the SWIM (single wire inter...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The ST-LINK/V2 is an in-circuit debugging and programming for the microcontroller families STM8 and STM32 . The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used.  To communicate with any STM8 or STM32 microcontroller located on an application board the SWIM (single wire interface module)  and SWD (JTAG/serial wire debugging interfaces) are used. It has a direct firmware update feature supported as well as status LED which blinks during communication with the PC. It has USB 2.0 full speed compatible interface.

Specifications

11
Power Supplied
5 V
Cable
USB Standard A to Mini- B
Operating Temperature
0 to 50 °C
Core
ARM, STM8
Data Bus Width
8 bit
Interface Type
JTAG, USB
Application Voltage (SWIM)
1.65 V to 5.5 V
Application Voltage (SWD)
1.65 V to 3.6 V
Programming-Speed Rate (Low Speed) (SWIM)
9.7 Kbytes/s
Programming-Speed Rate (High Speed) (SWIM)
12.8 Kbytes/s
Pitch Connector (SWIM)
2.54 mm
