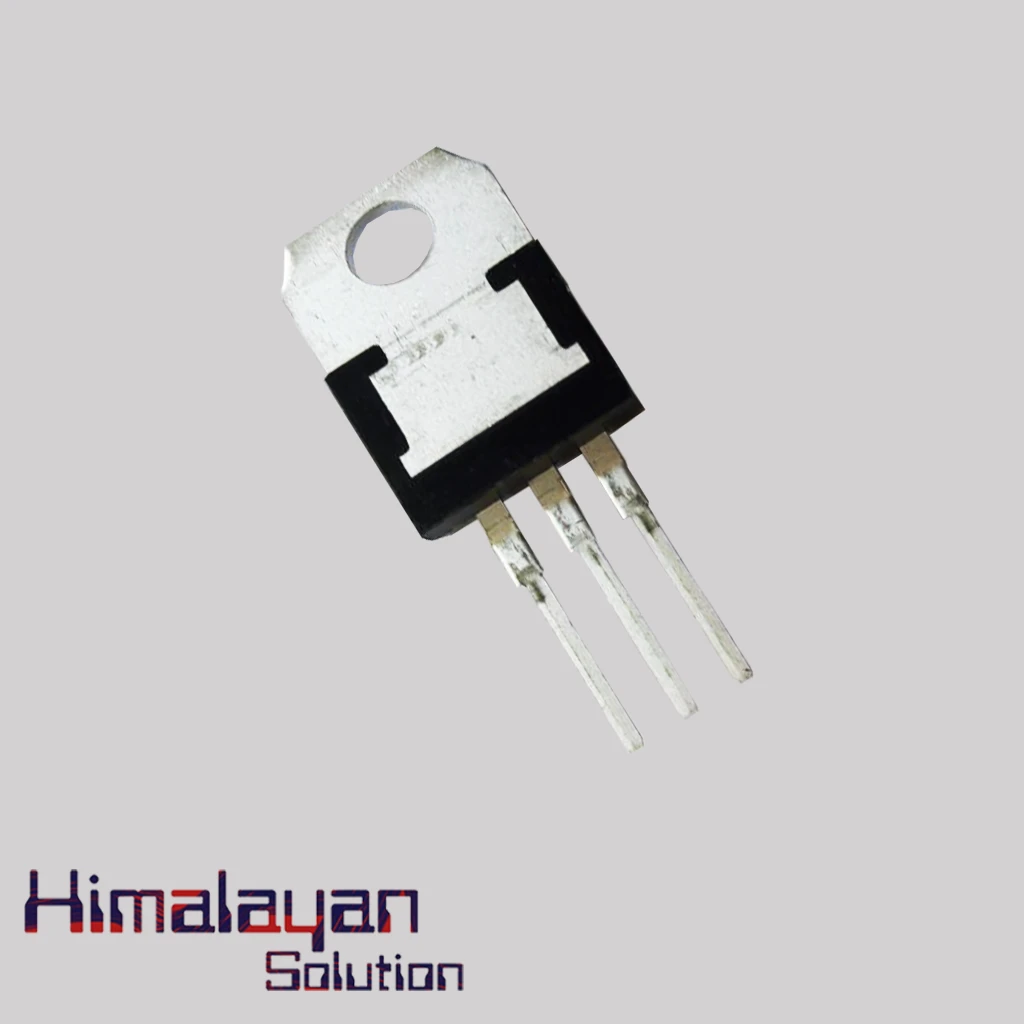

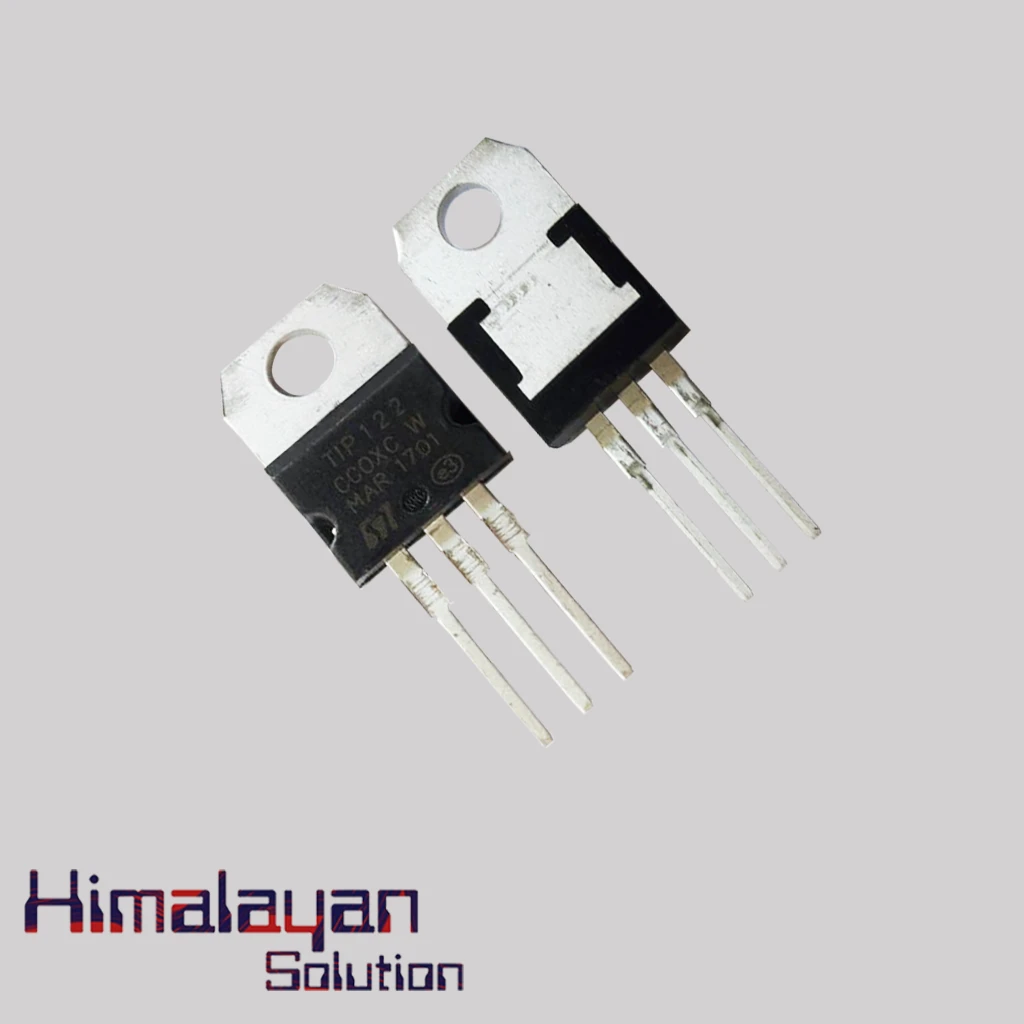

TIP 122 IC

0 /5.0 (0 reviews)
SKU HS660

The TIP 122 IC is a Medium Power Darlington Bipolar Transistor which is designed for general purpose amplifier and low speed switching applications. It has various features like: - High DC current gaining capacity, Monolithic construction, Collector to emitter sustaining voltage, Low collector to emitter saturation vol...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The TIP 122 IC is a Medium Power Darlington Bipolar Transistor which is designed for general purpose amplifier and low speed switching applications. It has various features like: - High DC current gaining capacity, Monolithic construction, Collector to emitter sustaining voltage, Low collector to emitter saturation voltage, Pb-free packaged and many more.

Specifications

13
Name
TIP 122 IC
Collector- Emitter Voltage (VCEO) (Max)
100 V
Emitter- Base Voltage (VEBO)
5 V
Collector- Base Voltage (VCBO)
100 V
Maximum DC Collector Current
5 A
Maximum Collector Cut-off Current
200 uA
Mounting Style
Through Hole
Package / Case
TO-220 AB
Operating Temperature Range
-65°C to 150°C
Transistor Polarity
NPN
Height
9.4 mm
Length
10.67 mm
Width
4.83 mm
