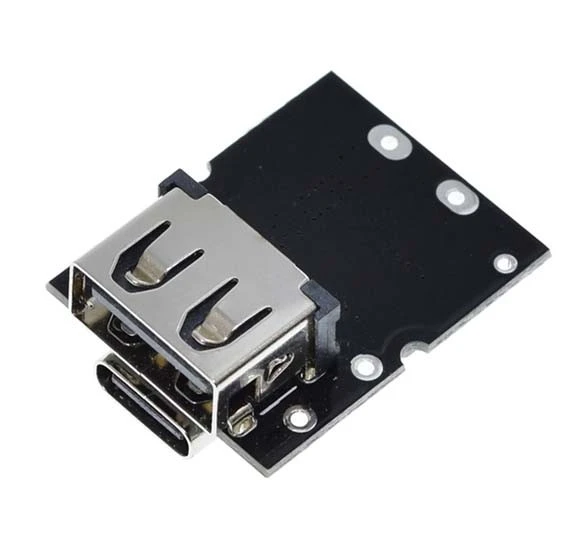

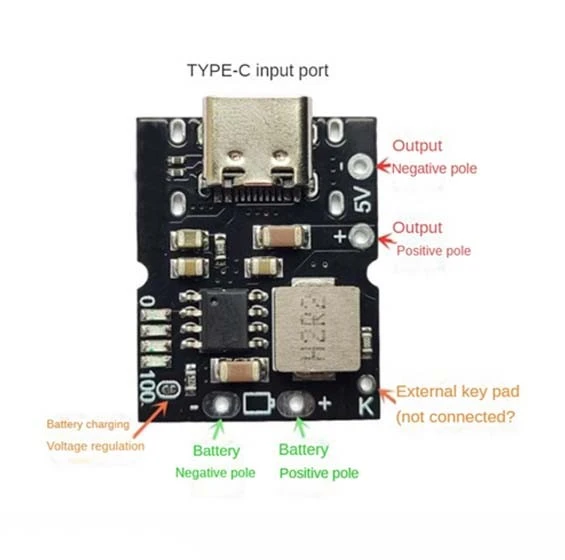

Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board

• Input voltage range: 5 - 5.5V
• Charging cut-off voltage: (4.2v/4.35v) ± 0.5%
• Charging current: 2.4a ± 5%
• Boost output voltage: 5V - 5.15v (line loss compensation)
• Boost output voltage ripple: 100mV
• Boost output current: 2A

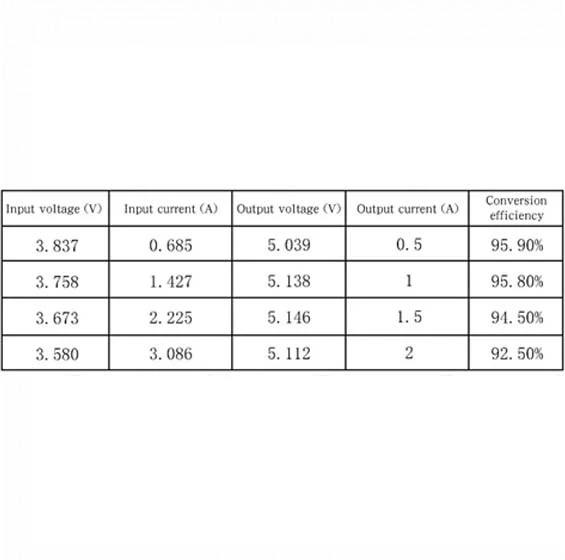

• Boost conversion efficiency:92.5% (3.6V input, 5v2a output)

• Type-C input, high accuracy of charging voltage.

It supports discharging while charging.

Note:power off operation is required to adjust the charging voltage setting

Input voltage range:5 - 5.5V

Charging cut-off voltage:(4.2v/4.35v) ± 0.5%

Charging current:2.4a ± 5%

Boost output voltage:5V - 5.15v (line loss compensation)

Boost output voltage ripple:100mV

Boost output current:2A

Boost conversion efficiency:92.5% (3.6V input, 5v2a output)

Static current at battery end:Less than 30uA

Version:With Welding

Colour:Black
