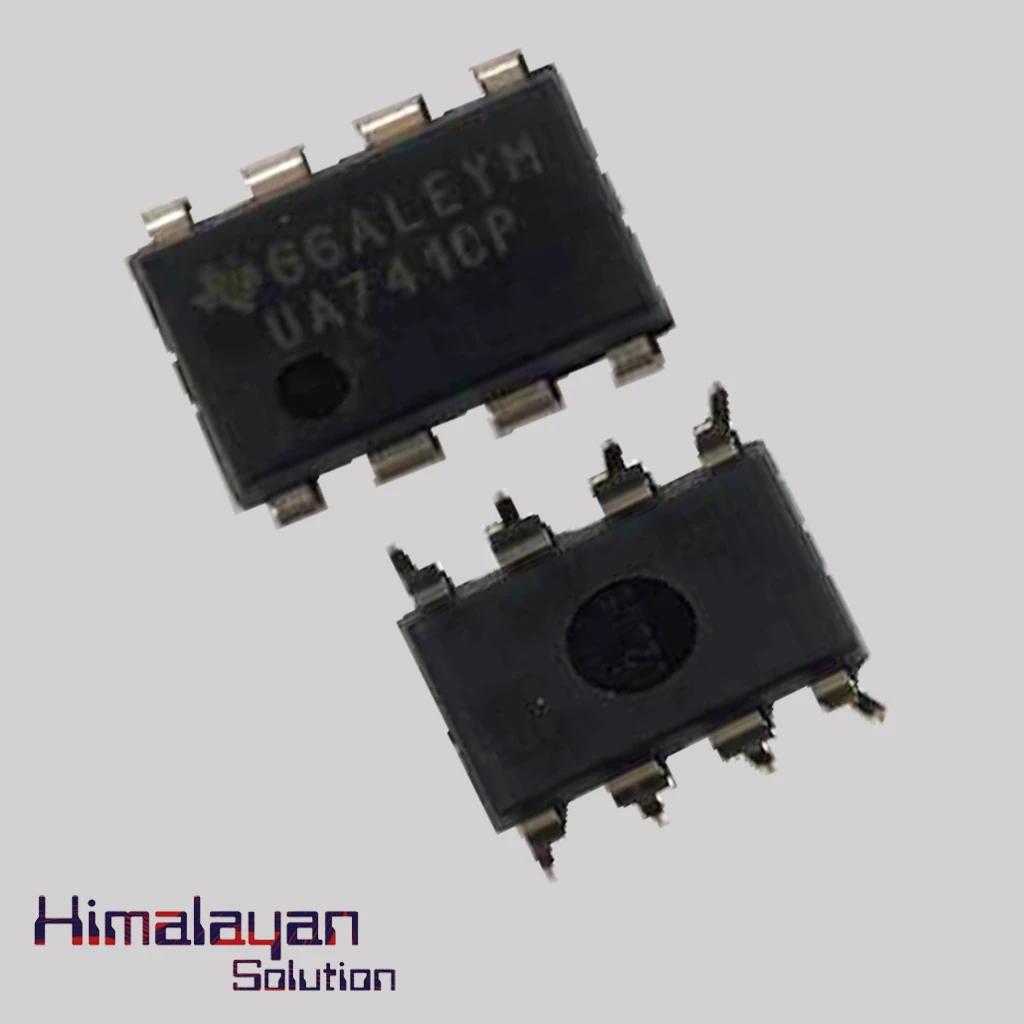

UA 741 IC

0 /5.0 (0 reviews)
SKU HS299

 The UA 741 is a monolithic operational amplifier constructed on a single chip. It has features like short circuit protection, offset voltage null capability, no latch up etc.  It is used in wide range of analog application like active filter, function generator, summing amplifier and many more.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

 The UA 741 is a monolithic operational amplifier constructed on a single chip. It has features like short circuit protection, offset voltage null capability, no latch up etc.  It is used in wide range of analog application like active filter, function generator, summing amplifier and many more.

Specifications

20
Slew Rate
0.5 V/µs
Current Input Bias
80nA
Current Supply
1.7mA
Voltage Supply, Single/Dual (±)
7 V ~ 36 V, ±3.5 V ~ 18 V
Mounting Type
Through Hole
Number Of Channels
1
Input Voltage Range (Max)
Positive Rail - 3 V
Input Offset Voltage
6 mV
Operating Supply Voltage
36 V
Maximum Power Dissipation
500 mW
Number Of Circuits
1
Gain Bandwidth Product
1MHz
Voltage Input Offset
1000µV
Current Output / Channel
25mA
Operating Temperature
0°C ~ 70°C
Package / Case
8-DIP (0.300\", 7.62mm)
Common Mode Rejection Ratio (Min)
70 dB
Input Voltage Range (Min)
Negative Rail + 3 V
Input Bias Current (Max)
500 nA
Supply Current
2.8 mA
