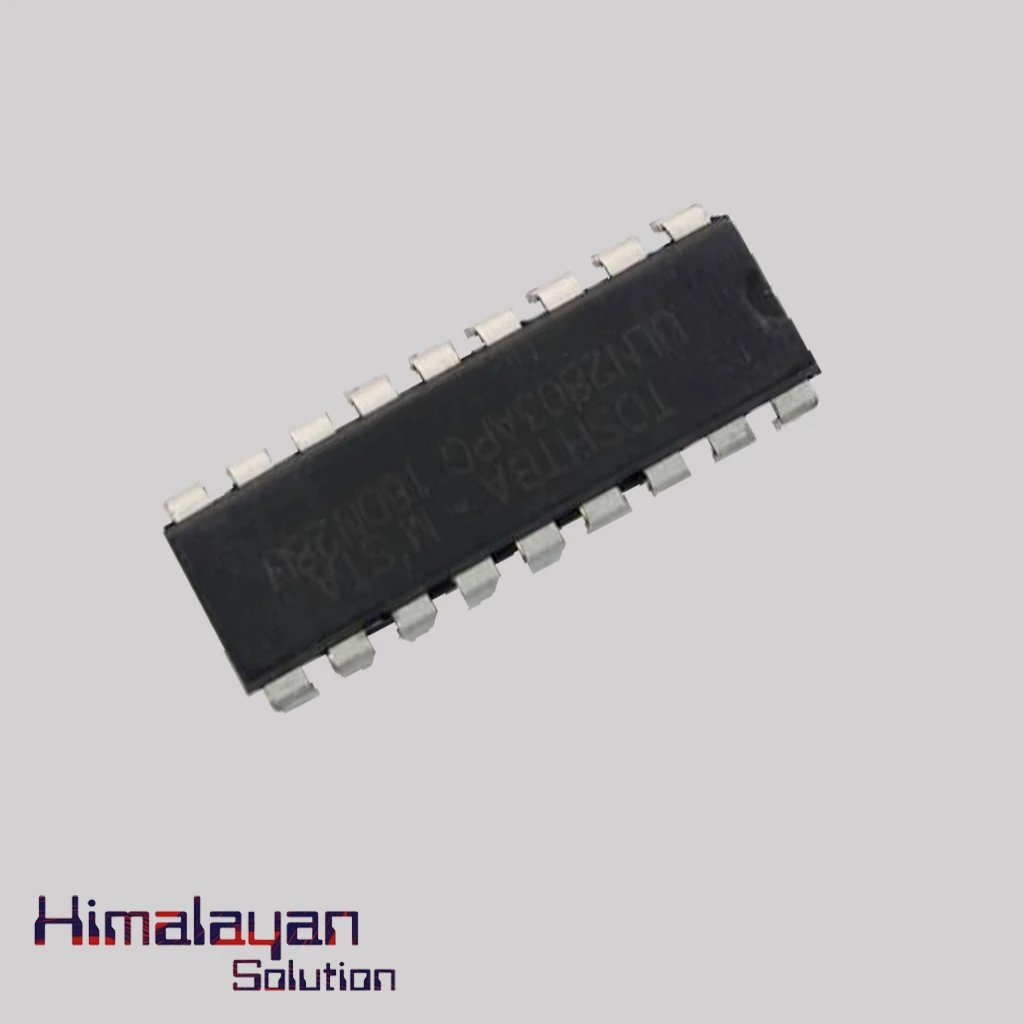

ULN 2803 IC

Name: ULN 2803 IC
Brand: Himalayan Solution
SKU: uln-2803-ic
Price: 55.00 NPR
Availability: InStock

Ask about this product

0 /5.0 (0 reviews)

SKU HS291

The ULN2803 is Darlington transistor array with a high voltage and high current. For switching the loads connected to the output it has eight NPN Darlington connected transistors with common clamp diodes. The input is compatible with various types of logic. It is also compatible with ULN2800A series. Its application a...

Inhouse product

Cash on delivery available

Specifications

Number Of Drivers/receivers

Eight

Mounting Type

Through Hole

Configuration

Octal

Mounting Style

Through Hole

Maximum Dc Collector Current

0.5 A

Continuous Collector Current

500 mA

Current, Base

25 mA

Current, Leakage Output

50 uA (Max.)

Package Type

DIP

Temperature, Range, Operating Ambient

-40 to 105 °C

Time, Turn-off Delay

0.25 μS (Typ.)

Transistor Type

Eight Darlington Transistors

Voltage, Output

50 V

Voltage - Supply

Transistor Polarity

NPN

Collector- Emitter Voltage Vceo Max

50 V

Maximum Operating Temperature

- 20 C to + 85 C

Input Capacitance

15 pF (Typ.)

Power Dissipation

2.25 W (Per Package)

Thermal Resistance, Junction To Ambient

55 °C⁄W

Time, Turn-on Delay

0.25 μS (Typ.)

Voltage, Input

30 V

Voltage, Saturation, Collector To Emitter

1.3 V (Typ.)

Protocol

Downloads & Resources

Datasheet for ULN 2803 IC

Datasheet

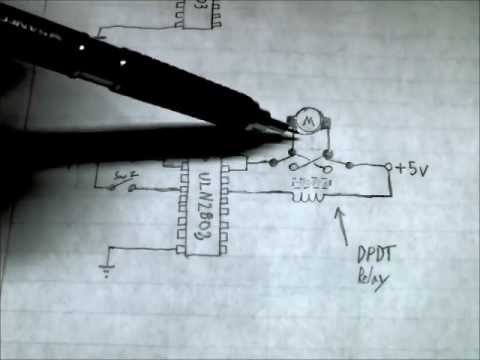

Video related to ULN 2803 IC

Video
