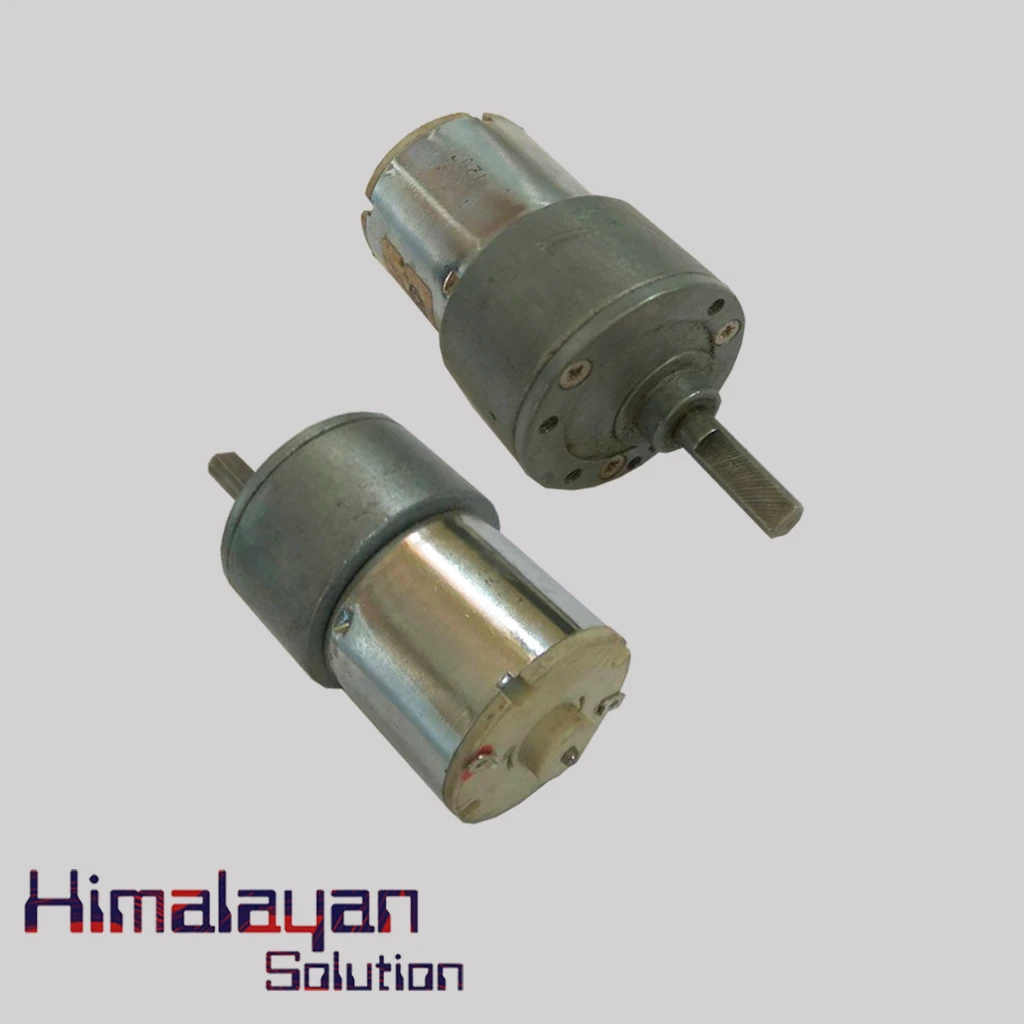

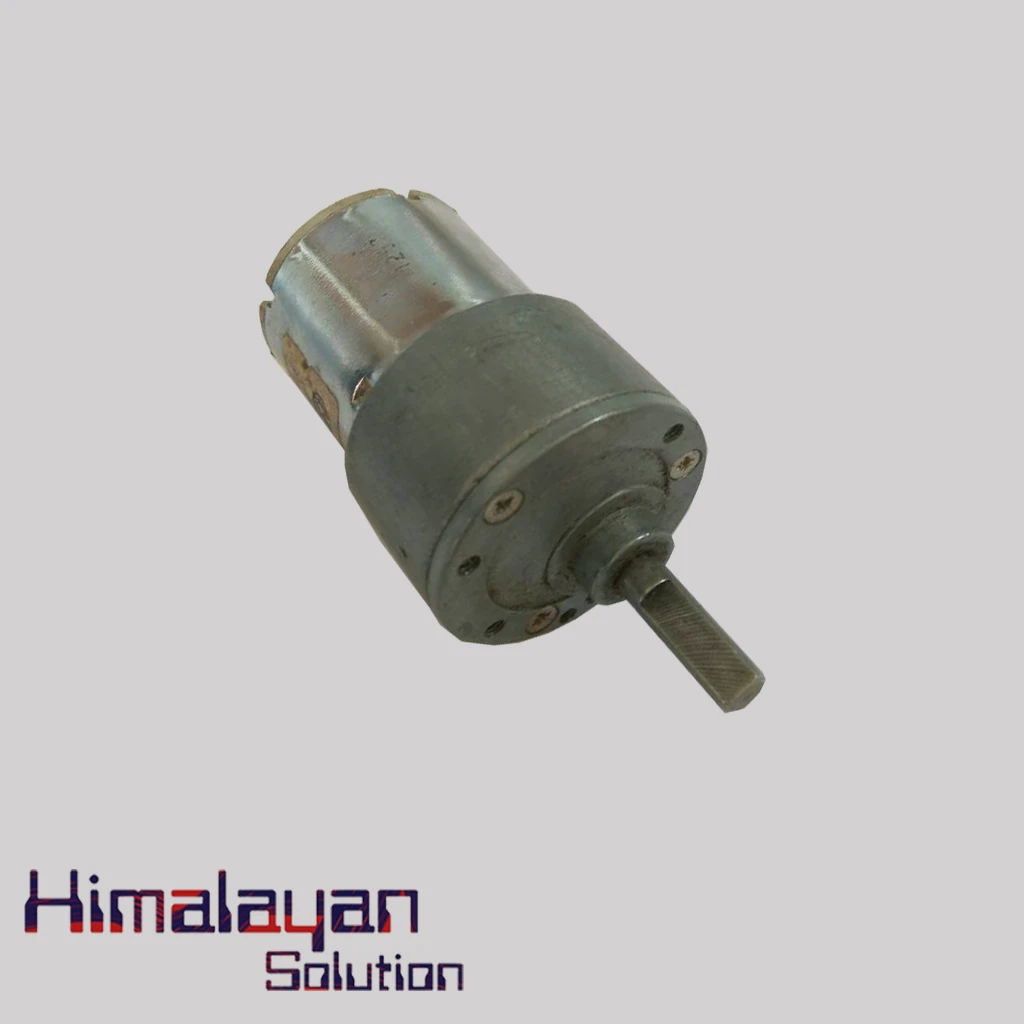

12 V 20 RPM Metal Gear Motor

0 /5.0 (0 reviews)
SKU HS759

The 12 V 20 RPM Gear Motor is a Low Power 12 Volts DC Motor Module with Spur Gearbox having 20 RPM. It has various features like: - It requires only 400 ma current to operate, Cost effective, simpler design, etc. It can be suitable for those applications that require low torque.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 12 V 20 RPM Gear Motor is a Low Power 12 Volts DC Motor Module with Spur Gearbox having 20 RPM. It has various features like: - It requires only 400 ma current to operate, Cost effective, simpler design, etc. It can be suitable for those applications that require low torque.

Specifications

11
Name
12 V 20 RPM Gear Motor
Brand
JYACHENG
Gearbox
Spur Gear
Rated Voltage
12 V (6 V to 12 V Range)
No-Load Current
120 mA
Rated Current
400 mA
No-Load Speed
20 RPM
Rated Torque
19 Kg-cm
Stall Torque
N/A (Will Result in Immediate Failure When Stalled)
Maximum Power
4.8 W
Weight
About 200 g
