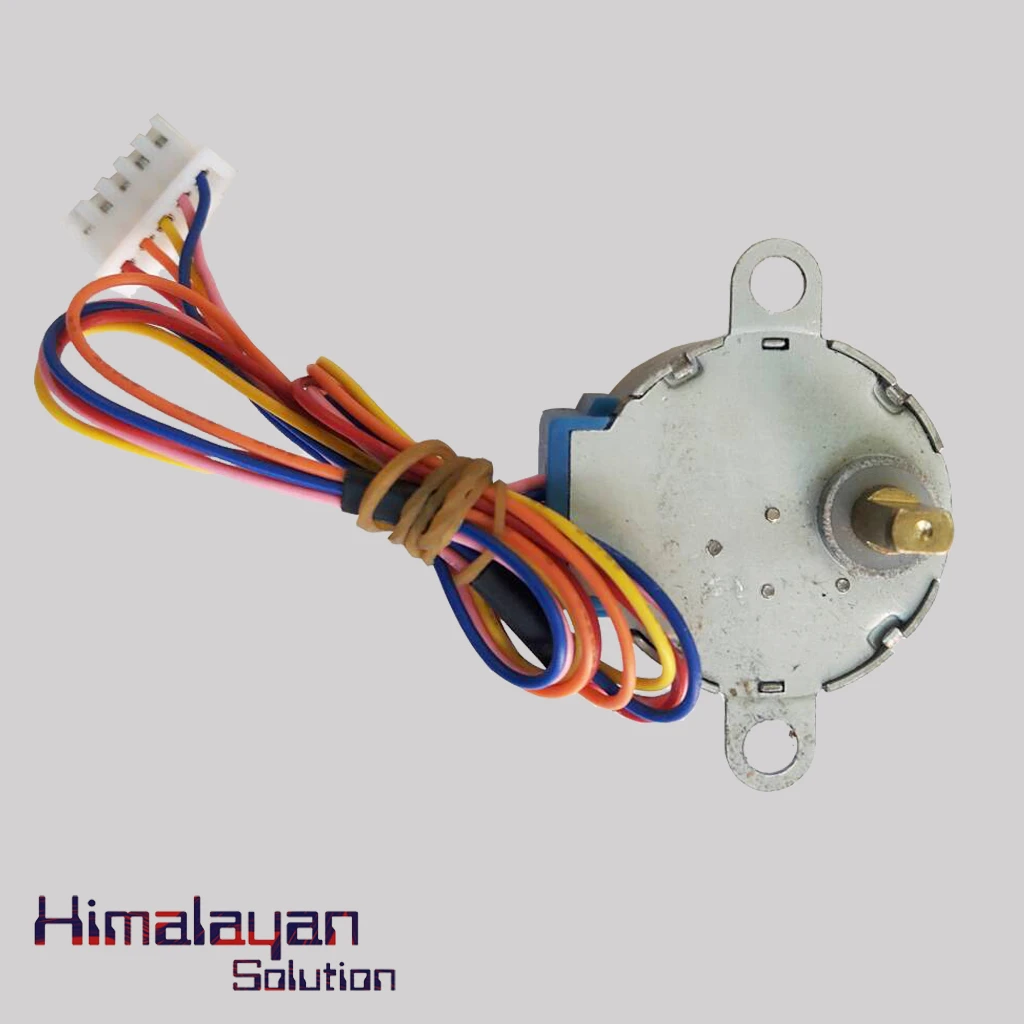

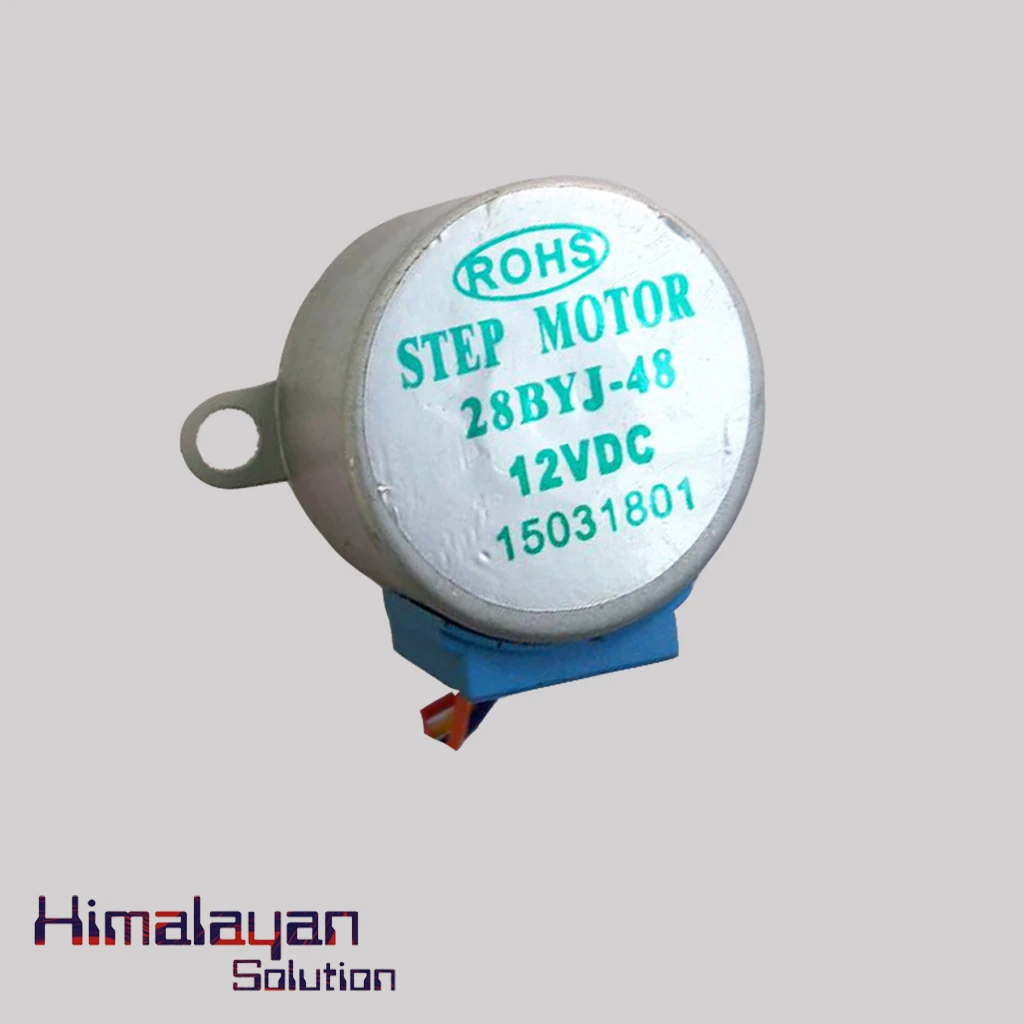

12V Stepper Motor

0 /5.0 (0 reviews)
SKU 2.35

The 12V Stepper Motor 28BYJ-48 With Stepper Motor Driver Board based on ULN2003 driver board. It is stable and high qualitative stepper motor. It is mainly used in Air Conditioner Louver, Small Cooling/Heating Fan and so on. Its technique parameters are qualified for national electronic standard i.e.  SJ/T10689-95.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 12V Stepper Motor 28BYJ-48 With Stepper Motor Driver Board based on ULN2003 driver board. It is stable and high qualitative stepper motor. It is mainly used in Air Conditioner Louver, Small Cooling/Heating Fan and so on. Its technique parameters are qualified for national electronic standard i.e.  SJ/T10689-95.

Specifications

16
Name
12V Stepper Motor
Model
28BYJ-48
Rated Voltage
12VDC
Number Of Pole
 4
Speed Variation Ratio
 1/64
Stride Angle
5.625° /64
DC resistance
200Ω±7%(25℃)
Idle In-traction Frequency
 >600Hz
Idle Out-traction Frequency
>1000Hz
In-traction Torque
>34.3mN.m(120Hz)
Self-Positioning Torque
>34.3mN.m
Insulated Resistance
 >10MΩ(500V)
Insulated Electricity Power
 600VAC/1mA/1s
Insulation Grade
A
Rise In Temperature
&nbsp;<40K(120Hz)
Noise&nbsp;
<40dB(120Hz,No load,10cm)
