5V Stepper Motor

0 /5.0 (0 reviews)
SKU 3.1

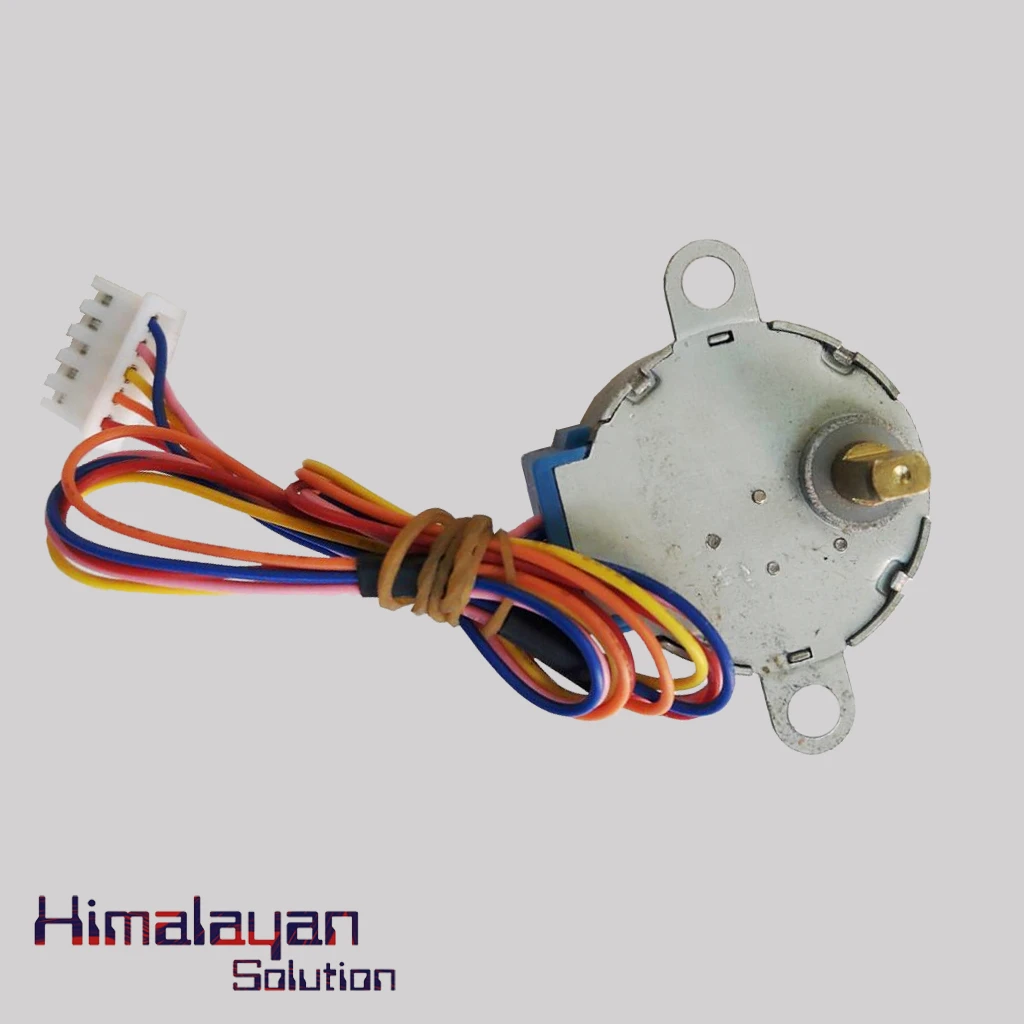

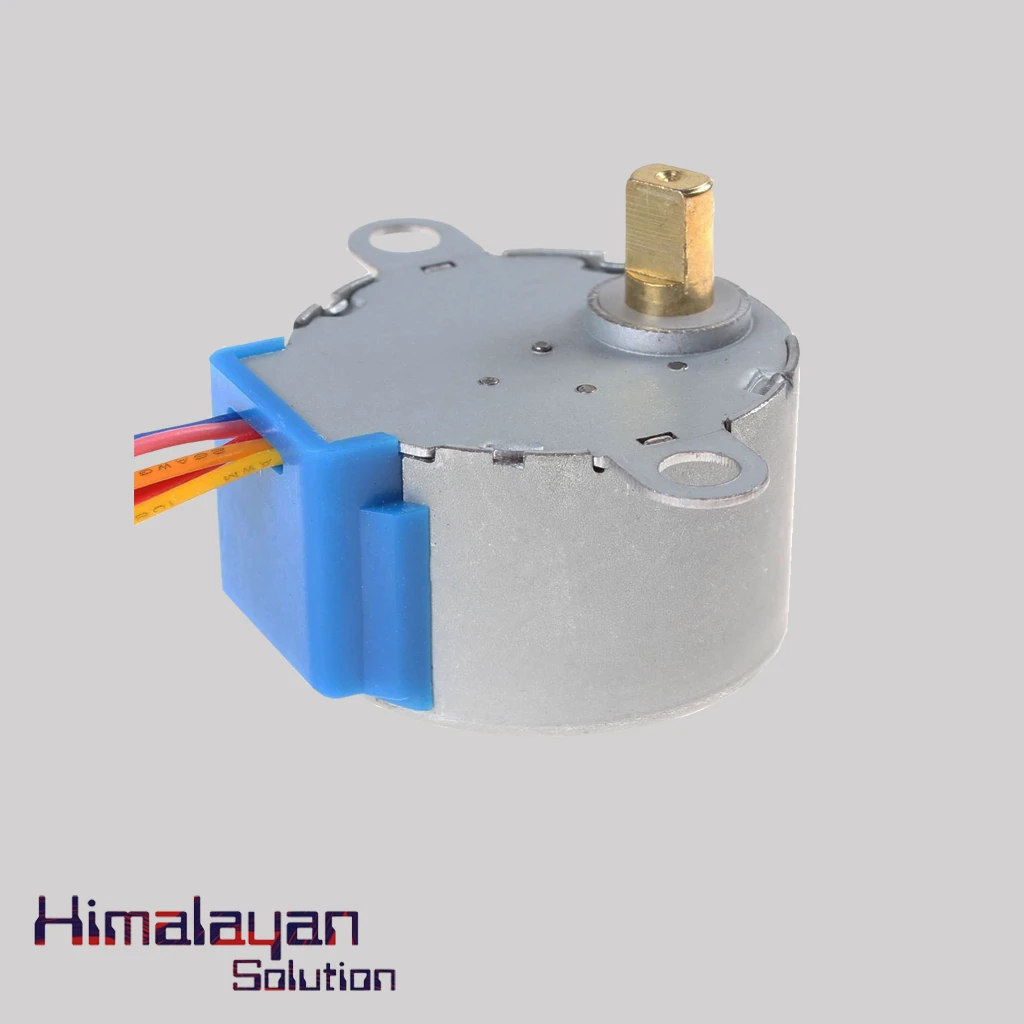

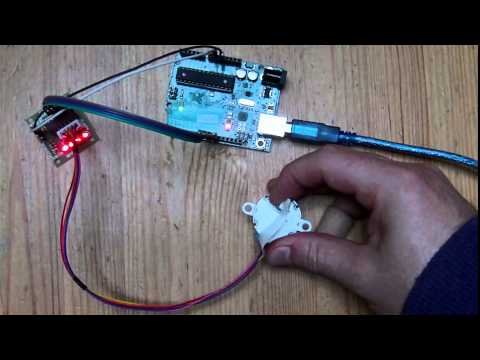

The 5V Stepper Motor 28BYJ-48 With Stepper Motor Driver Board based on ULN2003 driver board. It is high quality stepper motor. It is suitable for large range of applications requiring precise motion control. It can be applicable in normal printers, 3D printers, CNS, robotic arms and many more.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 5V Stepper Motor 28BYJ-48 With Stepper Motor Driver Board based on ULN2003 driver board. It is high quality stepper motor. It is suitable for large range of applications requiring precise motion control. It can be applicable in normal printers, 3D printers, CNS, robotic arms and many more.

Specifications

20
Name
5V Stepper Motor
Model
28BYJ-48
Driver Board
ULN2003
Number Of Phase
4
Speed Variation Ratio
1/64
Power Supply
DC 5V
Stride Angle
5.625° /64
Frequency
100Hz
DC Resistance
50Ω±7%(25℃)
Idle In-traction Frequency
> 600Hz
Idle Out-traction Frequency
> 1000Hz
In-traction Torque
>34.3mN.m(120Hz)
Self-Positioning Torque
>34.3mN.m
Friction Torque
600-1200 gf.cm
Pull In Torque
300 gf.cm
Insulated Resistance
>10MΩ(500V)
Insulated Electricity Power
600VAC/1mA/1s
Insulation Grade
A
Rise In Temperature
<40K(120Hz)
Noise
<35dB(120Hz,No load,10cm)
