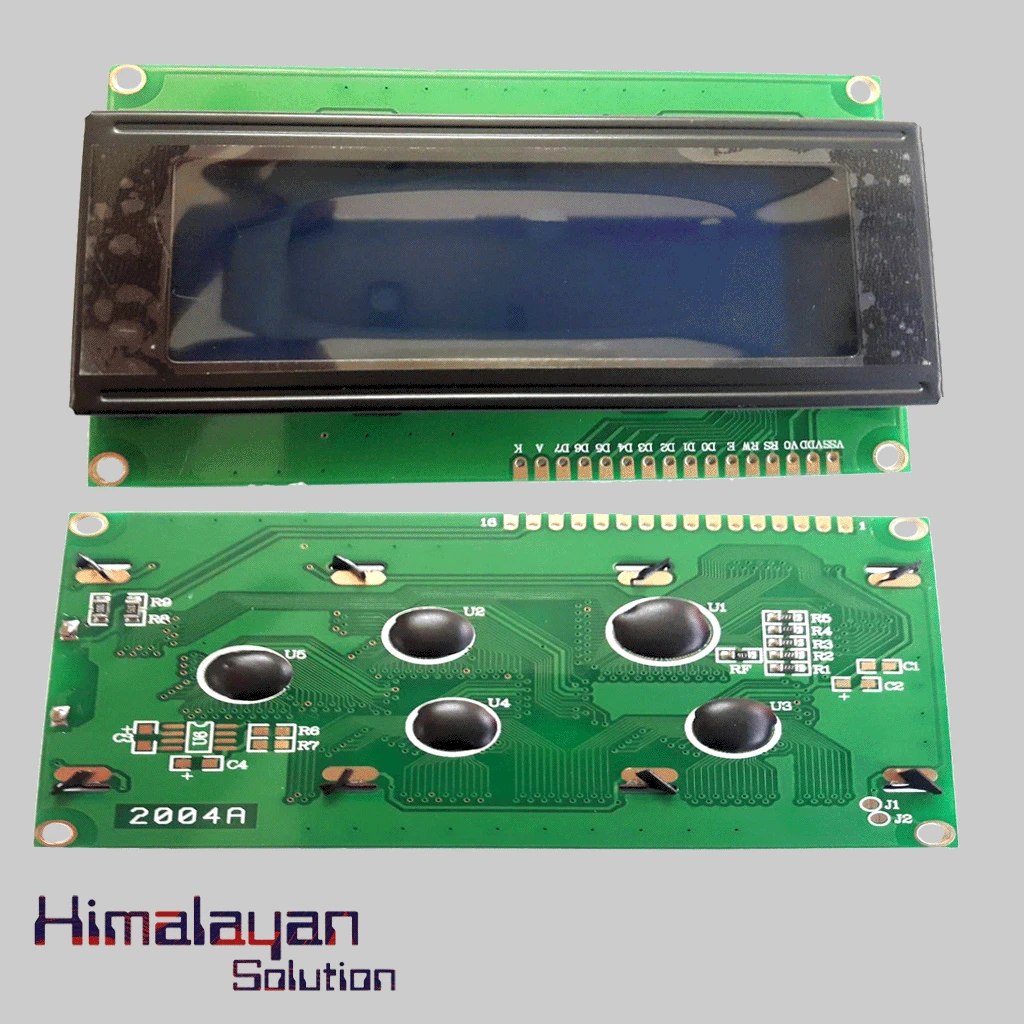

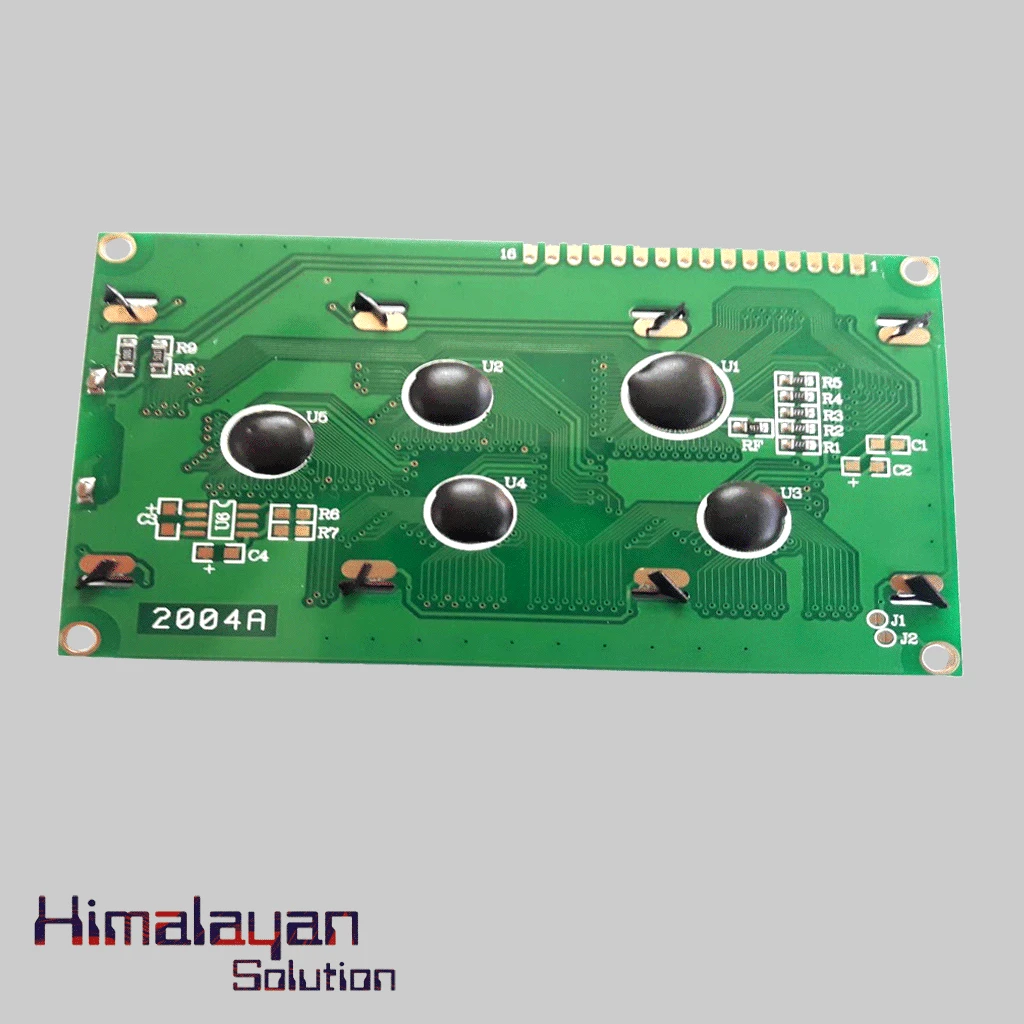

20* 4 LCD Module

0 /5.0 (0 reviews)
SKU HS168

20* 4 LCD module is 20 characters wide and row character LCD module made of high quality   material. It can be controlled with 6 digitals line. It has built in characters set of English / Japanese. It has 16 pins connector. It can be used in different projects. It has connection port of 0.1" pitch.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

20* 4 LCD module is 20 characters wide and row character LCD module made of high quality   material. It can be controlled with 6 digitals line. It has built in characters set of English / Japanese. It has 16 pins connector. It can be used in different projects. It has connection port of 0.1" pitch.

Specifications

15
Character LCD
20x4
Dots Includes Cursor
5x8
Power Supply
+5V
Driving Scheme
1/16 Duty Cycle, 1/5 Bias
Interface
WH2004G - 6800, WH2004G1 - SPI, WH2004G2 - I2C
Viewing Area
74.4 × 24.8 mm
Mounting Hole
82.0 × 53.0 mm
Character Size
2.95 × 4.75 mm
Display View Size
76mm x 26mm
Display Type
STN, Transflective, Positive, Y-G
Controller
SPLC780D1 or Equivalent Control
Interface
8-bit Parallel Interface
Operation Temperature
-10℃ to +60℃
Storage Temperature
-20℃ to +70℃
Size
87.0 × 58.0 mm
