Lcd Keypad Shield

0 /5.0 (0 reviews)
SKU HS626

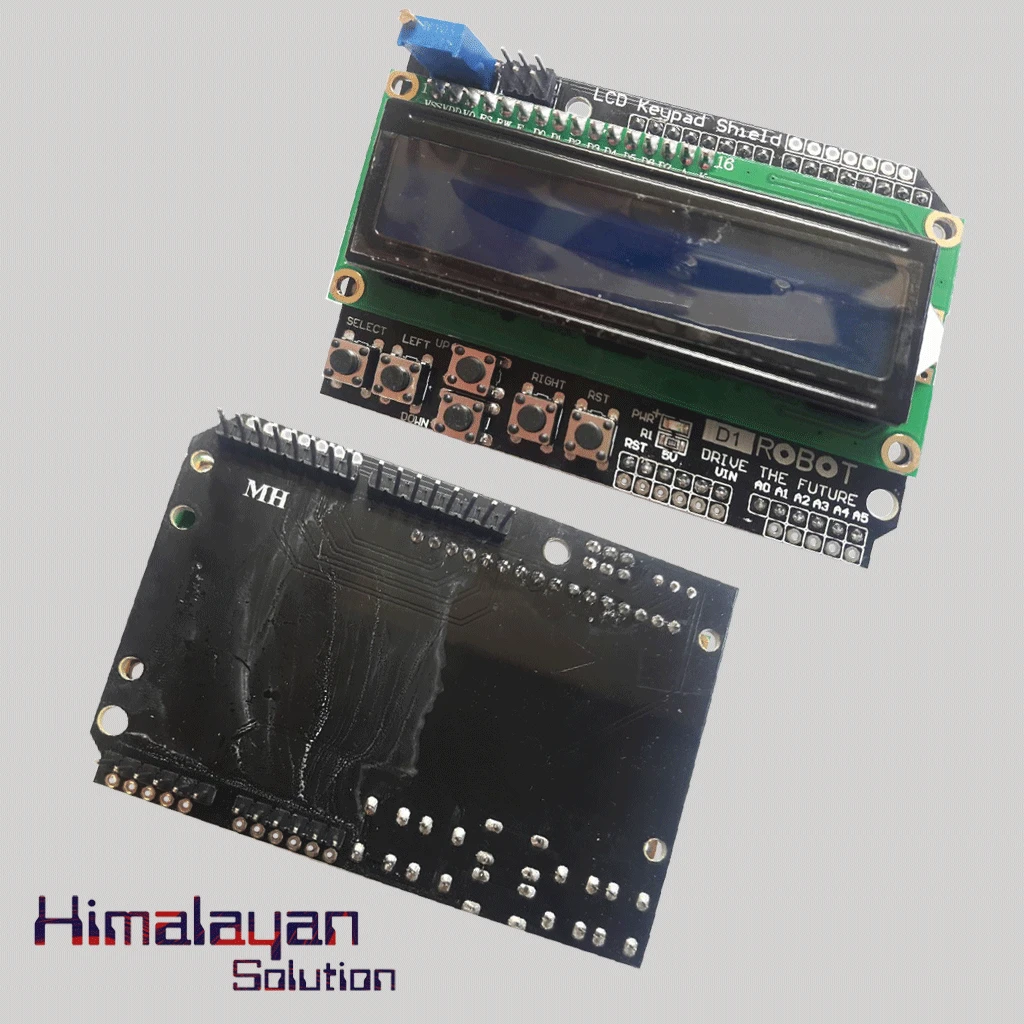

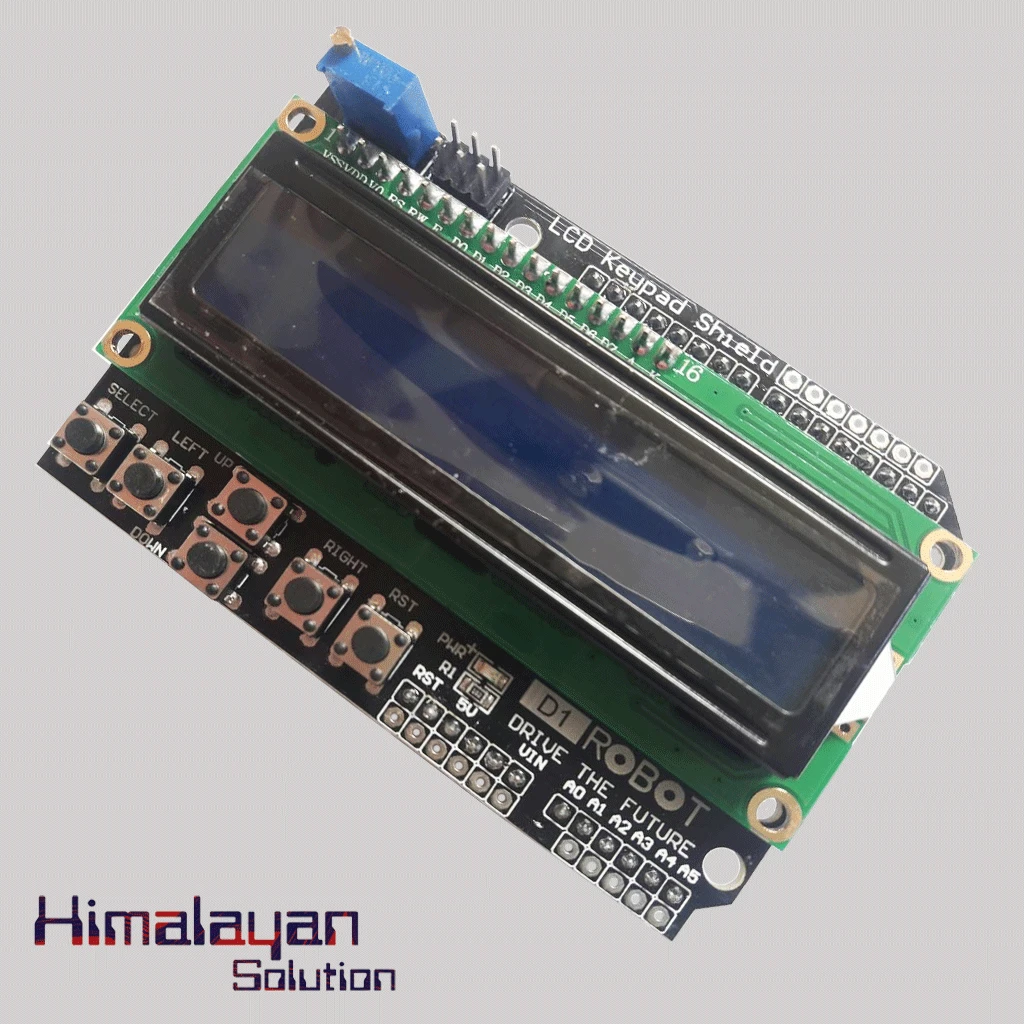

The LCD Key shield used 16 by 2 LCD display.  It is developed for arduino compatible boards. There are 5 keys and 1 reset button. The keys are used for up, down right, left and select. The backlight is adjusted with integrated the potentiometer. It use 4 bit Arduino lcd library. It can be used as display unit.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The LCD Key shield used 16 by 2 LCD display.  It is developed for arduino compatible boards. There are 5 keys and 1 reset button. The keys are used for up, down right, left and select. The backlight is adjusted with integrated the potentiometer. It use 4 bit Arduino lcd library. It can be used as display unit.

Specifications

10
Name
Lcd Keypad Shield
No Of Keys
6
White Character
1602
Lcd Module
16 by 2
Operating Voltage
5V
Size
80 x 58 mm
Pins Used D4-D7
LCD Data Transmission
Pins Used D8
Register Select
Pins Used D9
Enable Pin
Pins Used D10
Backlight Control
