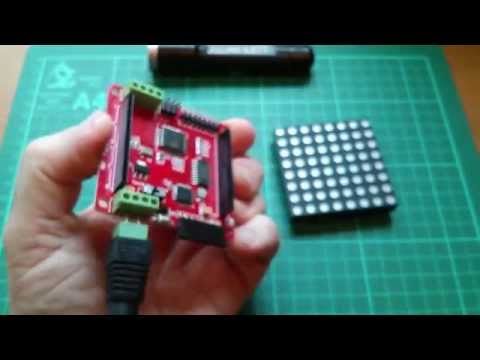

8*8 Matrix Controller RGB

0 /5.0 (0 reviews)
SKU HS622

The 8*8 Matrix Controller RGB Development Board is an Arduino compatible board that is specially designed to drive a 3 color RGB LED dot matrix displays. It uses an ATmega328p device loaded with the Arduino boot loader which allows the development board to be programmed directly from the Arduino development environment...

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

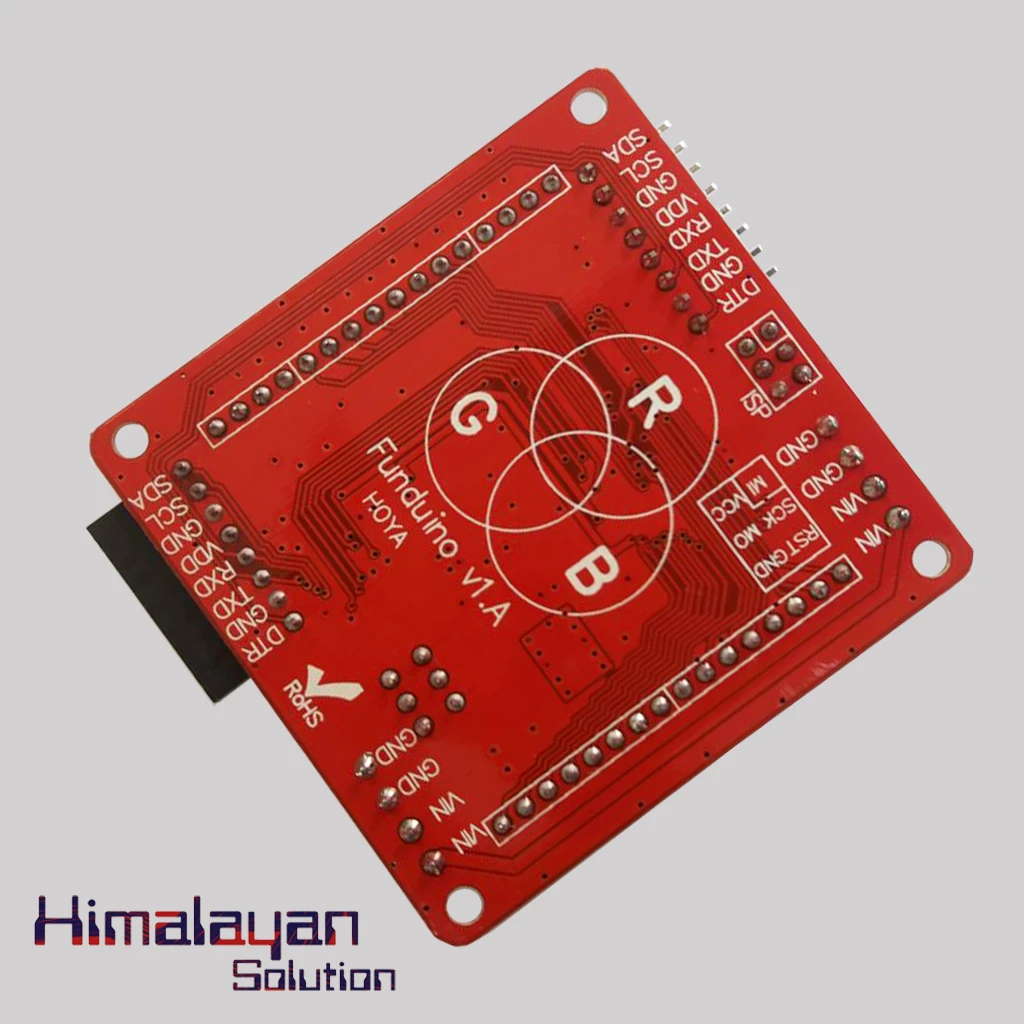

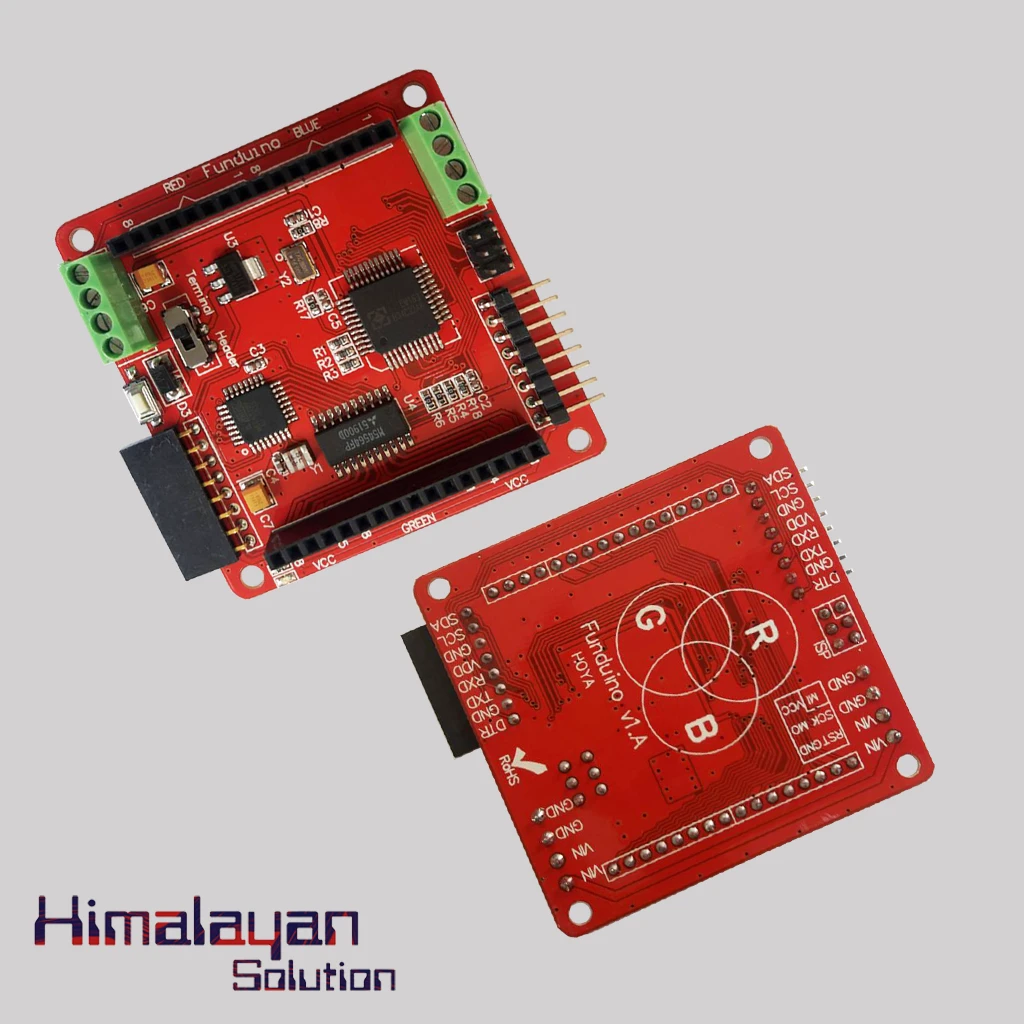

The 8*8 Matrix Controller RGB Development Board is an Arduino compatible board that is specially designed to drive a 3 color RGB LED dot matrix displays. It uses an ATmega328p device loaded with the Arduino boot loader which allows the development board to be programmed directly from the Arduino development environment (via a suitable TTL serial adaptor). It has various features like: - Full 24bit RGB color control with 6 bit color correction, Includes hardware constant current PWM driver, Serial and I2C interfaces allowing for daisy-chaining of additional modules etc. It can be suitable for various applications like: - Data logging, Remote sensor node, Robotic control and many more.

Specifications

10
Name
8*8 Matrix Controller RGB
Microprocessor
ATmega 328P
Power Supply Range
+ 5V to + 5.3V
Operating Current
Max 300 mA
Operating Temperature Range
-10°C to + 50°C
Material
FR-4 Epoxy Glass Fiberboard
Program Interface
UART/ISP
Communication Protocols
UART/I2C
Size
Approx. 6x6x1.2cm
Weight
23 g
