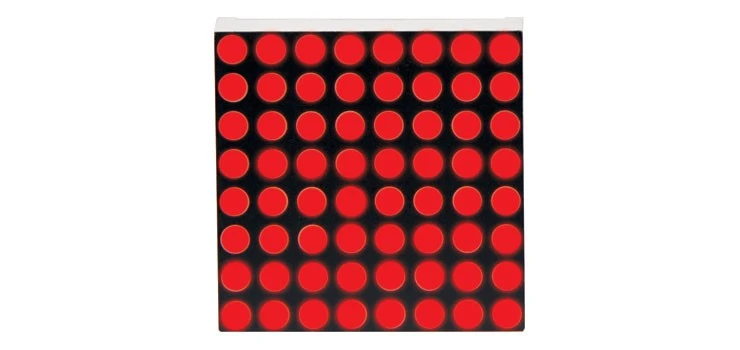

8x8 Red LED Matrix Display

0 /5.0 (0 reviews)
SKU HS512

The 8 x 8 RGB LED Dot Matrix Module(Red) is LED display module that emits red color. It is suitable for both the commercial and Industrial sectors. It can be applicable in audio equipment, Instrument panels, digital read out display and many more.

Read more
seller

Inhouse product

  • warranty check circle Cash on delivery available

The 8 x 8 RGB LED Dot Matrix Module(Red) is LED display module that emits red color. It is suitable for both the commercial and Industrial sectors. It can be applicable in audio equipment, Instrument panels, digital read out display and many more.

Specifications

13
Name
8*8 Matrix Board Red
Emitted Colour
Red
LED Size
3mm
Peak Wave Length (nm)
625 ~ 630.
Forward Voltage (V)
2.1 ~ 2.5V
Reverse Current (uA)
<= 20
Max Power Dissipation(PM)
40mW
Max Peak Forward Current(IFP)
100mA
Max Continuous Forward Current(IFM)
20mA
Lead Soldering Temperature
260 Degree (<5Sec)
Operating Temperature Range
-30°C ~ +70°C
Preservative Temperature Range
-40°C ~ +85°C
Size
32mm X 32mm X 8.0mm
